Product Description

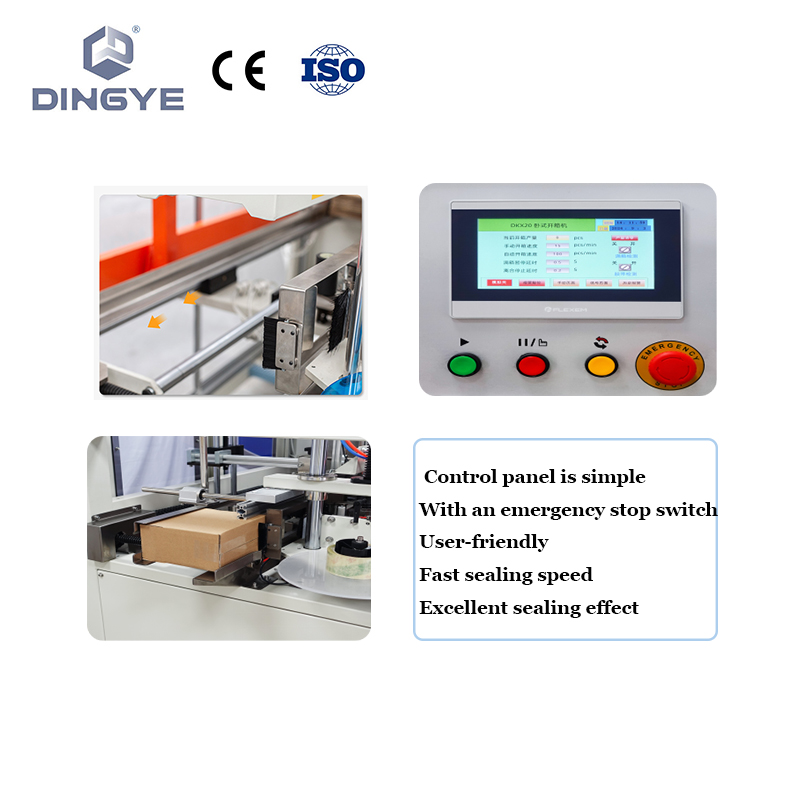

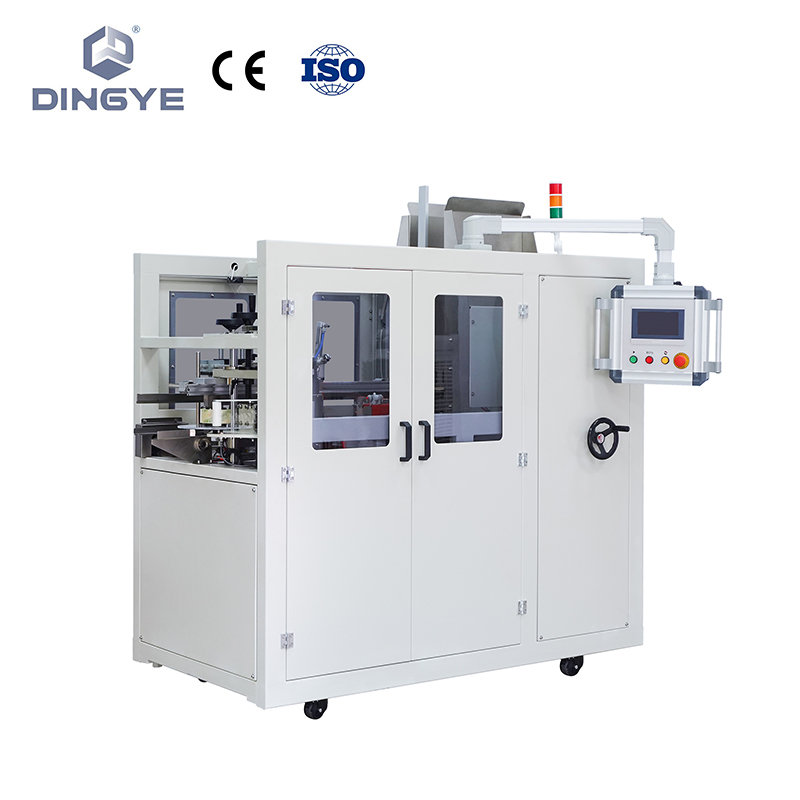

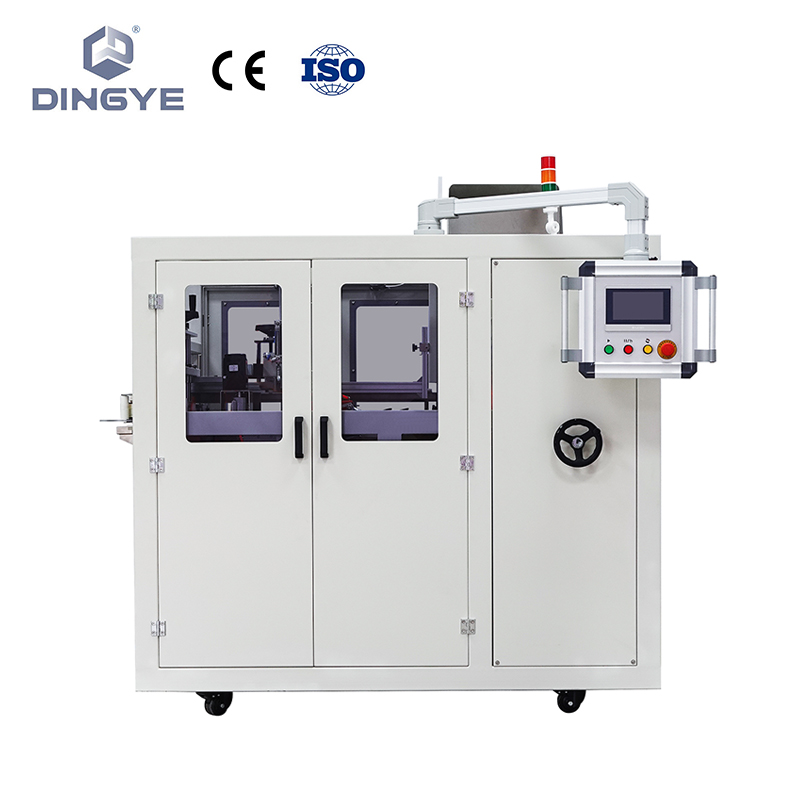

DKX20 High-speed horizontal carton erector. The machine features touch-screen menu operation, making it suitable for automatic box erection, bottom folding, and bottom sealing functions for various cartons.
It can connect the case packing machine and the case sealing machine to form a production line of opening, packing, and sealing.
The machine speed is up to approximately 30 cases per minute. It has a wide range of applications, including e-commerce sealing, factory sealing, warehouse sealing, and express cloud warehouse sealing.
It can connect the case packing machine and the case sealing machine to form a production line of opening, packing, and sealing.
The machine speed is up to approximately 30 cases per minute. It has a wide range of applications, including e-commerce sealing, factory sealing, warehouse sealing, and express cloud warehouse sealing.
Product Parameters
| Model | DKX20 |
| Voltage | 220V50HZ/60HZ |
| Main Motor Power | 750W |
| Capacity | about 70boxs/minute |
| Carton size | L130~290mm,W80~180mm,130≤H+W/2≤290mm |
| The height of the worktable | 960~1000mm |
| Necessary pressure | 0.5-0.7MPa |
| Air consumption | about 200L/min |
| Compressor power | 3HP |
| Machine weight | 600kg |
| Machine size | L1900*W1200*H2000mm |
