Product Description

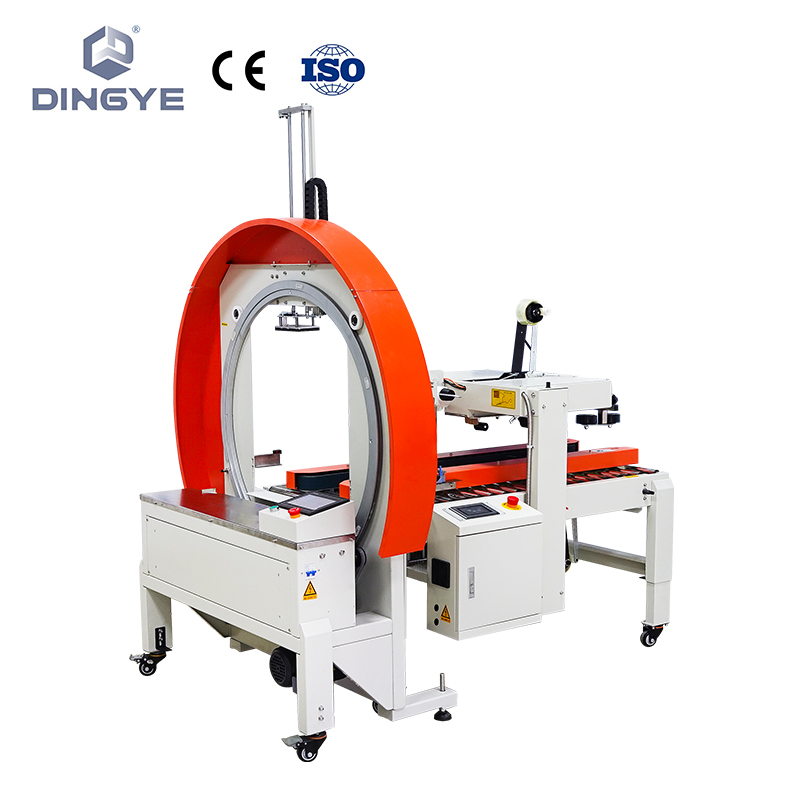

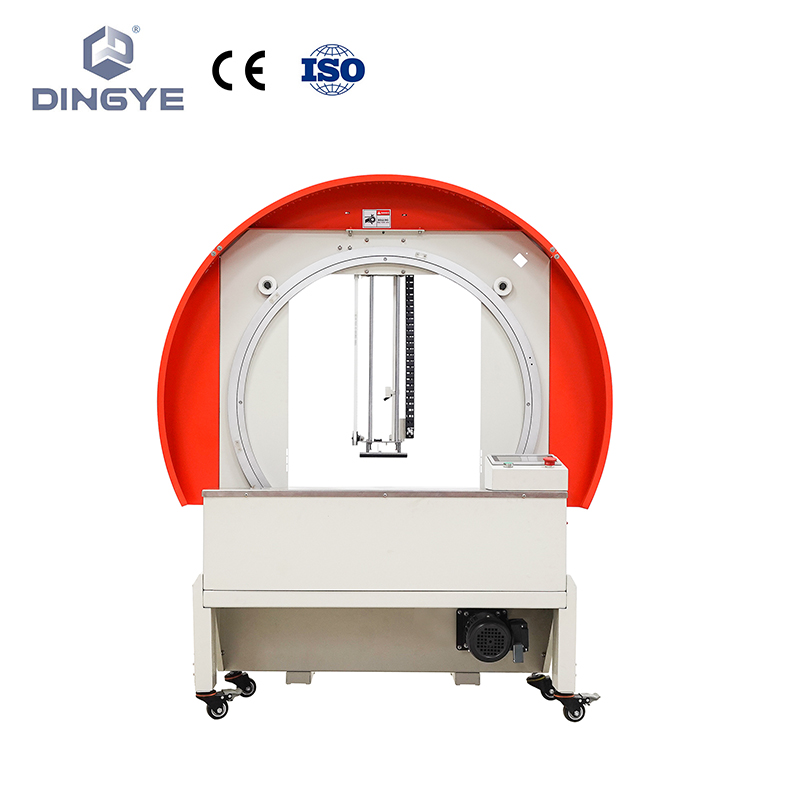

FXW6060 Wapping and Sealing machine(Electric Version)
- Adopting all-electric control and a unique tape replacement mechanism effectively enhances machine performance and production efficiency.
- FXW6060 can operate as a stand-alone unit or be integrated into a production line.
- The turntable is equipped with carton positioning wheels.

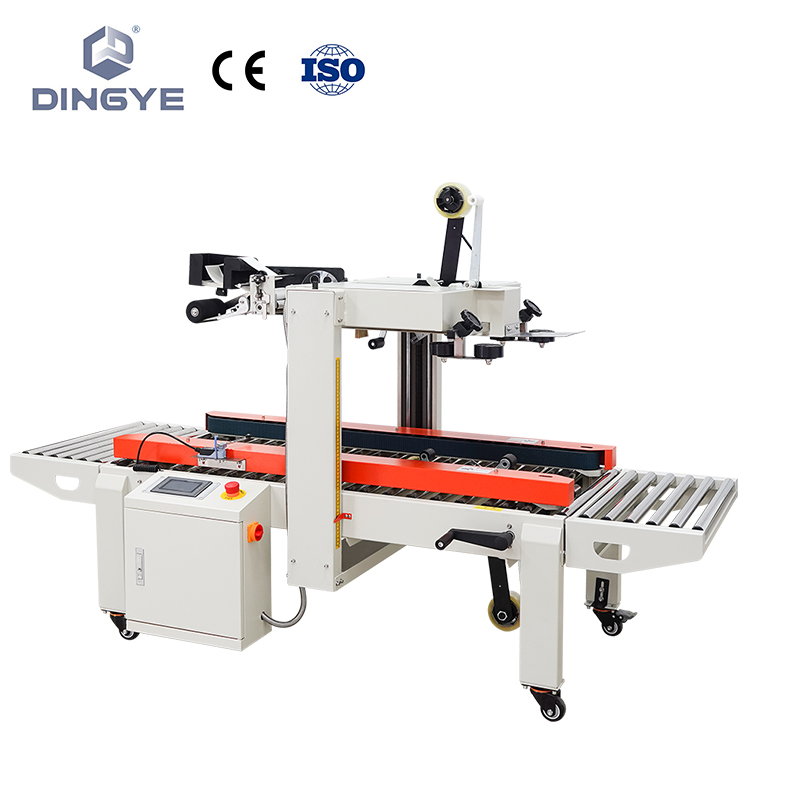

The DFXC5050XI PLC-type carton sealing and labeling machine adopts adhesive tape and universal folded packing slips to seal cartons and apply labels. It is capable of completing bottom/top sealing and label application in one pass and is widely applicable to manufacturing industries such as home appliances, textiles, food, cosmetics, daily necessities, pharmaceuticals, and chemicals.
Product Parameter
| Model | FWX6060 |
| Voltage | 220V50HZ/60HZ |
| Power | 450W |
| Capacity | 0-12cartons/min |
| The width of the adhesive | 45mm |
| The height of the worktable | 700~750mm |
| Max.. packing dimension | L∞ W500*H500 mm |
| Min. packing dimension | L100*W80*H100 mm |
| Machine Size | L718*W1386*H2093 mm |
| Model | DFXC5050XI PLC type |
| Voltage | 220V50HZ/60HZ |
| Power | 500W |
| Capacity | 20cartons/min |
| The width of the adhesive | 45mm |
| The height of the worktable | 600·700mm |
| Max. packing dimension | L∞ W500*H500 mm |
| Min. packing dimension | W80*H90 mm |
| Way of transmission | Side conveyor |
| Label diameter | Universal Folded Label width range 20-100mm |
| Machine Size | L2090*W945*H1460 mm |
