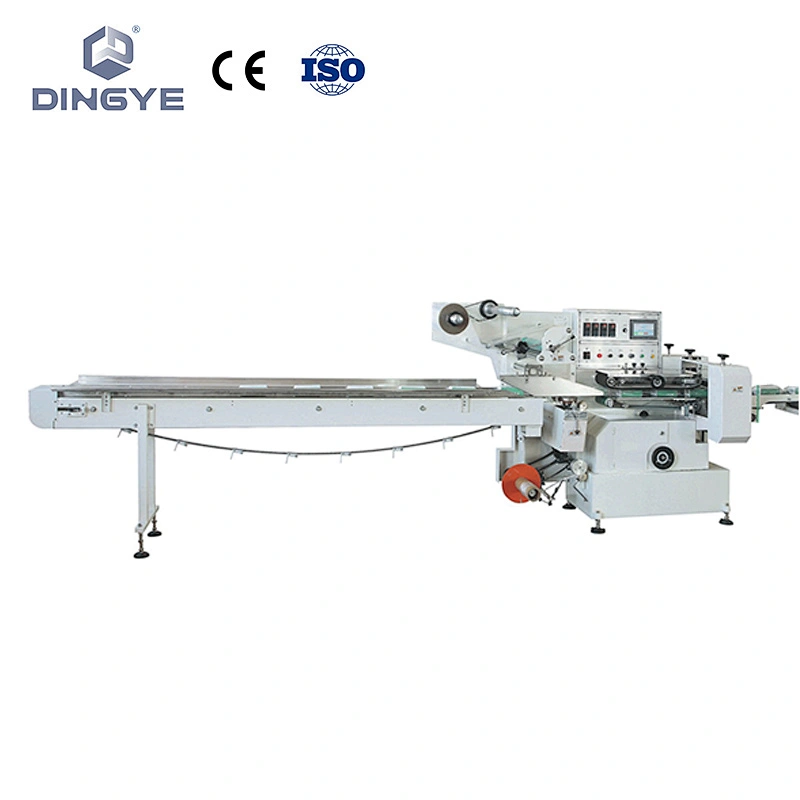

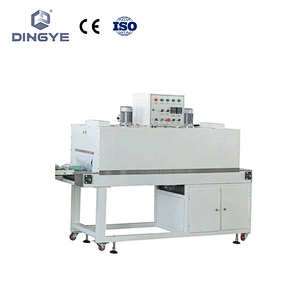

Automatic pillow packing machine & Shrinking Tunnel
Automatic pillow packing machine & Shrinking Tunnel
Automatic pillow packing machine & Shrinking Tunnel
Automatic pillow packing machine & Shrinking Tunnel
Automatic pillow packing machine & Shrinking Tunnel
Automatic pillow packing machine & Shrinking Tunnel
Automatic pillow packing machine & Shrinking Tunnel

Automatic pillow packing machine & Shrinking Tunnel

Model NO.
ZSJ-590P & BS-590P
Quantity:
ZSJ-590  pillow shrink  packing machine, Max material size (L*W*H: 500mm*280mm*100mm)
Two operating workers, equipment Packing speed:50-120 bags/min, / Production rate: (skilled workers to operate in accordance with the degree) (packaging process annex Video)

Acceptance criteria:
1. Packaging film maximum width 600mm,
2. PID automatic temperature control system quickly and precisely
3. Built-in LED display packaging errors. Bag length adjustment range of 110-500mm, width .80-280mm. Height 10-110mm
4. Adjustable system with controller.
5. Single opening and closing wheel formula packer.
6. The closure preheating device.
7. Power 4.7Kw Voltage .220/380V ..
8. Thermal transfer coder
9. Production counts. Fault display. Alarms. Detection ..allowable packaging range. Size can be adjusted ..
10. Packing speed 50-120 packets. / Min.
11. Cutting way: hand single discharge.
12. Main motor control: Servo Motor
13. System: PLC software control program host computer
14. Equipment failure rate 360 hours of continuous operation. No instability phenomenon
15.No scratches finished packaging film
16. Continuous cut or saw even pack can be switch
 Performance and Features
Machine Nameshrink packing machine
    TypeZSJ-590
  Capacity50-120 bags/min
structureAdjustable bag maker. Cutting bag resizable. Suitable for different specifications of materials
rolling controlInverter servo motor control, after the shutdown, is always parked in the station's most high-end, non-stick knives. Do not waste packaging materials and working time to re-adjust the device. Each adjusted once the packaged samples can save one-meter packaging materials (compared to other machines
