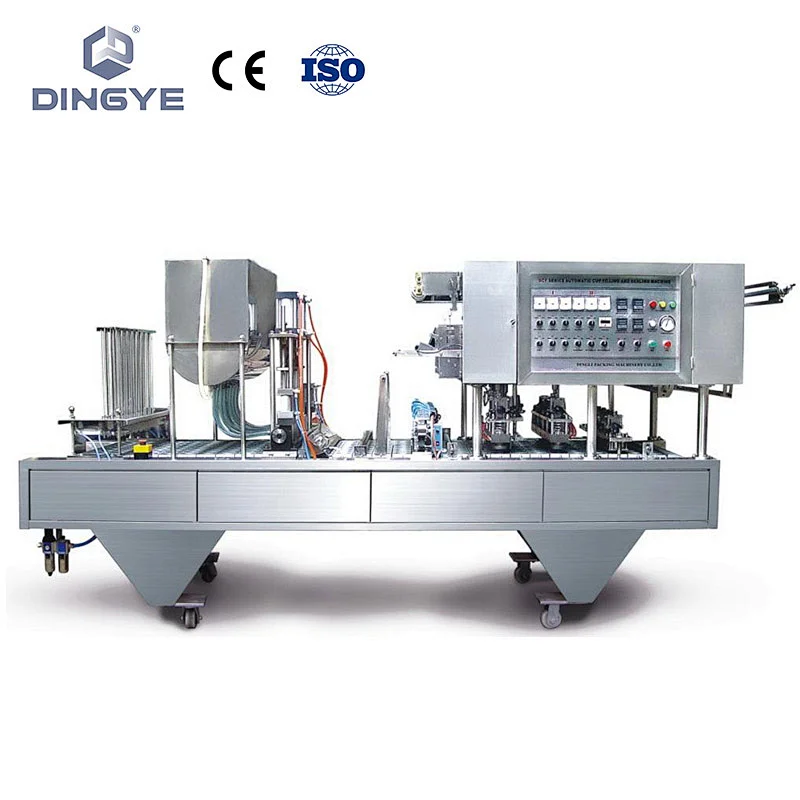

CFD-4 Automatic cup filling and sealing machine

Model NO.
CFD-4
Quantity:

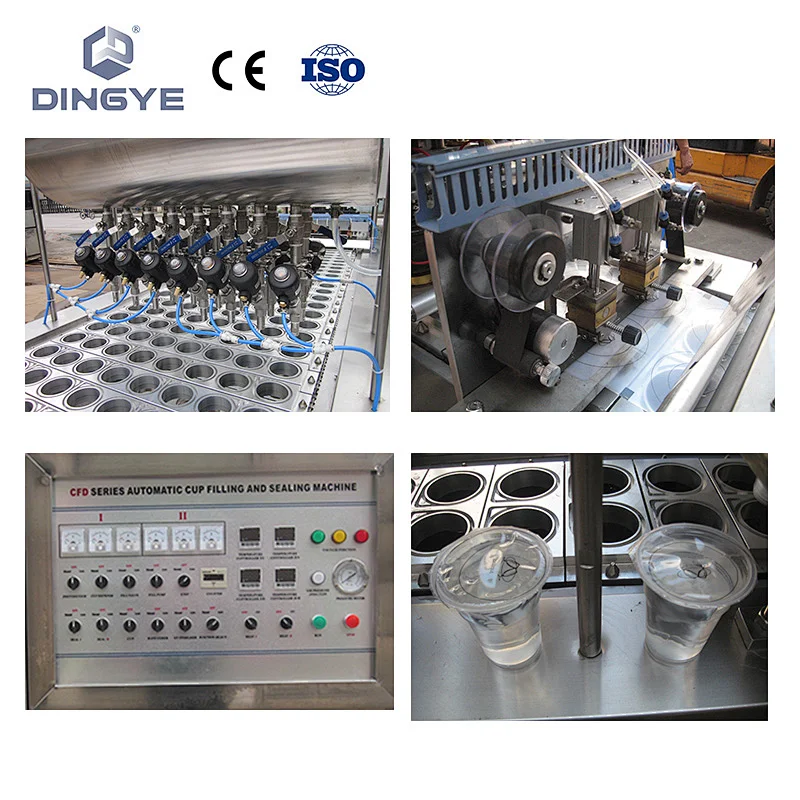

CFD Series automatic cup filling and sealing machine is used to fill and seal various plastic cups with free flowing liquid or paste product. It can automatically complete the process of filling, sealing, film cutting, code printing, sterilizing in ultraviolet radiation and cup-falling in one operation. It has function of automatic film position regulation.

The machine adopts pneumatic principle and applied for big productivity. Famous brand “OMRON” and “AirTAC” are applied to electric components and pneumatic elements.

Specification:

Model

CFD-2

CFD-4

CFD-6

CFD-8

CFD-16

Power supply

380V/50-60HZ

Power

3.5kw

3.5kw

3.5kw

4.5kw

6.5kw

Filling range

100-500 ml

100-250 ml

Capacity

1800-2200 cups/hr

3500-4500 cups/hr

5000-6500 cups/hr

7000-9000 cups/hr

14000-16000 cups/hr

Air supply

0.4m3/min

0.4m3/min

0.5m3/min

0.6m3/min

0.8m3/min

Dimension

260*70*175cm

315*90*175cm

315*115*175cm

395*130*175 cm

520*130*175cm

Weight

500kgs

700kgs

800kgs

1000kgs
