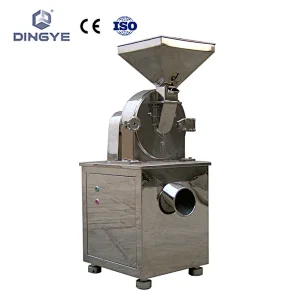

Crusher

The crusher is widely used for material crushing in the industries of pharmaceutics, chemical and foodstuff, etc.

Working Principle
The machine uses the high-speed relative motion of the active fluted disc and the fixed fluted disc to impact and crush the raw matreial. The different size of granules can be acquired by changing different screen.The whole machine is designed according to GMP standard and is made of stainless steel. The machine has the advantages of simple structure, low energy consumption, easy cleaning and is an ideal crushing equipment.
Technical Parameters

Model	C-15B	C-20B	C-30B	C-40B	C-50B	C-60B	C-80B	C-100B
Production capacity(kg/h)	10-150	60-150	100-300	160-800	200-1000	250-1500	350-2000	500-3000
Feeding size(mm)	<6	<6	< 8	< 10	<12	< 15	< 18	< 20
Fineness of products(mesh)	20-120	20-120	20-120	20-120	20-120	20-120	20-120	20-120
Motor power(kw)	2.2	4	5.5	11	15	22	30	37
Spindle speed(r/min)	6000	4500	3800	3400	3000	2800	2400	2000
Overall dimension(mm)	550*400*850	600*550*1250	700*600*1450	900*800*1550	1050*850*1750	1100*900*1880	1200*950*2000	1350*1000*2100
Weight(kg)	150	280	340	450	550	670	900	1300
