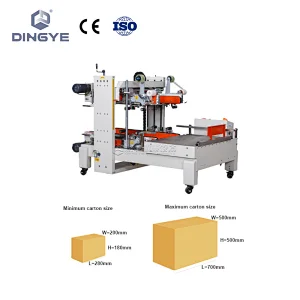

DFXS-7050 Automatic edges carton sealer

Product Description

DFXS-7050 automatic carton sealing machine is mainly used in sealing and packing cartons, which can be used either independently or as a necessary part of a production line. This machine adopts pneumatic method and adjust packing size automatically according to carton. So it has much higher efficiency than manual and semi-auto carton-sealing machine.
Additionally, pneumatic operation principle ensures the stable performance. The function of adjustment of cylinder pressure avoid from damaging carton. The cylinder and other pneumatic elements adopts AirTac products. The machine is widely used in the field of electrical, domestic, textiles, foodstuffs, general merchandise, medicine and chemical industries.

Features:
1. Sealing different sizes of cartons automatically, without adjustment by hands.
2. The sealing pressure is adjustable, according to the different materials of cartons;
3. The pushing strength of the movement arms on two-side can be regulated according to the weight of cartons;
4. Two-side movement arms adjust the objects packaged to the right position automatically;
5. The movement frame is driven by double cylinder, smart and smoothly, using long time;
6. Pneumatic and electric parts combine perfectly, with operation convenient and simple;
7. The fine structure and the harmonious color bring pleasure to both the eye and the mind.

Specification:

Model	DFXS-7050
Power supply	AC220V/50,AC110V/60Hz 260W
Max. packing dimension	500(W)* 500(H) mm
Min. packing dimension	200 (W)*200 (H)*200 (L)mm
speed	18m/min
Air Pressure	2/3L,5kg/cm3
Width of adhesive tape	48mm. 60mm. 76mm
Height of working table(MM)	550-750MM
Machine size	1955(L)*1340(W)*1330 (H)mm
Adhesive Tape Used	BOPP, PVC, Kraft Paper Tape
Weight of Package (kg)	2.5-30
Machine weight	180 KG
