I. Applications:

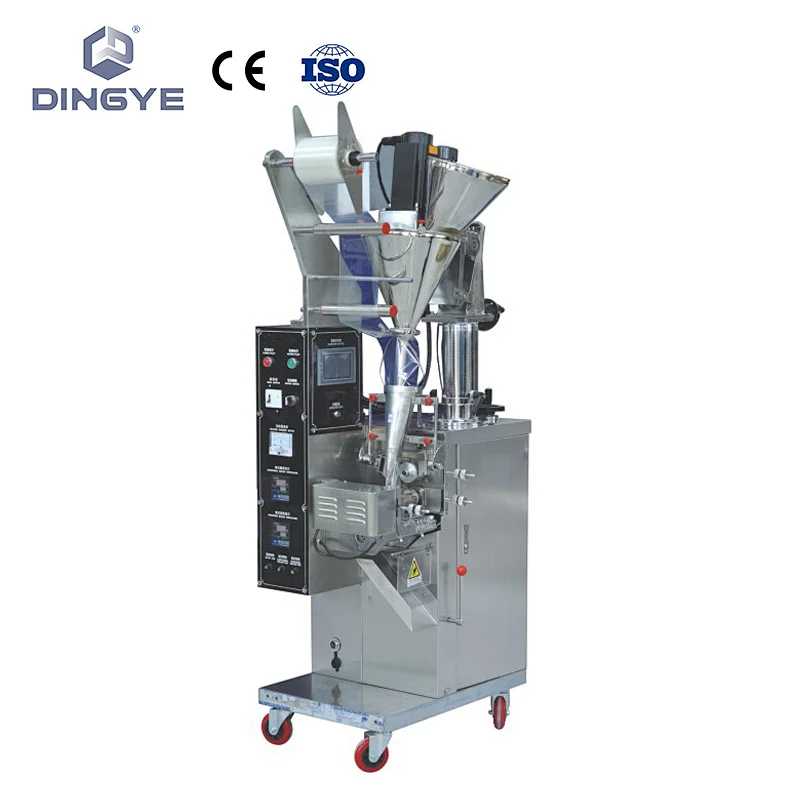

The machine is designed and manufactured specially for powdery and super fine powdery products Driven by servomotor, the auger is rotating to fill products; furthermore, the filling range can be adjusted automatically through computer.The processes of bag making, measuring, filling, sealing, cutting, counting and hot pressing codes can be done automatically. Packing material include several kinds of heat-seal lamination, such as PET/plated AL/PE, PET/PE, NYLON etc.
Technical Data
Depending on product property and filling range
3 sides sealing samples:
4 sides sealing sample
The machine is designed and manufactured specially for powdery and super fine powdery products Driven by servomotor, the auger is rotating to fill products; furthermore, the filling range can be adjusted automatically through computer.The processes of bag making, measuring, filling, sealing, cutting, counting and hot pressing codes can be done automatically. Packing material include several kinds of heat-seal lamination, such as PET/plated AL/PE, PET/PE, NYLON etc.
Technical Data
| TYPE | DXDF-40II |
| Bag size | L55-110 /W30-80mm |
| Capacity | 50-110 bags/min |
| Filling range | 5-40 ml |
| Power | 220V，50HZ，1.5KW |
| Weight | 350 KGS |
| Dimension（L*W*H） | 600X790X1780 mm |
3 sides sealing samples:
4 sides sealing sample
