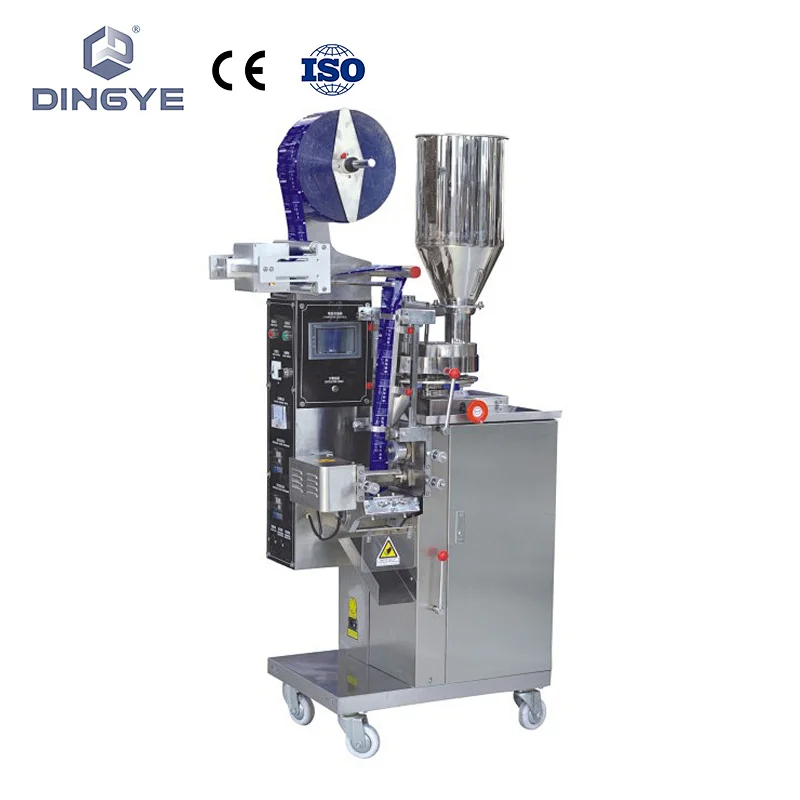

DXDK-40 Automatic granule packaging machine

Model NO.
DXDK-40
Quantity:
Ⅰ、Applications:
The machine is suitable for packing non sticky, bulk or granular material, such as medical pills, food stuffs, plant seeds, washing powder, coffee, sugar, desiccant etc. The integrated processes of bag making, measuring filling, sealing cutting, counting and hot pressing codes can be done automatically. Packing material include several kinds of heat seal lamination, such as PET/plated AL/PE, PET/PE, PAPER/PE,NYLON etc.

II、Technical Data
TYPEDXDK-40II
Bag sizeL55-110 /W30-80mm
Capacity50-110 bags/min
Filling range5-40 ml
Power220V50HZ1.5KW
Weight350 KGS
DimensionL*W*H600X790X1780 mm(L*W*H)

III、Features:
1. All stainless steel cover meets to GMP standard.

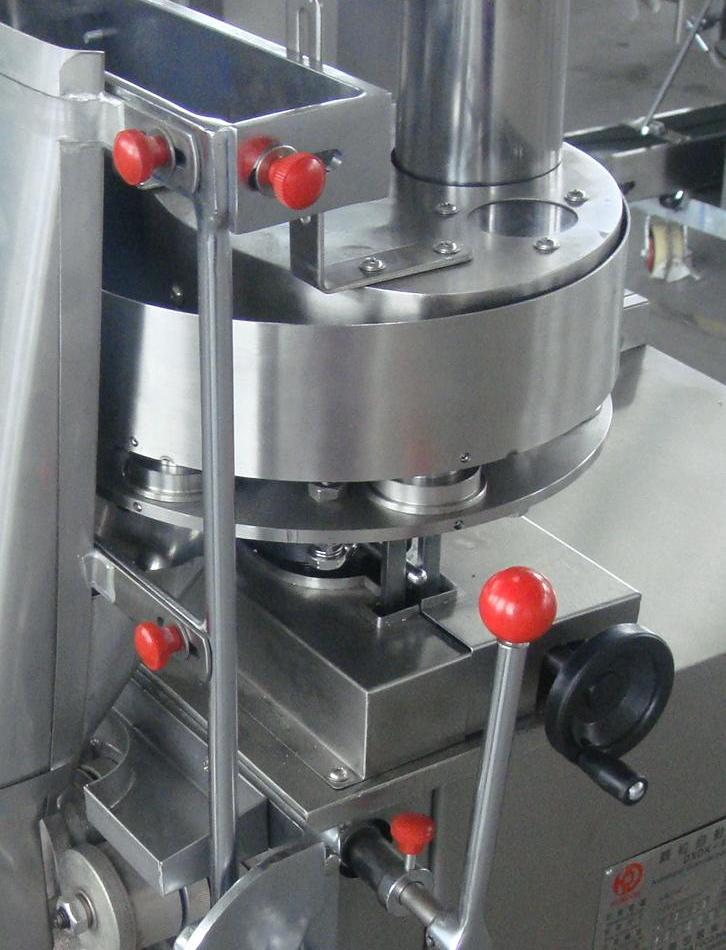

2.special design on measuring device.

3. Automatic adjustment of pouch size and filling range on touch screen

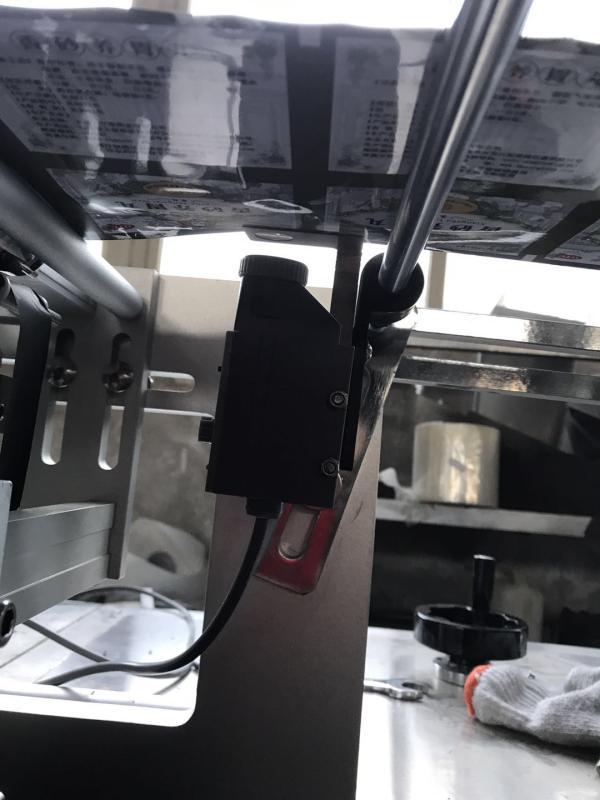

4. Photocell controller is easy to manipulate.
5. Automatic self support lubricating system, the machine can work 24 hours and the maximal capacity is 60 bags/min.

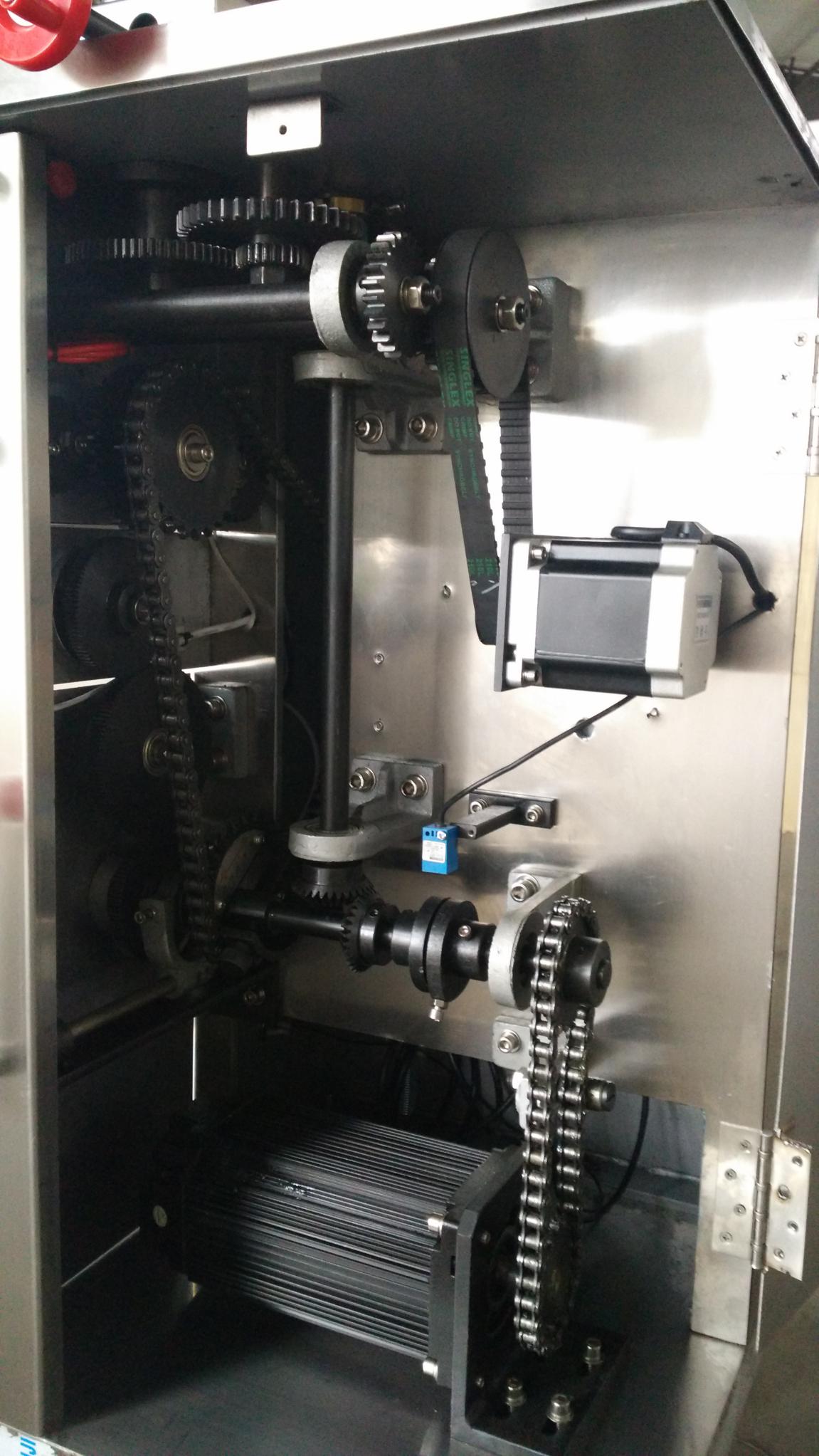

It adopts main servo motor to control

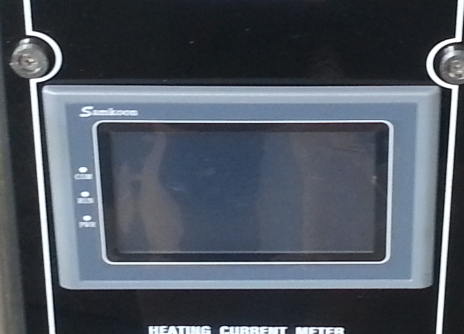

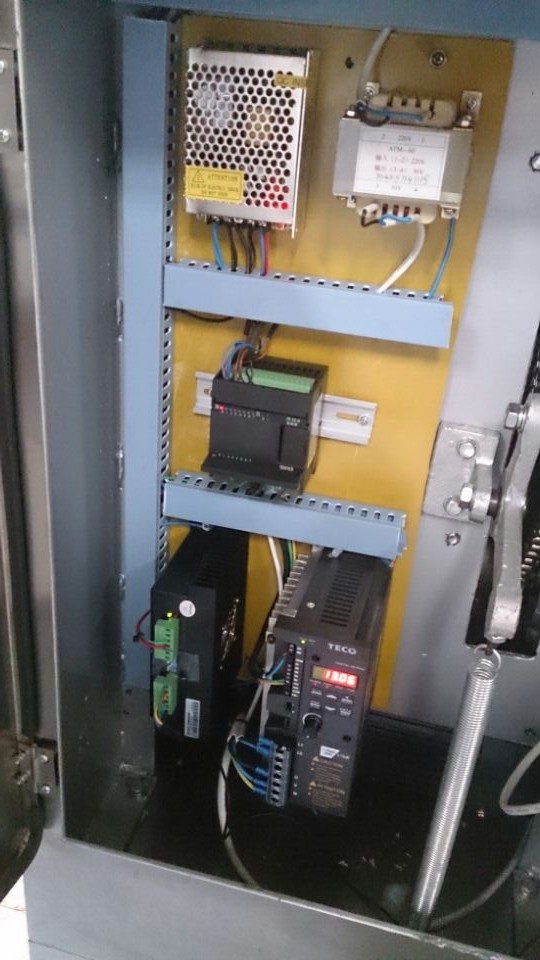

6. The operation facility is controlled by American intel computer, all function is displayed with touch screen.

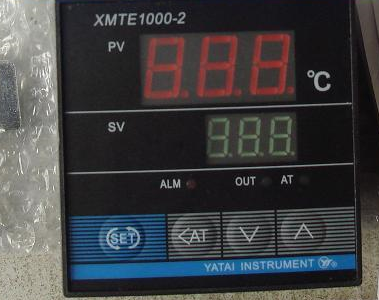

7. Minimum sealing temperature variation employs PID temperature, the tolerance is controlled by ± 2%.

8. Along with assembling automatic no packing alarm system, help user to economize cost.
9. Equipped with easy open system.

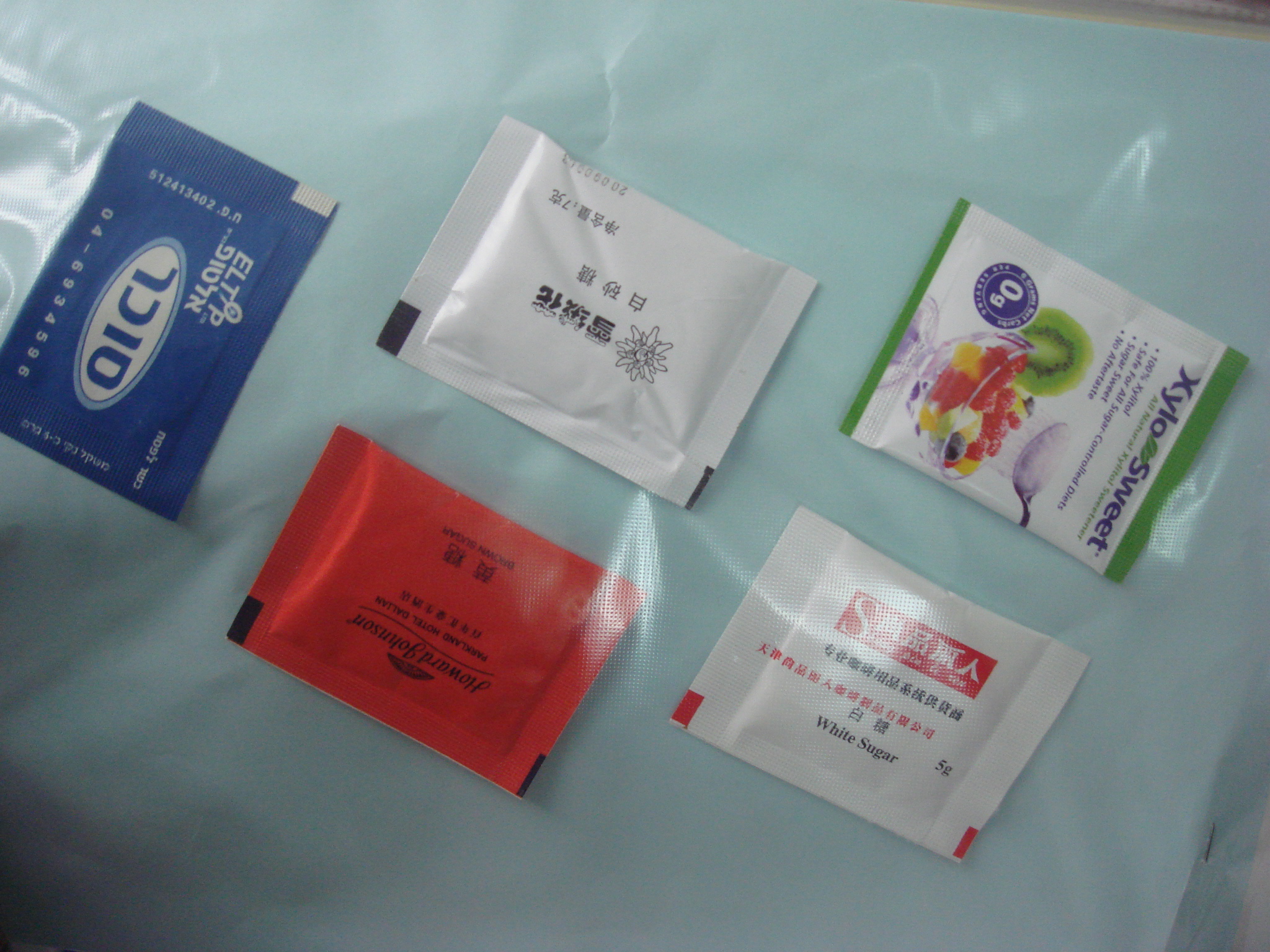

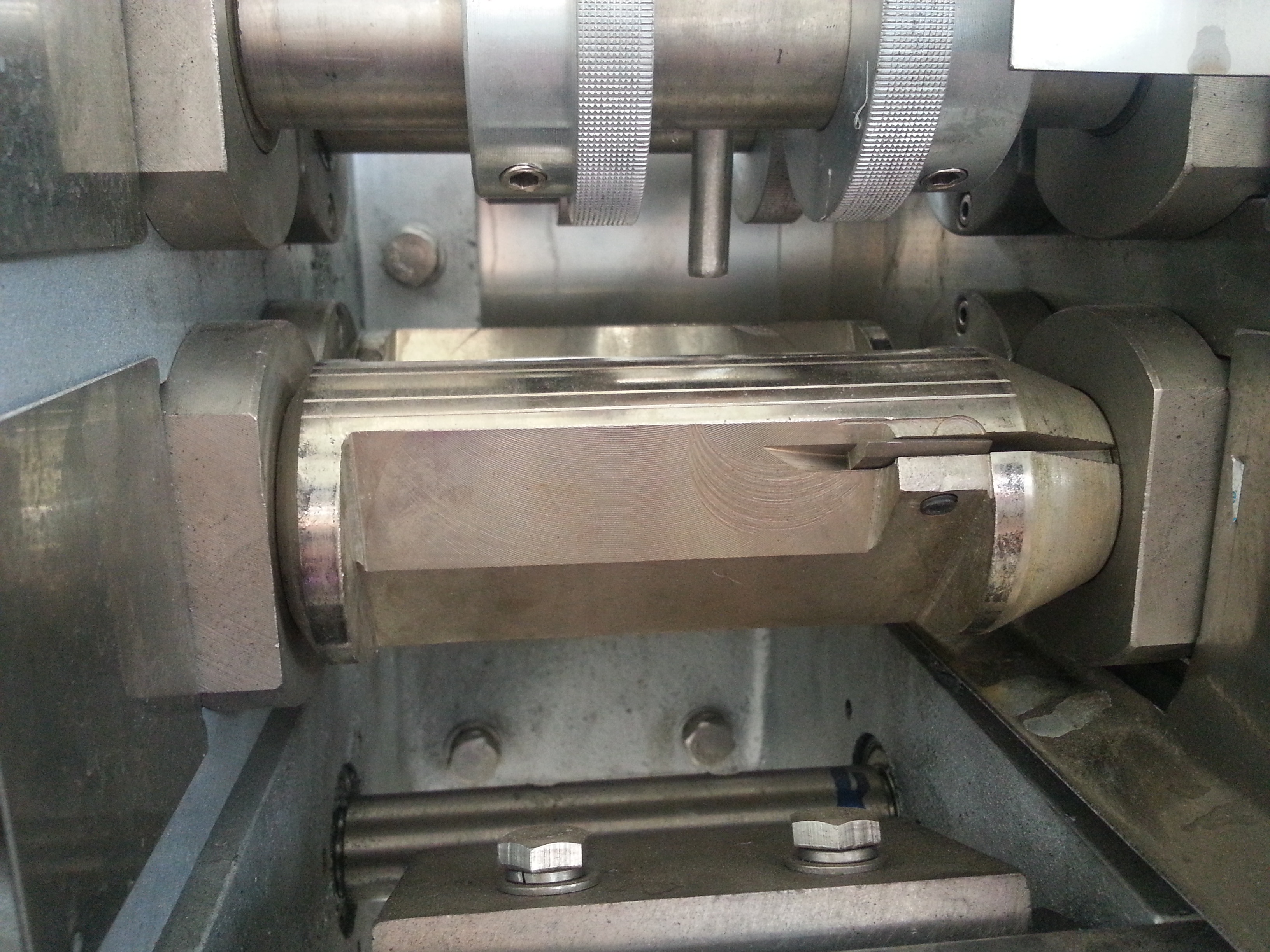

IV.Sample display
