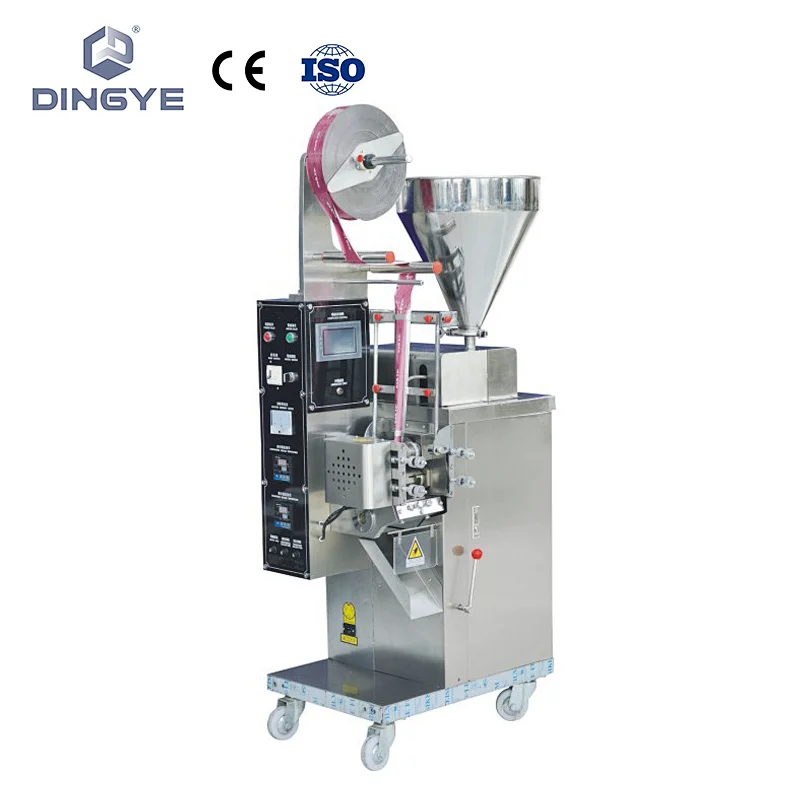

DXDY-150 Automatic Liquid/Paste Packaging Machine

Model NO.
DXDY-150
Quantity:
Ⅰ、Applications:
The machine is suitable for automatically packaging of viscous products with free-flowing such as shampoo ,lotion, edible oil and broth, etc. The integrated processes of bag making, measuring filling, sealing cutting, counting and hot pressing codes can be done automatically. Packing material include several kinds of heat seal lamination, such as PET/plated AL/PE, PET/PE, PAPER/PE,NYLON etc.

Ⅱ、Features:
1. All stainless steel cover meets to GMP standard.
2. Equipped with antipollution and dustproof device.
3. Automatic adjustment of pouch size and filling range.
4. Photocell controller is easy to manipulate.
5.The horizonal sealing uses high temperature resistant bearing which will ensure the continuous operation of the machine without filling the oil regularly.
6. The operation facility is controlled by American intel computer, all function is displayed with digital screen.
7. Minimum sealing temperature variation employs PID temperature, the tolerance is controlled by ± 2%.
8.Sealing part: roller spend process is special designed and the effect of sealing is very well
9. Equipped with easy open system.
10. have gained the European CE certification

Ⅲ、Option
1.Ink printer

Ⅳ、Technical Data
TYPEDXDY-150
Bag sizeL70-150 /W70-115mm
Filling productLiquid-Y1;   Paste-Y2
Capacity28-55 bags/min
Filling range30-120 ml
Power220V,50HZ,1.9KW
Weight350 KG
Dimension700X 800X1900 mm (L*W*H)

V. Sample display
