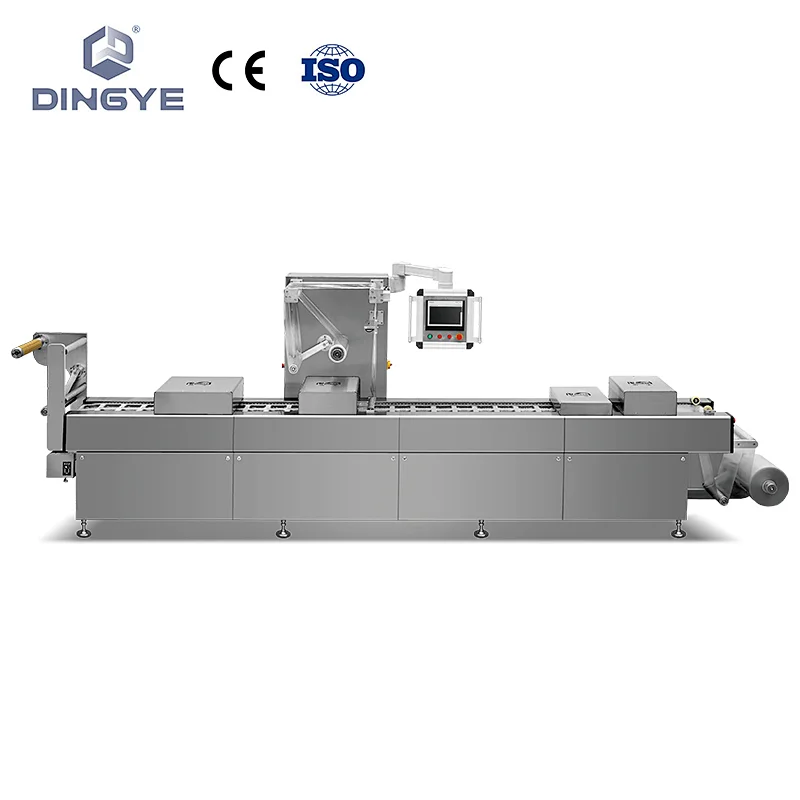

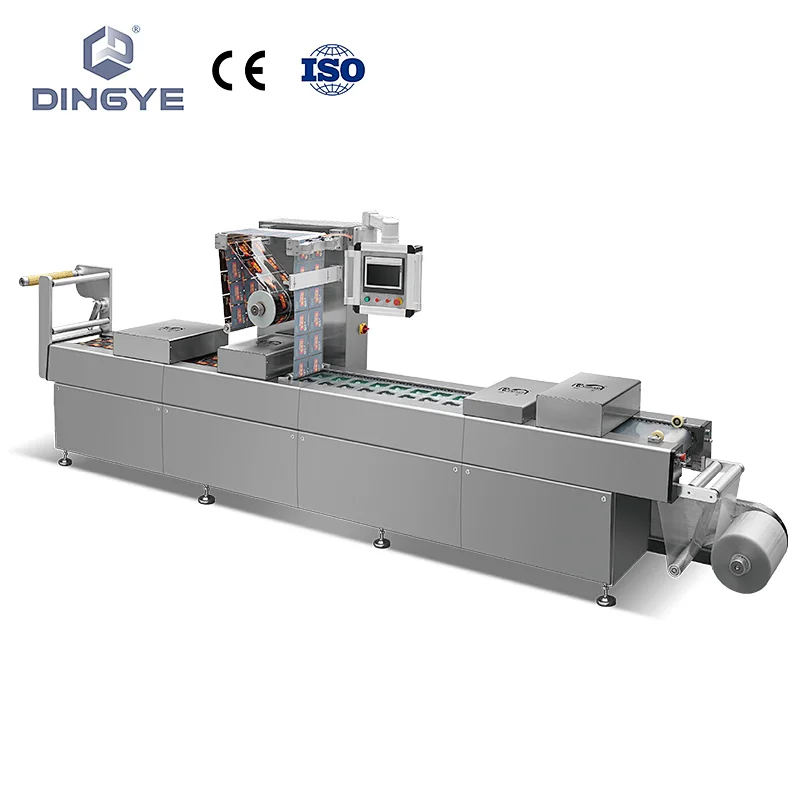

DZL-520T automatic flexible vacuum thermoforming packager
DZL-520T automatic flexible vacuum thermoforming packager
vacuum thermoforming packager
DZL-520T automatic flexible vacuum thermoforming packager
DZL-520T automatic flexible vacuum thermoforming packager

DZL-520T automatic flexible vacuum thermoforming packager

Model NO.
DZL-520T
Quantity:
vacuum thermoforming machine
ModelDLZ-420TDLZ-520T
Power supply380V 50HZ, 3 phase380V 50HZ
Power16KW18KW
Upper film width392mm492mm
Down film width422mm522mm
Sealing speed4-5 times/min
Weight1820KGS2015KGS
Machine size6150*1080*1880mm6600*1180*1880mm

DLZ-320TMaxi thermo mold: 290mm*290mm
1pcs Busch vacuum pump, with 100m3/h
DLZ-420TMaxi thermo mold: 390mm*390mm
1pcs Busch vacuum pump, with 200m3/h
DLZ-520TMaxi thermo mold: 490mm*490mm
1pcs Busch vacuum pump, with 200m3/h
