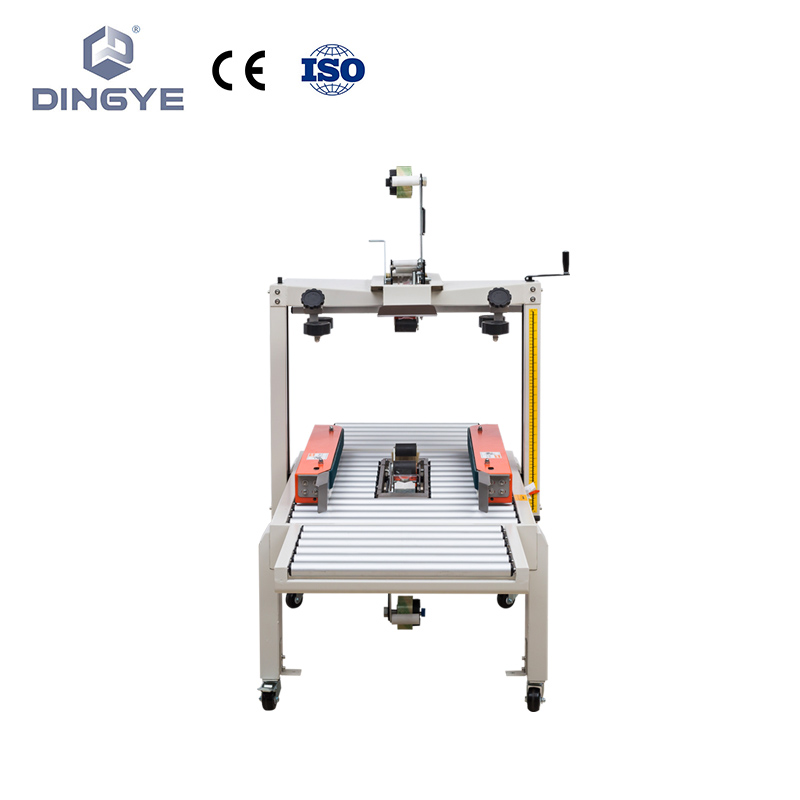

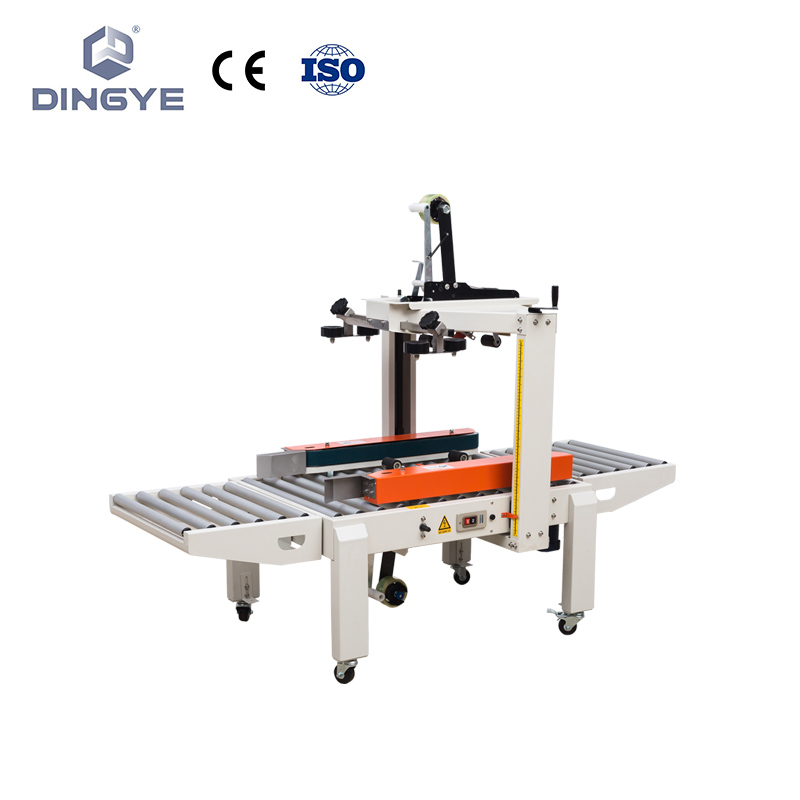

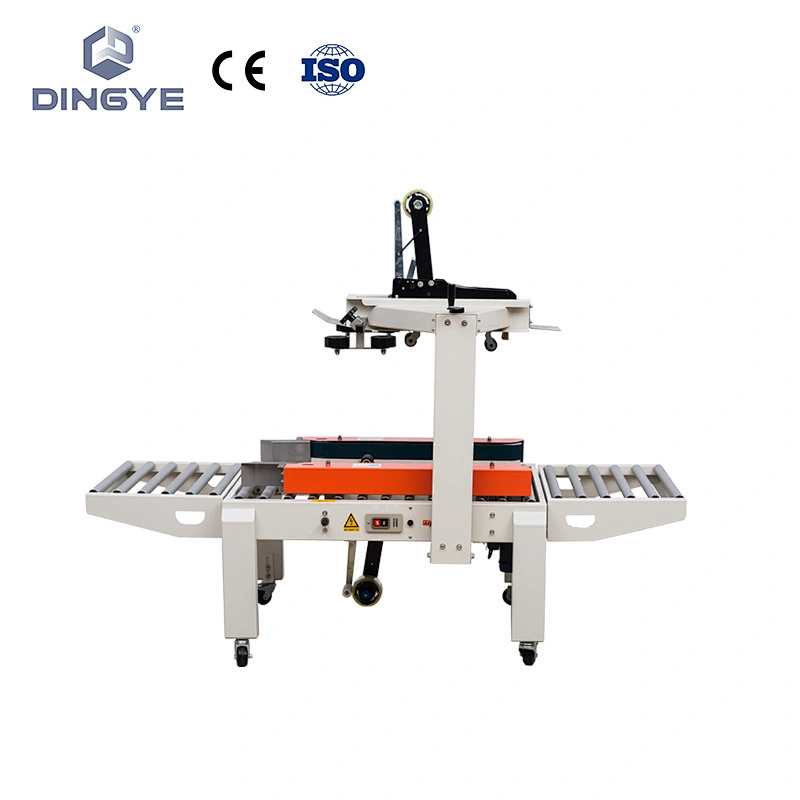

FXC5050 Carton sealer

FXC5050 carton sealing machine is mainly used in sealing and packing cartons, which can be used either independently or as a necessary part of a production line
.
Conveyor belt is mounted in left & right side.
Carton is transmitted by two sides conveyor belts.

Adjust sealing height and width by hand according to the size of carton, then put carton on worktable, and carton will be transmitted through and sealed with tape automatically at the same time.

Specification:

Model	FXC5050
Sealing capacity	1,000 cases per hour
Adhesive tape used	BOPP, PVC adhesive tape
Width of adhesive tape	36, 48, 60, 75 mm
Power sources	220V, 50Hz, 180W
Max. sealing dimensions (WxH)	500x 500mm
Min. sealing dimensions (WxH)	130x 120mm
