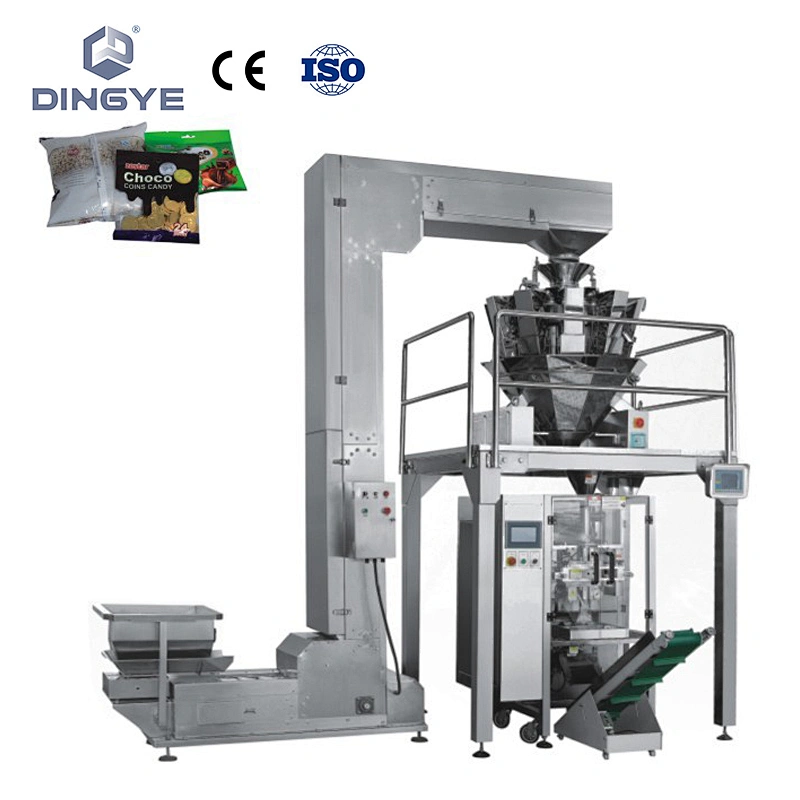

Multi-head weigher and automatic vertical packaging machine
Multi-head weigher and automatic vertical packaging machine

Multi-head weigher and automatic vertical packaging machine

Model NO.
FL-420
Quantity:

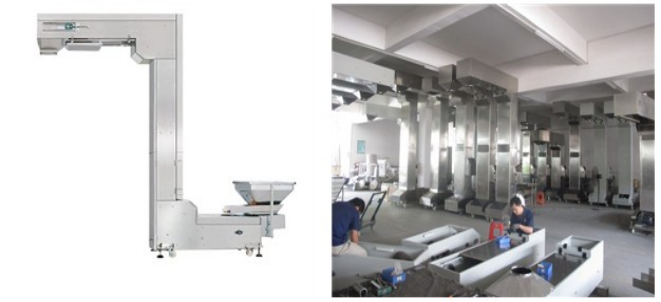

1 Z type bucket conveyor

1.1 Features
The conveyor is applicable for vertical lifting of grain material in departments such as corn, food, fodder and chemical industry, etc. For the lifting machine, the hoppers aredriven by the chains. It’s used for vertical feeding of grain or small block material. It is good for largenumber of product lifting and it can be designed very high. Its highness can be made according to the each project. So it is with a strong applicability. The frame of the conveyor can be mild steel or stainless steel. Though the frame of conveyor is mild steel, all the contact part to the food is stainless steel and the bucket can meet the food grade. The chains are made of stainless steel. When you need to clean up the conveyor, it is very easy to take them out from the conveyors too.
1.2 Specification
The highness of lifting4.6m
Speed of lifting0-17m/minute
Lifting quantity5.5cubic meter/hour
Power750W
Voltage380v

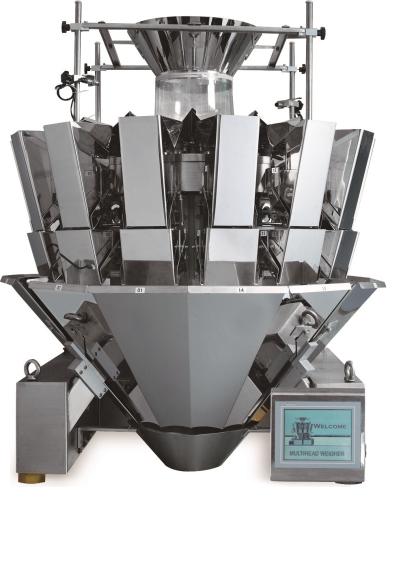

2 10 Multiheads weigher

2.1 Features
It is suitable for high speed weighing of granule, slice, roll or irregular shape  products such as candy, seed, jelly, fries, coffee bean, peanut, puffy food, biscuit, chocolate, nut, yogurt, pet food & frozen foods, etc. It is also suitable for weighing small metal and plastic parts.

2.2 Technical parameter
Weigh Ranger5-1000g
Accuracy0.2-1g
Max Speed65wpm
Weigh Volume2.5L
Hopper No10
Control Panel7 inch touch screen
Driving systemstepper motor
MaterialSUS 304
Power supplyAC 110/220, 50/60 Hz
Power1.0 kw
Size(L*W*H)1075*1050*1330 mm
Weight340 kg

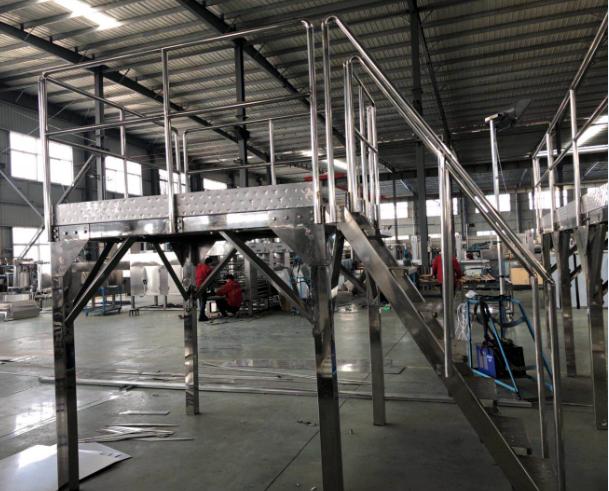

3 Supporting platform

3.1 Features
The supporting platform is very stable and stronger. Otherwise, it will affect the weighing accuracy of the combination weighers.
In addition, the bottom board of the platform is used the dimple plate. It can avoid slipping.
3.2 Specification
The dimension of the supporting platform is according to the packing system.

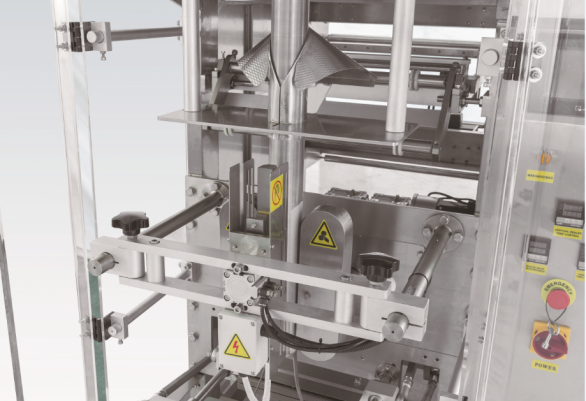

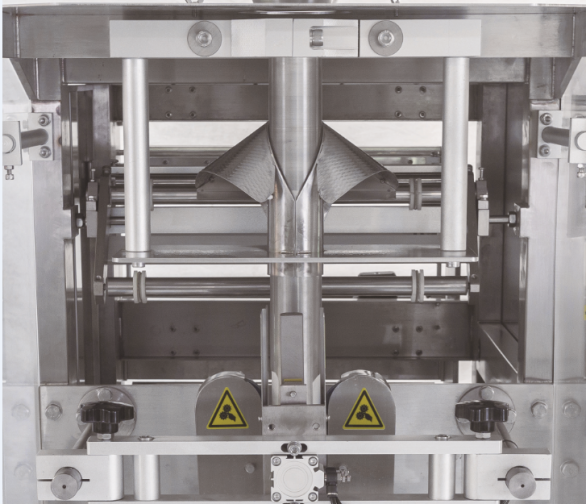

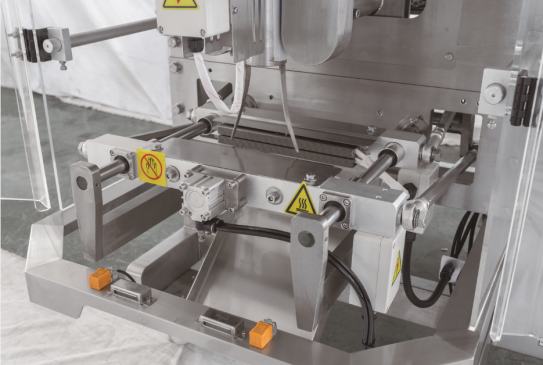

4 Vertical packing machine

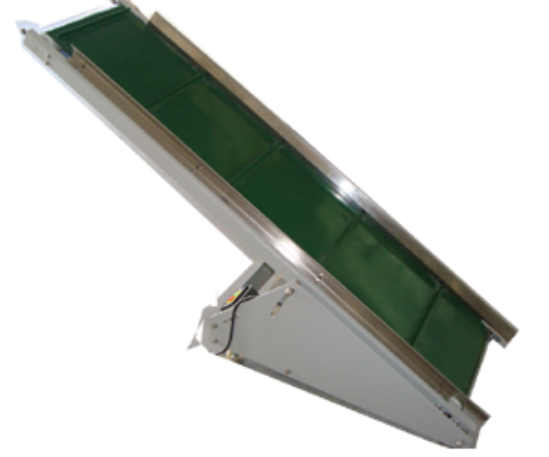

5 TP200 Finished Products Conveyor

Features
Automatically transport the finished products to the turn table which can rotation 360°convenient packaging.
Specification
Lifting height0.7m
Lifting capacity1 cmb/hour
Feeding speed30mminute
Dimension1360×383×886mm
Voltage220V/45W
