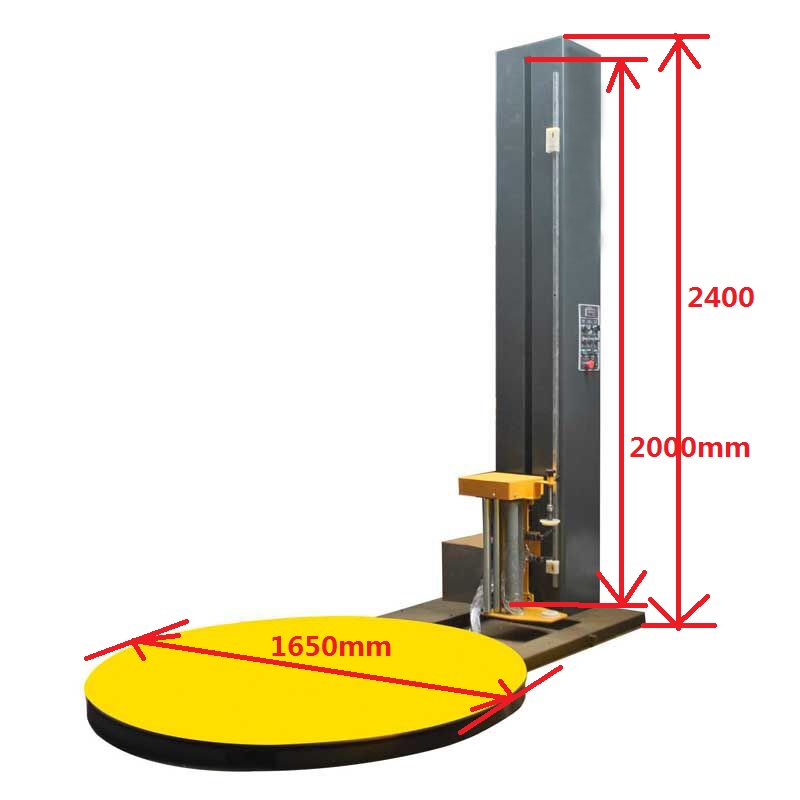

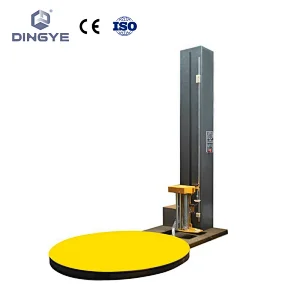

TP1650F Automatic pallet wrapping machine with pre-stretch

Model NO.
TP1650F
Quantity:
The stretch wrapping machine is used to wrap stretch film around a loaded pallet. Film provides extra support while the products are being transported and stored to protect them from tip, spill or from being damaged. Additionally, wrapped loads can easily be separated and identified. The stretch pallet wrapper is widely used in chemical industry electronic industry building materials home appliances papermaking foodstuff & drink etc.

ModelTP1650F-L
Voltage220V50HZ
Wrapping size(L*W)(500-1200)mm*(500-1200)mm
Packing heightL type:(500-2000)mm
H type: (500-2400)mm
Y type: (500-higher than 2400)mm
Packing efficiency20-40 loads/hour
Turntable speed0-12rpm
Turntable diameterDiameter:1650mm  height:85mm
Turntable loading(max)2000kg
Up-down frameDouble-chain,Up-down speed variable
Film carriagePre-stretch
Control systemPLC
Machine weight(max)700kg
Machine size2650mm*1650mm*2400mm
Packing size2650mm*1650mm*2000mm
ElectricsSingle-phase 220V/50Hz
PowerTurntable:0.75kw,
film carriage:0.3kw,up-down:0.4kw
