I.Performance Characteristics
1.The whole machine adopts PLC control, man-machine interface
2.Photoelectric automatic tracking system
3.Sealed area independent temperature display control, new vertical seal heating
4.A variety of packaging, a set of equipment can be used for different sizes of product packaging
5.Machine stainless steel panel
II.Scope of application

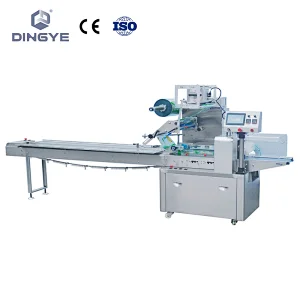

Automatic pillow packing machine is mainly suitable for packaging various irregular items and sticky solid items. For example, food: preserved fruit, sausage, squid, cake, egg roll, instant noodles, jelly, soft candy, etc.;other categories: towels, wipes, set of toothpaste toothbrushes and other hotel supplies, tape, hardware, pocket notebooks, medicines, etc.
III. Sample display
1.The whole machine adopts PLC control, man-machine interface
2.Photoelectric automatic tracking system
3.Sealed area independent temperature display control, new vertical seal heating
4.A variety of packaging, a set of equipment can be used for different sizes of product packaging
5.Machine stainless steel panel
II.Scope of application
Automatic pillow packing machine is mainly suitable for packaging various irregular items and sticky solid items. For example, food: preserved fruit, sausage, squid, cake, egg roll, instant noodles, jelly, soft candy, etc.;other categories: towels, wipes, set of toothpaste toothbrushes and other hotel supplies, tape, hardware, pocket notebooks, medicines, etc.
III. Technical Parameters
| Model | ZSJ-320 | ZSJ-350 | ZSJ-420 | ZSJ500 | ZSJ-600 |
| Packing speed | 10-180 bag/min | 10-150 bag/min | |||
| Packing size(mm) | L60-320 W10-40/40-100 H5-30/30-60 | L80-320 W30-100 H5-50 | L80-320 W30-140 H5-60 | L80-350 W30-180 H5-70 | L120-999 W30-220 H5-100 |
| Max width of film | 320mm | 350mm | 420mm | 500mm | 600mm |
| Tickness of film | ≥0.02mm | ||||
| Total power | 2.5KW | 3.0KW | 3.0KW | 3.0KW | 3.0KW |
| Voltage | 220V—380V 50Hz | ||||
| Packing material | OPP/PP OPP/CPP PT/PE PE KOP/CPP PT/PE AL/PE etc. | ||||
| Dimension | 4790*700*1520mm | 4700*800*1550mm | 4700*880*1550mm | 5320*1020*1520mm | 5320*1020*1520mm |
| Package | 580kg | 500kg | 500kg | 600kg | 900kg |
III. Sample display
