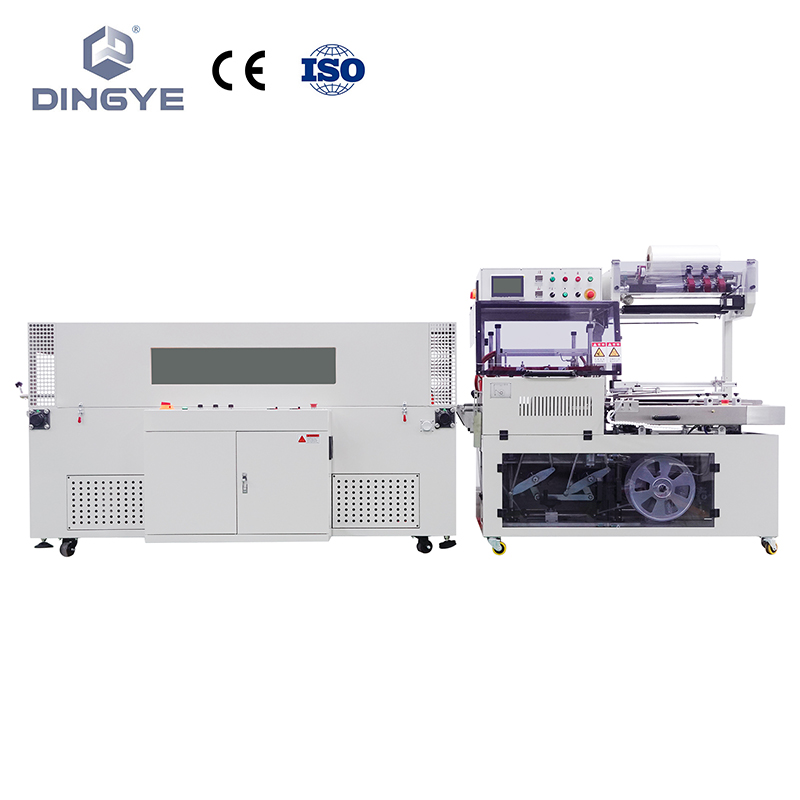

The DQL5545VG & DSE5030TL represent a newly developed high-speed servo vertical sealing and cutting system integrated with a shrink tunnel for automated packaging solutions.
The high-speed servo vertical L-sealer, paired with an extended tunnel dual-frequency conversion shrink machine, significantly increases packaging speed and enhances production efficiency.
Specification
| Model | DQL5545VG |
| Power | AC380V50HZ/60HZ |
| Capacity | 0-50pcs/min |
| horizontal heating power | 1100W |
| vertical heating power | 800W |
| Sealing temperature | It is related to the film thickness and ambient temperature, generally 180℃—250℃ |
| Sealing time (sec) | 0.2-1.0 sec |
| Thickness of film(mm) | 0.015-0.04 |
| Packing material | POF shrink film |
| Max. packing siez(mm) | L+2H≤550，W+H≤360,H≤150 |
| Machine size | L1758*W1025*H1688 |
| Machine weight | 632kg |
| Model | DSE5030TL |
| Power | 26.6kW |
| Conveyor speed | 0-25m/min |
| Tunnel size(mm) | L2000*W500*H300 |
| Conveyor loading | 20kG |
| Machine size (mm) | L2299*W970*H1262 |
