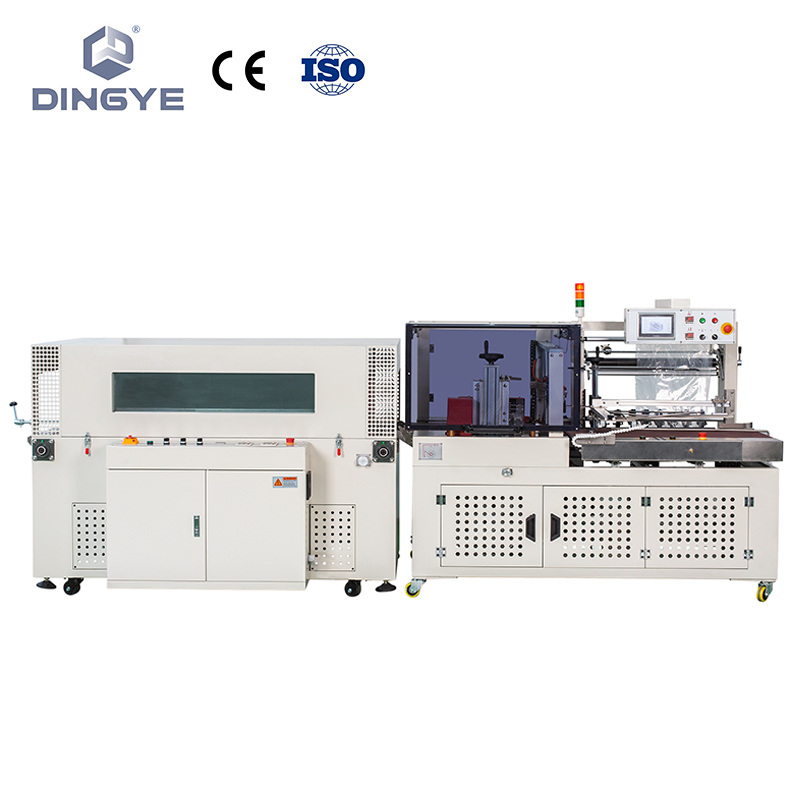

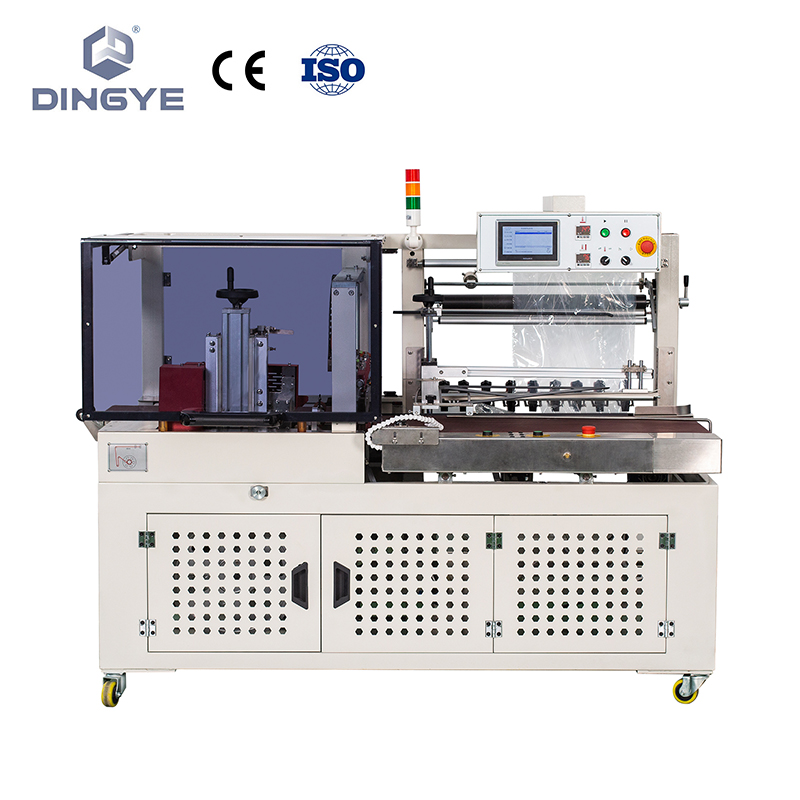

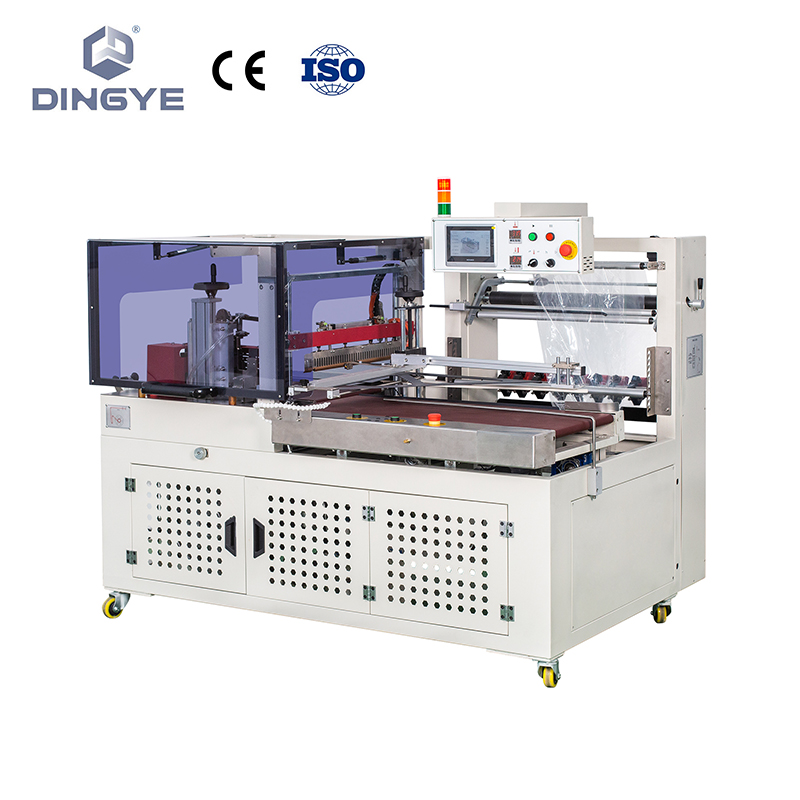

The DQL5520S is a newly developed high-speed, fully servo-controlled, automatic side-sealer with an unlimited product length capacity. It is designed to integrate with the DSE6530T dual-VFD-controlled shrink tunnel for high-speed packaging completion.
Specification
| Model | DQL5520S |
| Voltage | 220V50HZ/60HZ |
| Horizontal heating power | 1000W |
| Side heating power | 500W |
Sealing temperature | It is related to the film thickness and the ambient temperature. Generally, the horizontal sealing temperature is 160℃ - 220℃, and the edge sealing temperature is 300℃ - 350℃. |
Sealing time | 0.1 - 1.0s |
Film thickness | 0.015-0.05mm |
Capacity | 0-60pcs/min |
| Packing material | POF film |
| Max..packing size | L is not limited W+H≤420 H≤200 |
| Machine Size | L1898×W1296×H1484 |

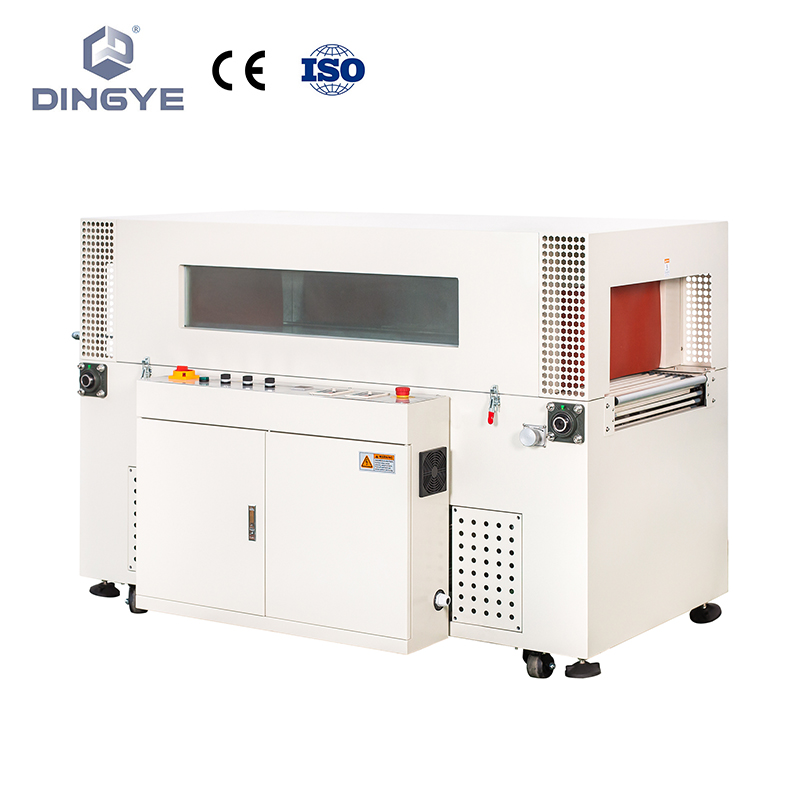

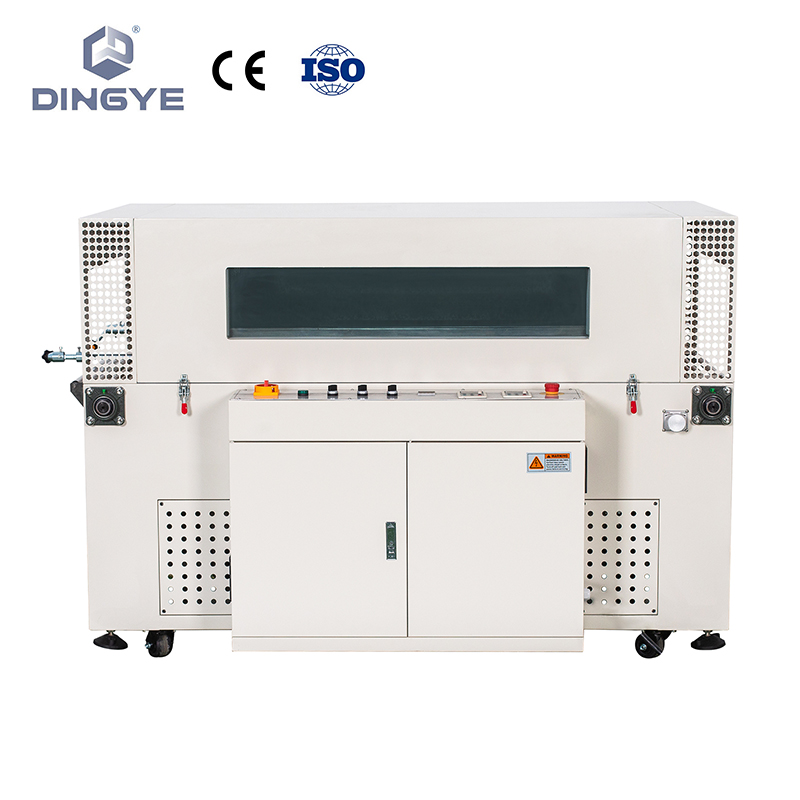

| Model | DSE6530T |
| Voltage | 380V50Hz/60Hz 3phase |
| Power | 19.5kW |
| Conveyor speed | 0-15m/min |
| Tunnel Size | L1500*W650*H300 |
| Conveyor loading | 15kg |
| Machine size | 1975x1172x1313mm |
Photos
Send Message
Related Products
Model NO. DQL5545VG & DSE5030TL
Model NO. DQL4515D& DSB4522
Model NO. ZB83A

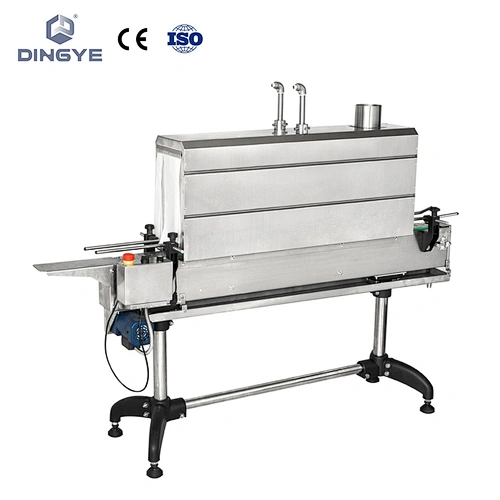

Model NO. DZB1135
Model NO. BSS-1538D
Model NO. BSS-1538C
Model NO. BSS-1538B

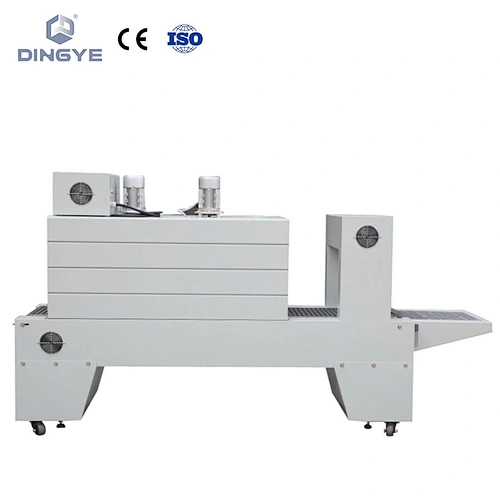

Model NO. BSE6040A
