Model NO.
DQFXZ5050S&DQFXS7050
Quantity:

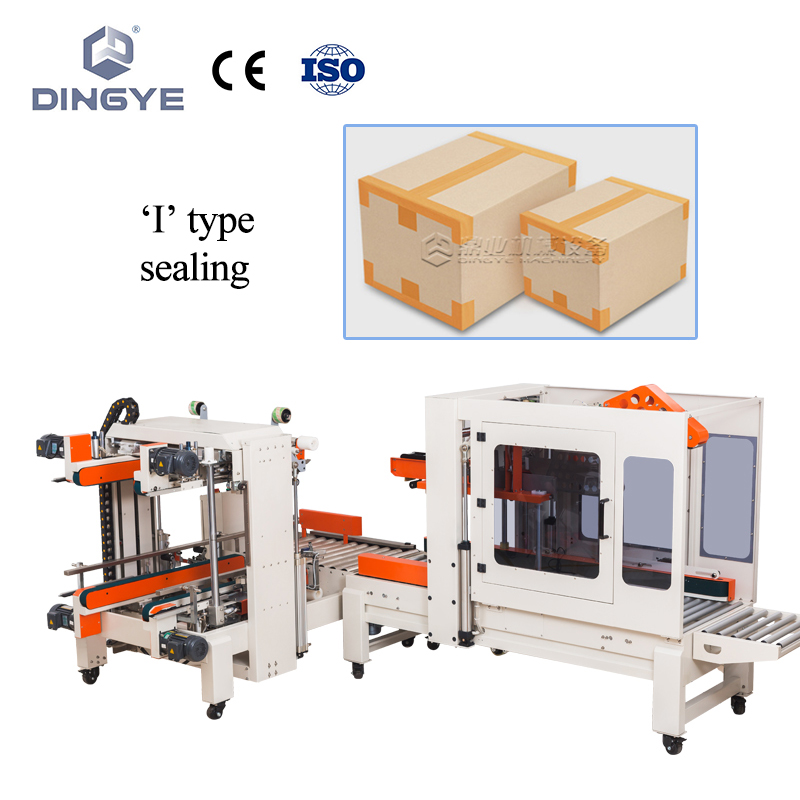

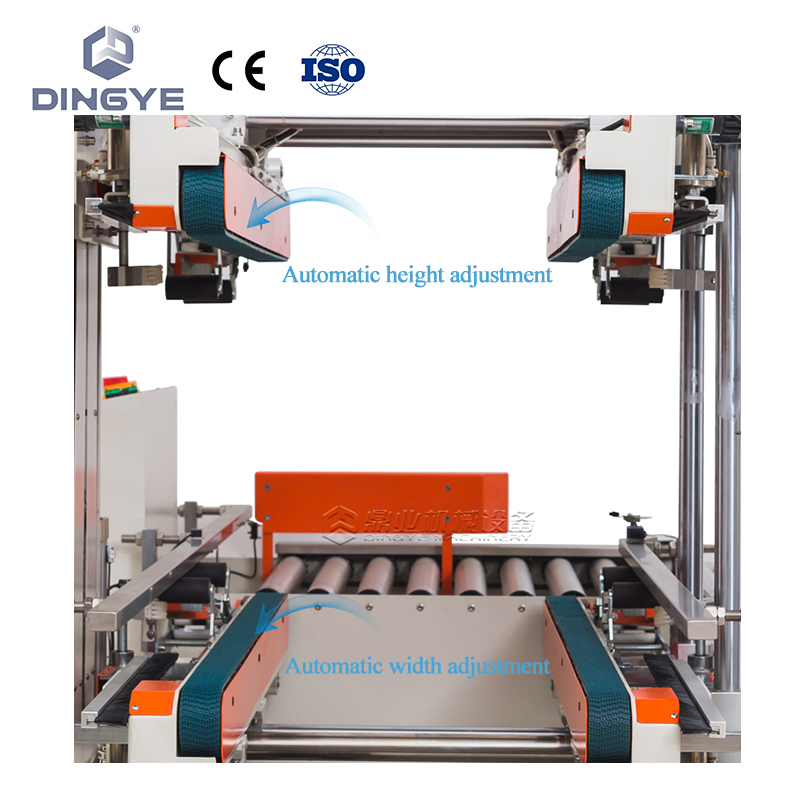

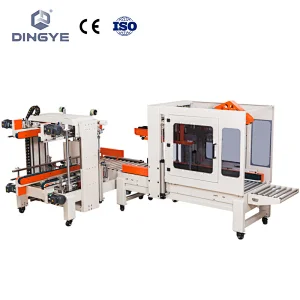

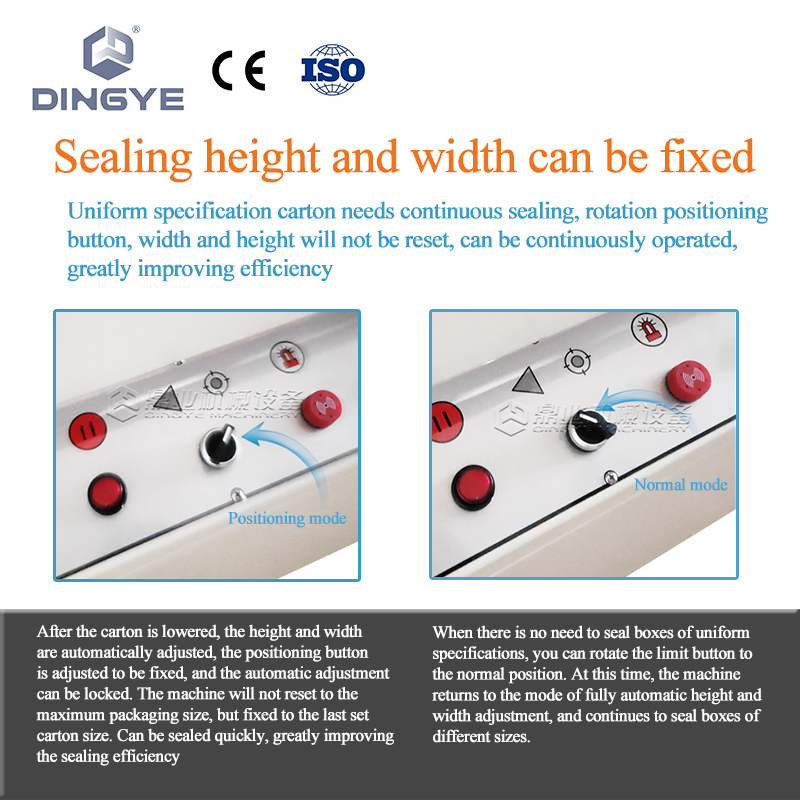

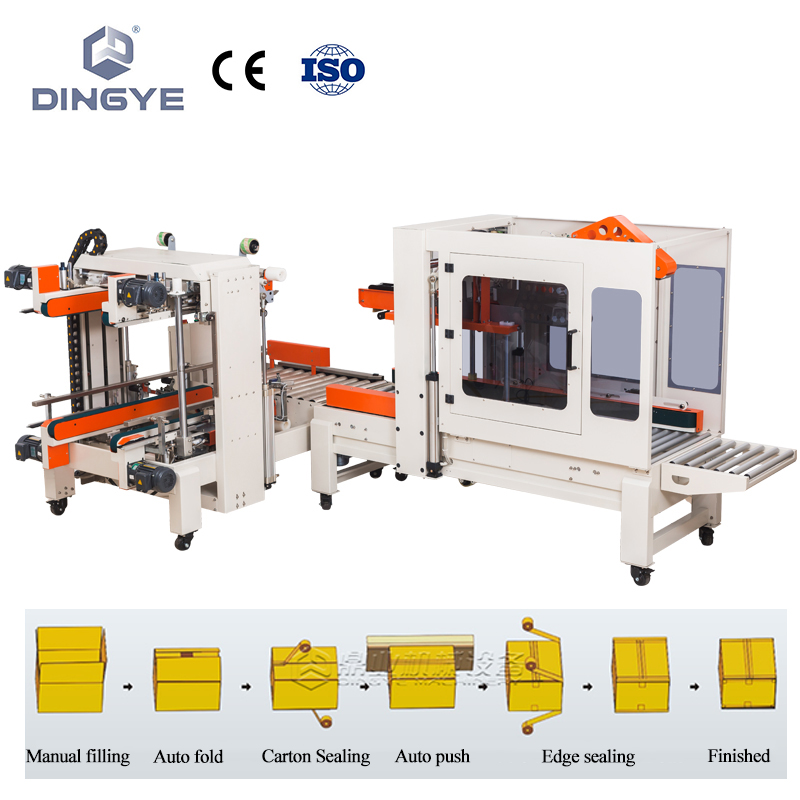

DQFXS7050 four-corner edge sealing automatic carton sealing machine and DQFXZ5050S automatic folding and lid sealing machine form an I-shaped carton sealing line, which can meet the needs of products that need to be reinforced on all sides of the carton, and complete the sealing on all sides and the middle once. DQ series box sealing machine can automatically sense the size of the box without manual adjustment. When the same specification is needed to seal the box, it only needs to lock the induction function to seal the boxes in batches. The machine is widely used in electrical, household, textile, food, daily necessities, medicine, chemical and other industries.
Specification:
ModelDQFXZ5050S
Power supplyAC220V/50,AC110V/60Hz 420W
Max. packing dimension500(W)* 500(H)* 700(L)mm
Min. packing dimension200(W)*160 (H)*260 (L)mm

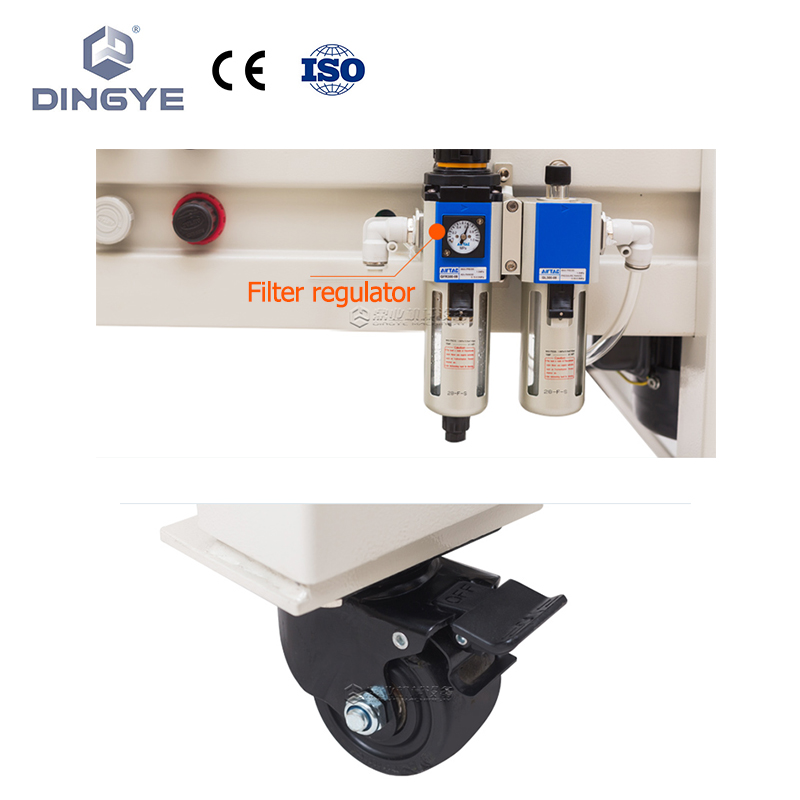

Air Pressure2/3L, 5Kg/cm²
Working table height:600-700mm
speed18m/min
Width of adhesive tape48mm. 60mm.
Machine sizeL2889*W1056*H1815MM

ModelDQFXS7050
Power supplyAC220V/50  1000W
Max. packing dimension500(W)* 500(H)*700(L) mm
Min. packing dimension260(W)*200 (H)*175 (L)mm
speed19m/min
Air Pressure2/3L,5kg/cm3
Width of adhesive tape48mm. 60mm. 76mm
Weight of Package (kg)2.5-30
