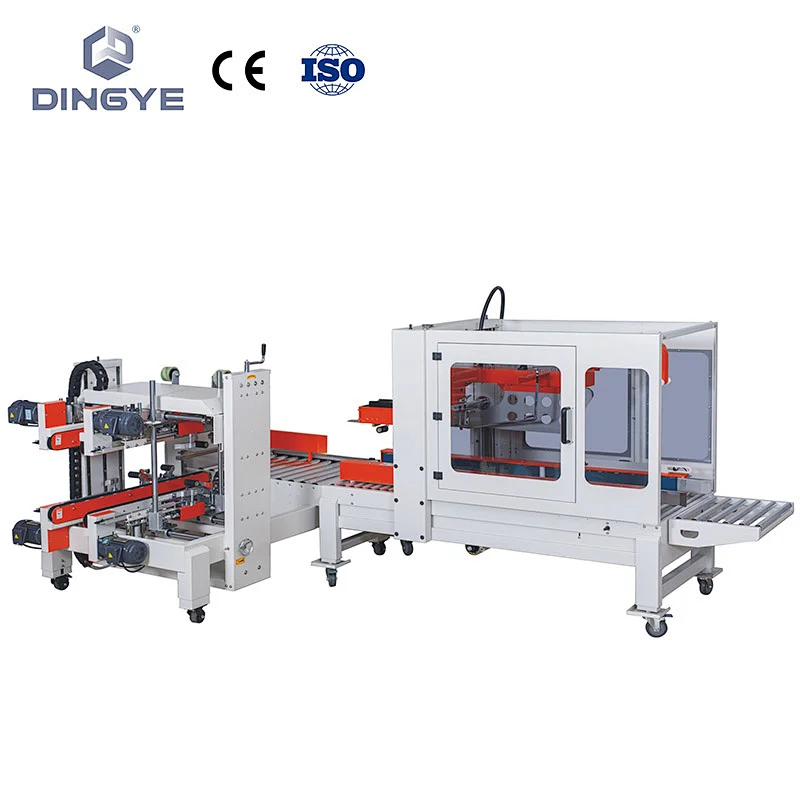

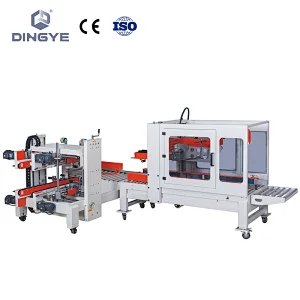

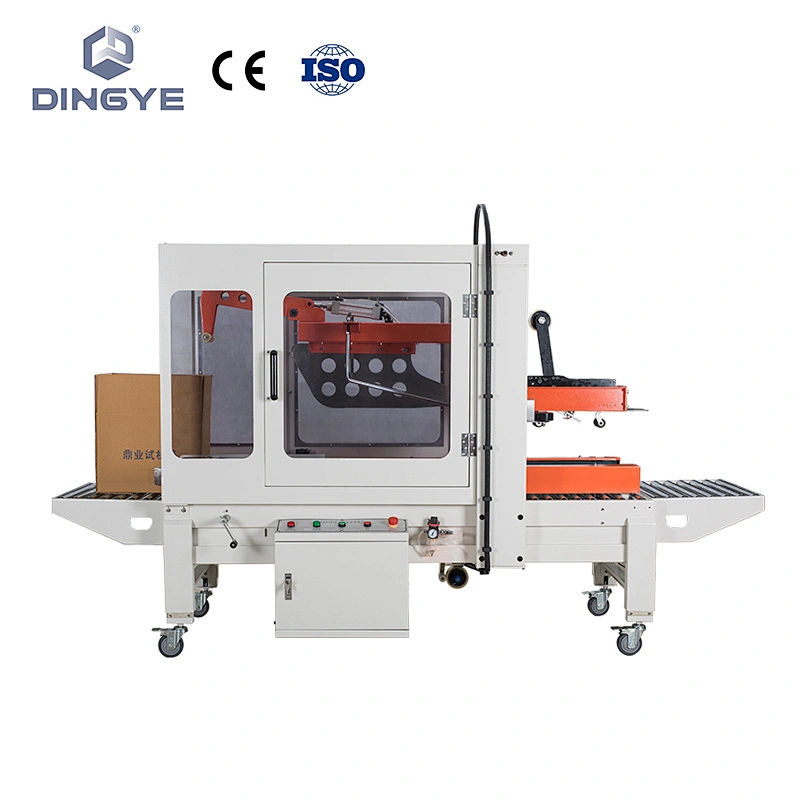

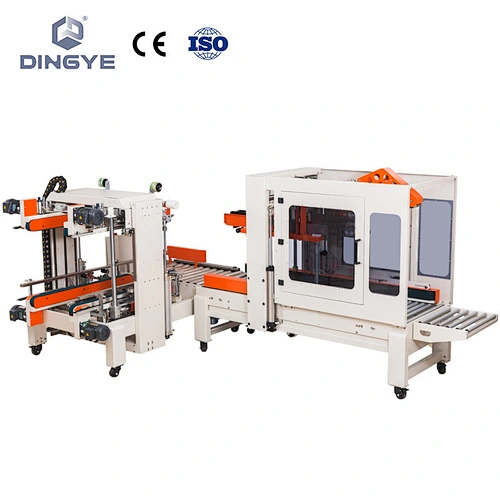

FXZ5050 Automatic carton sealer&DFXS7050 Automatic carton edges sealer

DFXS-7050 four-corner edge automatic carton sealing machine & FXZ5050 automatic folding cover and sealing machine is mainly used for carton sealing and packaging, which can be used alone or as a necessary part of the production line. The machine adopts pneumatic method to automatically adjust the packaging size according to the carton. So it has higher efficiency than manual and semi-automatic case sealers.
In addition, the pneumatic working principle ensures stable performance. Cylinder pressure adjustment function to avoid damage to the carton. AirTac products are used for pneumatic components such as cylinders. The machine is widely used in electrical appliances, household, textile, food, daily necessities, medicine, chemical industry and other industries.

feature:
1. Automatically seal cartons of different sizes without manual adjustment.
2. The sealing pressure is adjustable, depending on the material of the carton;
3. The thrust of the moving arms on both sides can be adjusted according to the weight of the carton;
4. The moving arms on both sides automatically adjust the packaging to the correct position;
5. The movement frame is driven by double cylinders, which is dexterous and stable, and has a long use time;
6. The pneumatic and electrical parts are perfectly combined, and the operation is convenient and simple;
7. Fine structure, harmonious color, pleasing to the eye.

Specification:

Model	DFXS-7050	FXZ5050
Power supply	AC220V/50,AC110V/60Hz 260W

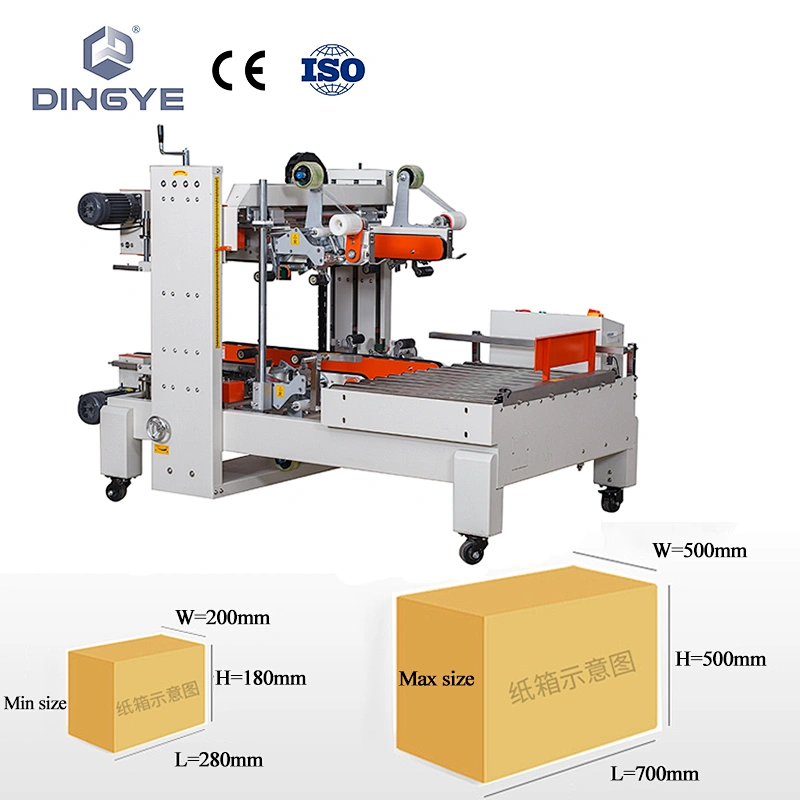

Max. packing dimension	500(W)* 500(H) mm
Min. packing dimension	200 (W)*200 (H)*200 (L)mm	200 (W)*160 (H)*200 (L)mm
speed	18m/min
Air Pressure	6kg/cm3	2/3L,5kg/cm3
Width of adhesive tape	48mm. 60mm. 76mm
Height of working table(MM)	550-750MM	/
Machine size	1955(L)*1340(W)*1330 (H)mm	2836(L)*1010(W)*1600-1700 (H)mm
Adhesive Tape Used	BOPP, PVC, Kraft Paper Tape
Weight of Package (kg)	2.5-30	/
Machine weight	180 KG	/
