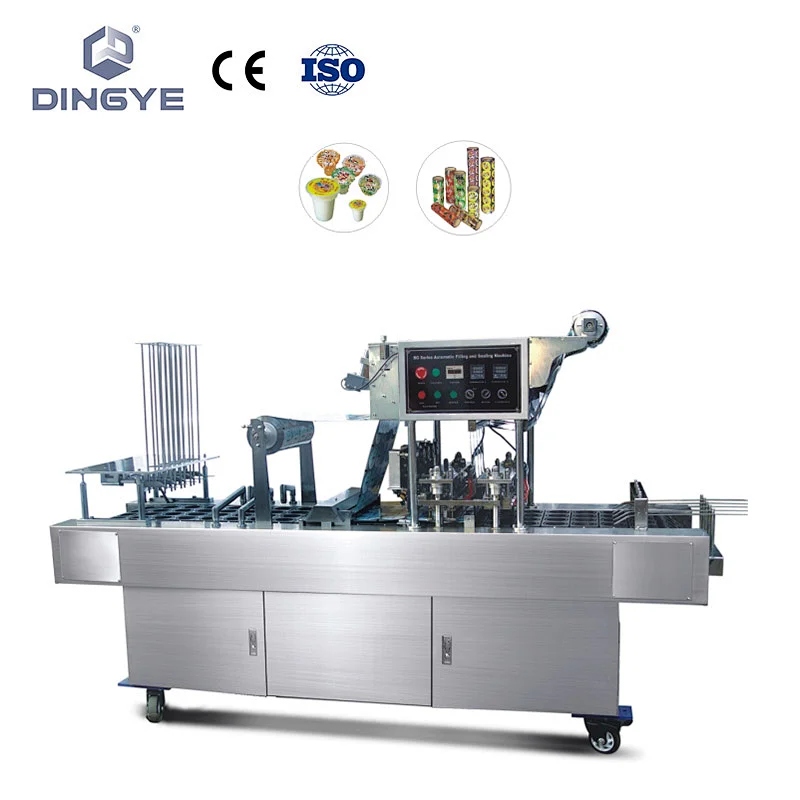

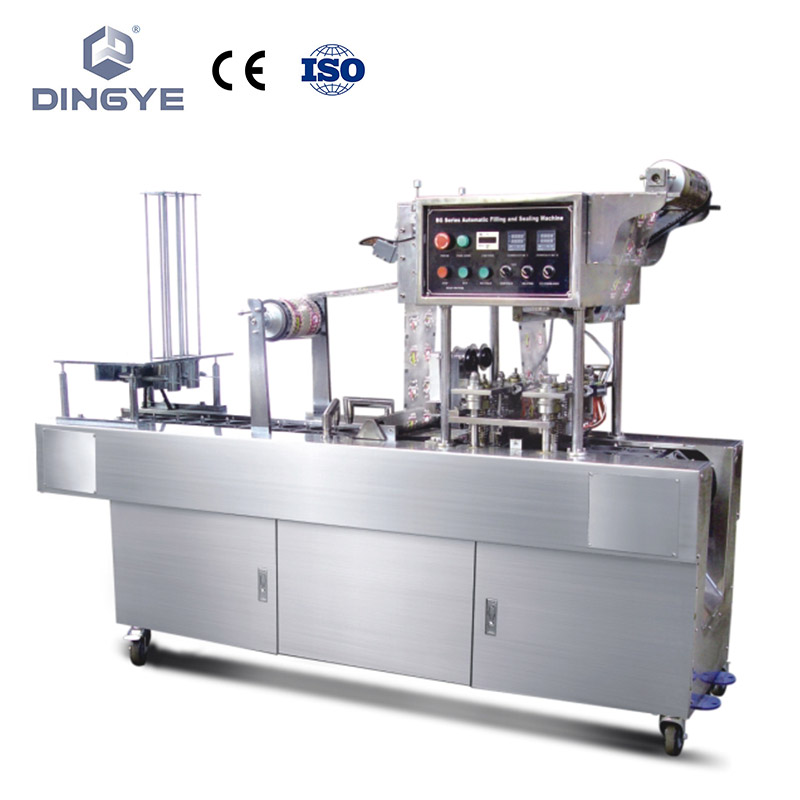

BG32A (2 cups)/BG60A (4 cups) automatic cup filling and sealing machine is widely used in filling and sealing various kinds of plastic cups for liquid.

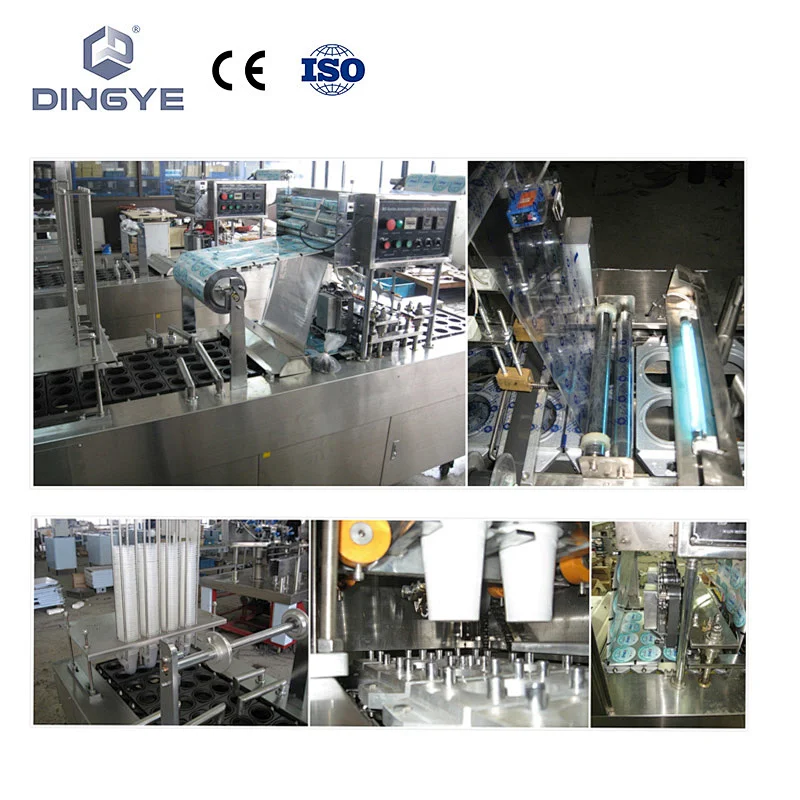

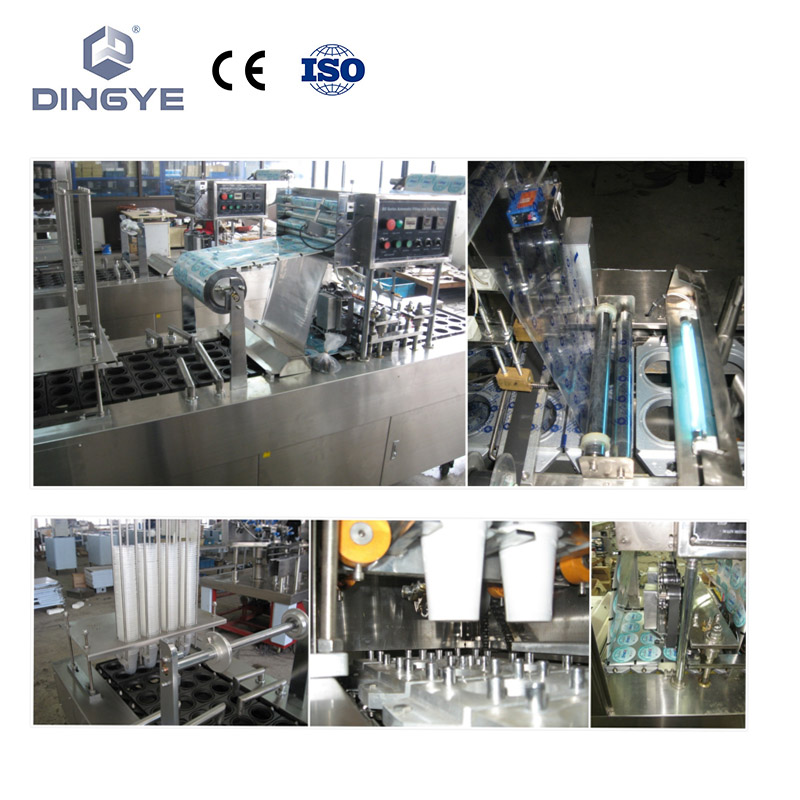

It can automatically complete the processes of cup-dropping, filling, sealing, film cutting, code printing, sterilizing in ultraviolet radiation and cup-falling in one operation.
It has function of automatic film position regulation.
Large power AC motor driving mechanism is adopted.
For 4 cups model, it can either driven by motor or pneumatic method.
Famous brand -OMRON and AirTAC are applied to electric components and pneumatic elements.
In addition, it can be customized according to your special requirement.
It can automatically complete the processes of cup-dropping, filling, sealing, film cutting, code printing, sterilizing in ultraviolet radiation and cup-falling in one operation.
It has function of automatic film position regulation.
Large power AC motor driving mechanism is adopted.
For 4 cups model, it can either driven by motor or pneumatic method.
Famous brand -OMRON and AirTAC are applied to electric components and pneumatic elements.
In addition, it can be customized according to your special requirement.
| Model | BG 60A | BG 32A |
| Number of cups | 4 cups | 2 cups |
| Power source | 220V/380V/50HZ 3.5kw | 220V/380V/50HZ 2.5kw |
| Capacity | 60-64cups/min | 30-32cups/min |
| Temperature | 0 -300 centidegree | 0 -300 centidegree |
| Seal material | PE, PP, PET/PE | PE, PP, PET/PE |
| Dimension | 2360*850* 1550mm | 2150*700* 1550mm |
| Weight | 500KG | 400KG |
