automatic water glass packing machine
automatic water glass packing machine

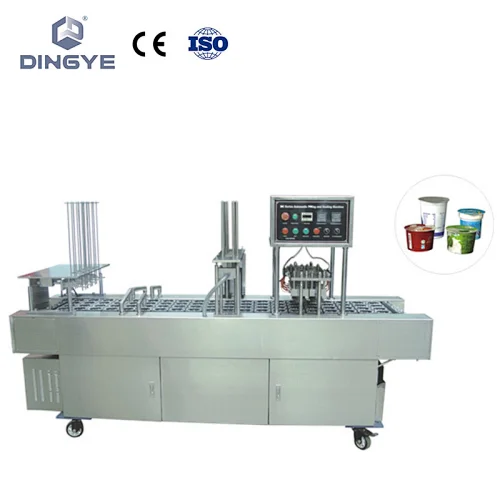

BG32P/60P Automatic cup filling and sealing machine

Model NO.
BG32P
Quantity:
BG32P (2 cups)/BG60P (4 cups) automatic cup filling and sealing machine is widely used in filling and sealing various kinds of plastic cups for sticky liquid and paste material.
It can automatically complete the processes of cup-dropping, filling, sealing, film cutting, code printing, sterilizing in ultraviolet radiation and cup-falling in one operation.
P model is especially designed for filling sticky liquid or paste material, such as fruit jam, yoghourt, hot chocolate liquid etc.
The filling unit is also able to improved to fill powder and granule, such as coco powder, baking power, peanut and soybean etc.

It has function of automatic film position regulation.
Large power AC motor driving mechanism is adopted.
For 4 cups model, it can either driven by motor or pneumatic method.
Cup-dropping and cover-sucking unit adopt pneumatic method.
Famous brand -OMRON and AirTAC are applied to electric components and pneumatic elements.
In addition, it can be customized according to your special requirement.
ModelBG32PBG60P
Number of cups                     2 cups4 cups
Power source220V/380V/50HZ 2.5kw                      220V/380V/50HZ 3.5kw
Capacity30-32 cups/min60-64 cups/min
Filling range                                                     50-250 ml
Temperature                                            0 -300 Centidegree
Seal material                                                PE, PP, PET/PE
Dimension2150*700* 1650 mm2360*820* 1650 mm
Weight440 KG580 KG
