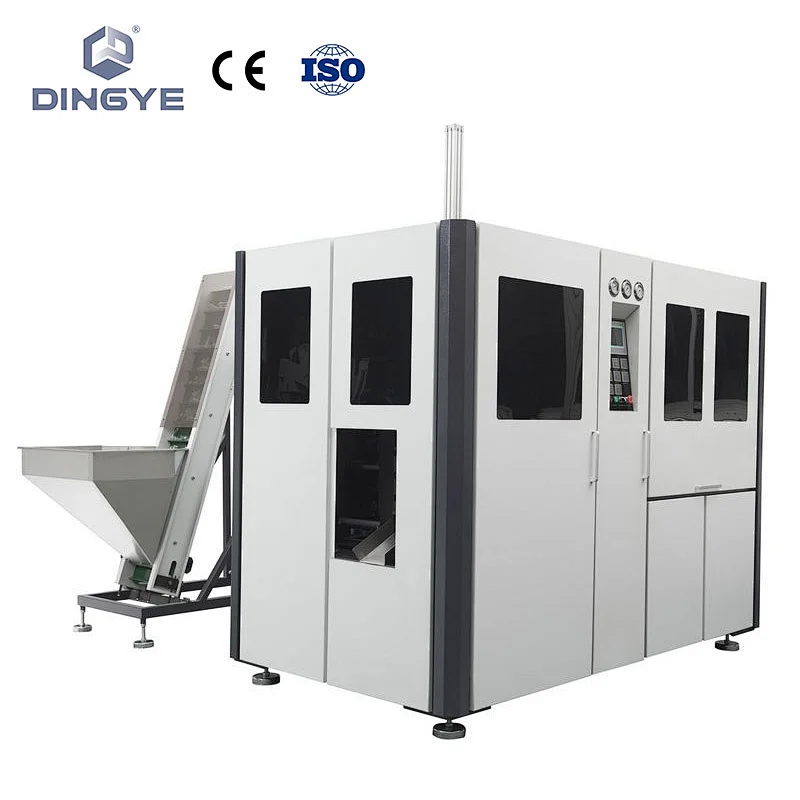

This automatic blowing machine is suitable to produce different shapes of PET/PC/PE bottles. Production workmanship process is fully automatic to make best quality and pollution-free. It holds less investment, high efficiency, easy operation, simple repaire, safety etc.
Features:
1. The automatic blowing machine adopts human-computer interface to control the whole working precedures, auto-loading, auto blowing, auto dropping, action cylinders are all assembled with magnetic induction switches. Connect with PLC to control every step and test every cylinder. Next action will continue after the former step done, if former step is not finished, alarm automatically and do not work. PLC displays problem position
2. Fast speed, accurate position, smooth action
3. According to special demand, adopt cross double crank pressed clamping, with strong clamping force. Mould open stoke can be adjustable according tot he bottle size to save the time.
4. Far infrared heater lamps have stong penetrations, preforms are heated uniformly while rotating, PLC or electronic pressure adjustor controls each group of temperature separately
5. Particular pre-heater design makes preform close while heating. Change space, shorten heating tunnel and reduce energy consumption according to the bottle size while blowing.
6. The air supply system consists of slight blow, high pressure blow, low pressure actions, to supply enough air for different products.
7. Special recycling installation for high pressure air reduce the energy consumption.
8. Operation consists of manual and automatic precedure, manual operation for assembly and test, automatic operation for production.
9. Production workmanship process is fully automatic to make best quality and pollution-free. It holds less investment, high efficiency, easy operation, simple repaire, safety etc.
Specification:
Features:
1. The automatic blowing machine adopts human-computer interface to control the whole working precedures, auto-loading, auto blowing, auto dropping, action cylinders are all assembled with magnetic induction switches. Connect with PLC to control every step and test every cylinder. Next action will continue after the former step done, if former step is not finished, alarm automatically and do not work. PLC displays problem position
2. Fast speed, accurate position, smooth action
3. According to special demand, adopt cross double crank pressed clamping, with strong clamping force. Mould open stoke can be adjustable according tot he bottle size to save the time.
4. Far infrared heater lamps have stong penetrations, preforms are heated uniformly while rotating, PLC or electronic pressure adjustor controls each group of temperature separately
5. Particular pre-heater design makes preform close while heating. Change space, shorten heating tunnel and reduce energy consumption according to the bottle size while blowing.
6. The air supply system consists of slight blow, high pressure blow, low pressure actions, to supply enough air for different products.
7. Special recycling installation for high pressure air reduce the energy consumption.
8. Operation consists of manual and automatic precedure, manual operation for assembly and test, automatic operation for production.
9. Production workmanship process is fully automatic to make best quality and pollution-free. It holds less investment, high efficiency, easy operation, simple repaire, safety etc.
Specification:
Model | OGB-3-1500 |
Theoretical output | 3300B/H |
Max volume | 1.5L |
Max height | 360mm |
Max diameter | 105mm |
Number of cavities | 3 |
Mould plate dimension | L:430mm*H360mm |
Mould thickness | 190mm |
Mould opening stroke | 110mm |
Power | 220-380V/50-60HZ |
Total power | 18kw |
Heating power | 15kw |
Operation pressure | 0.8-1.0Mpa |
Action air consuming | ≤1.0m³/min |
Blowing pressure | ≤4.0Mpa |
Blowing air consumption | ≤2.4m³/min |
Main body dimension | L:2700*W1450*H2000mm |
Main body weight | 2000kg |
Preform autoloader dimension | L:1600*W850*H2200mm |
Preform autoloader weight | 200kg |
