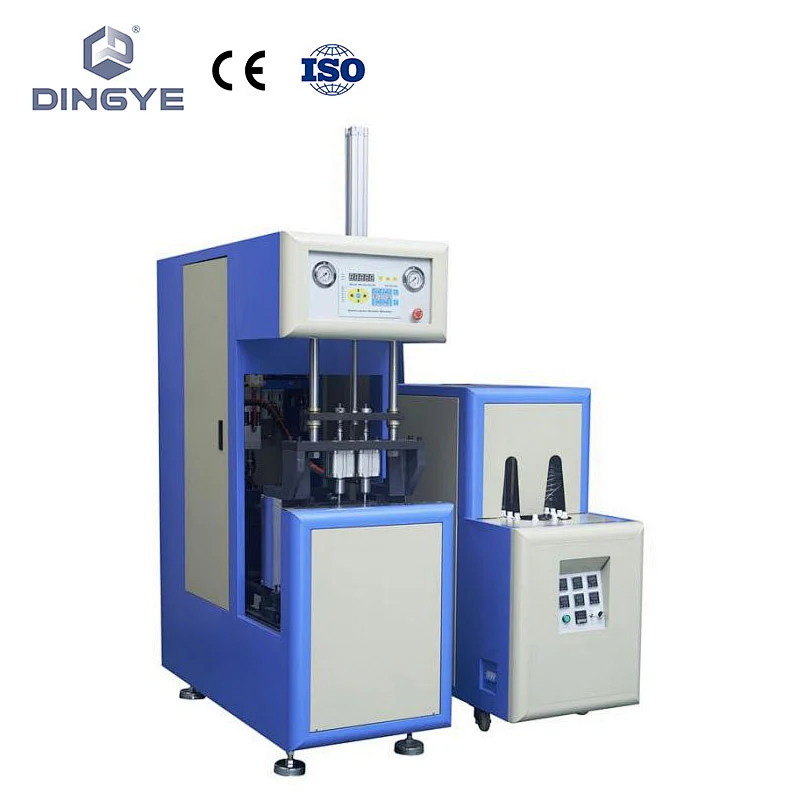

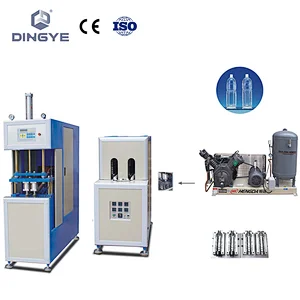

HZ-880 Semi-automatic stretch blow moulding machine

Model NO.
HZ-880
Quantity:
Semi-automatic stretch blow moulding machine is suitable to produce different shapes of PET/PC/PE bottles. It can blow from 100ml to 6000ml bottles and is widely used to produce mineral water botttles, carbonated soft drink bottles, juice bottles, medical bottles, cosmetic and oil bottles etc.

Infrared lamps adopted in the pre-heater ensure PET preforms being heated evenly.
Mechanical-double-arm damping system ensures mould being tightly closed under high pressure and high tempereature.
Pneumatic system consists of two parts: Pneumatic acting part and bottle blowing part in order to meet different pressure requirements for both acting and blowing. It provides sufficient steady high pressure to blow large irregular shape bottles.

Equipped with silencer and oiling system to lubricate the mechanical parts of the machine.
Operated step-by-step and in semi-auto mode.
Wide-mouth jar and hot-fill bottles can also be made.
TYPEITEMUNITHZ-880  Standard
End  ProductMaterial/PET/PP/PE/PC
VolumeL0.05-2.5  (2-cavity)
3-6  (1-cavity)
Theoretical  outputPcs/h0.05-2.5L: 900
3-6L: 400
Max. lengthmm360
Max. diametermm180
Mould  PlateMax. mould  plate  dim
ension(L*H)
mm420*500
Max. mould  thicknessmm160-240
Clamping  forceKN180
Mould  opening  stroke(adjustable)mm200
Air  CompressorHight  pressure  compressor
M3  /Mpa
≥ 1.2/3.0x1set
Precision  air  filtersM3  /Mpa≥ 1.0/3.0x2pcs
Main  Machine  ElectricityPowerKw18
Voltage/Frequency     V/HZ220-380/50-60  (3  PH)
Machine  Size  and  WeightBlow  unitdimension(L*W*H)M1.66× 0.74× 2.2
Blow  unit  weightT0.7
Pre-heater  dimension(L*W*H)M1.46× 0.71× 1.58
Pre-heater  weightT0.3
SafetyAuto  emergency  alarmSafety  inter-locking  device
