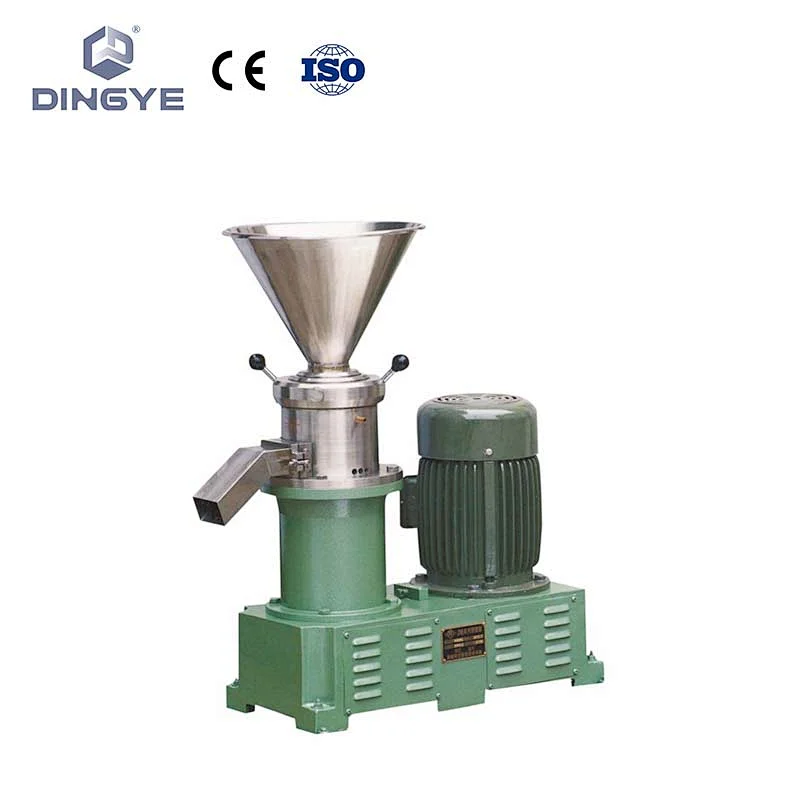

JMS80 split-body colloid grinder

The working principle of the colloid grinder: Under the effect of centrifugal force and being run by relatively high speed between the rotating gear and the fixed gear, the liquid and the semi-liquid materials is efficiently emulsified, homogenized, dispersed and mixed during the course of being cut, milled and shocked with high frequency.

After that you can get the satisfied and processed material. The colloidal mill is widely applied in sorts of products of many fields by its advantage such as foodstuffs industry, medicine industry, chemical industry and every day chemical industry etc; The products including soybean milk, fruit jam, peanut butter, artificial corn milk, cream, perfumery compound, pigment, greasing oil, dyestuff, pant, fish live oil, pollen honey, tooth-paste and so on.

When processing high consistency material, such as peanut and sesame etc, you should fix the helix drive ram that is produced by our company to the top side of the rotor.

Stainlee steel body is option.

Specification:

Model	JMS-80	JMS-120	JMS-130
Voltage	3 Phase 220/380V 50-60HZ
Power	4KW	7.5KW	11KW
Granule precision	2-50μm	2-50μm	2-40μm
Output	0.2-1.5T/hour	0.5-2T/hour	0.5-4T/hour
Weight	150kg	250kg	330kg
Machine size	750*380* 800mm	750*380* 800mm	800*400* 1000mm
