Product Description

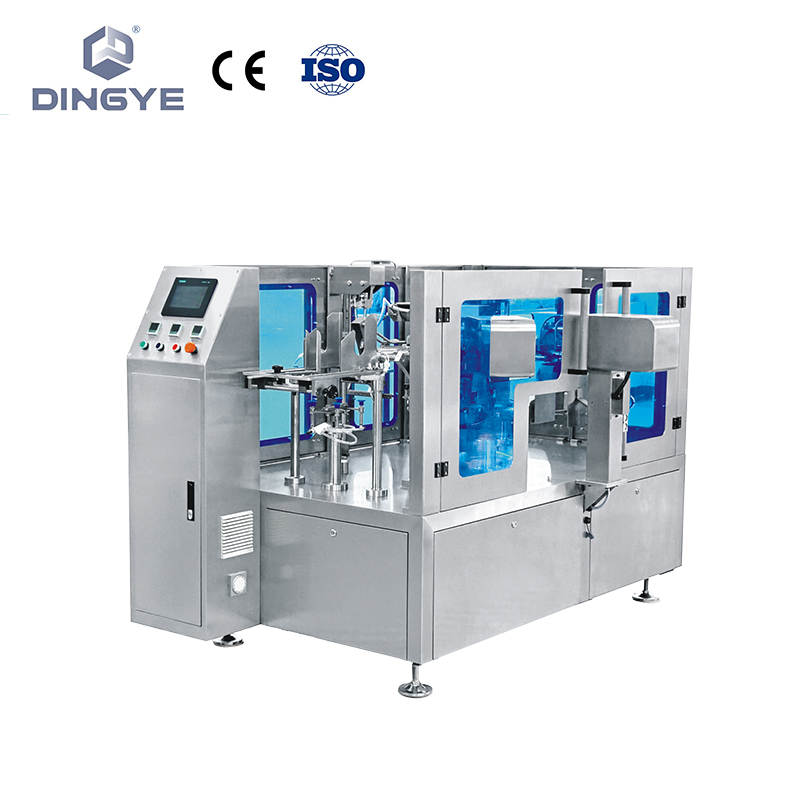

This unit is the classical model for bag feed fully automatic packaging, can independently complete such works as bag pickup, date printing, bag mouth opening, filling, compaction, heat sealing, shaping, and output of finished products etc. It is suitable for multiple materials, the packaging bag has wide adaptation range, its operation is intuitive, simple and easy, its speed is easy to adjust, the specification of packaging bag can be changed quickly, and it is equipped with the functions of automatic detection and safety monitoring, it has outstanding effect for both reducing loss of packaging material and ensuring sealing effect and perfect appearance. The complete machine is made of stainless steel, guaranteeing hygiene and safety.

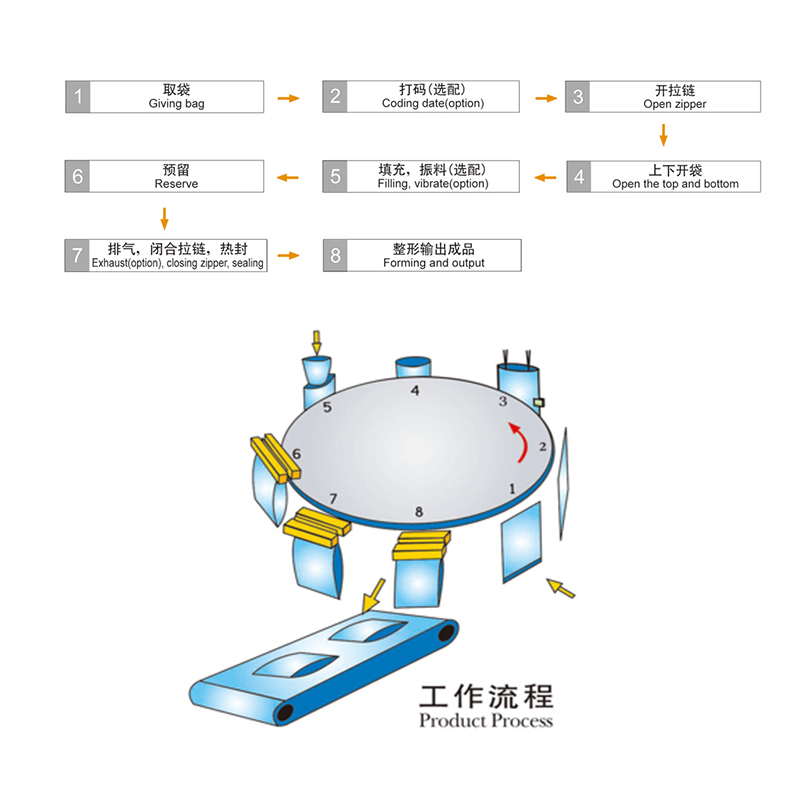

1. Can independently complete such works as bag pickup, date printing, bag mouth opening, filling, compaction, heat sealing, shaping, and output of finished products, etc.
2. Be suitable for multiple materials, the packaging bag has a wide adaptation range
3. Its operation is intuitive, simple, and easy; its speed is easy to adjust; the specification of the packaging bag can be changed quickly
4. It is equipped with the functions of automatic detection and safety monitoring, which has an outstanding effect for both reducing the loss of packaging material and ensuring a sealing effect and perfect appearance.
5. Can be equipped with multiple filling devices, intelligent combination scale device, auger weighing device, liquid/paste filling device, measuring cup filling device as well as filling device for other special products, can be used for other external matching equipment to make simple combination in order to substitute conventional manual packaging, realize automated packaging and production of enterprise products
6. The complete machine is made of stainless steel, guaranteeing hygiene and safety.
7. Adopts motor for its main power, the merit is stable operation and fast speed, when a fault occurs with the metering scale or there is no material, the packaging machine does not run and stops and waits for material, when the metering scale discharges material, the packaging machine runs automatically, thus not only improving production efficiency, but also reducing wastage of packaging bags.
8. Suitable form of bag: four-side-sealed bag, three-side-sealed bag, self-standing bag, handbag, zipper bag, plastic bag with cover, paper-plastic bag, etc.
9. Suitable material: materials like liquid, sauce, granules, powder, material of irregular shape, etc.
10. Material of the packaging bag: preformed bag and paper-plastic bag, etc., made of multiple composite films.
1. Can independently complete such works as bag pickup, date printing, bag mouth opening, filling, compaction, heat sealing, shaping, and output of finished products, etc.
2. Be suitable for multiple materials, the packaging bag has a wide adaptation range
3. Its operation is intuitive, simple, and easy; its speed is easy to adjust; the specification of the packaging bag can be changed quickly
4. It is equipped with the functions of automatic detection and safety monitoring, which has an outstanding effect for both reducing the loss of packaging material and ensuring a sealing effect and perfect appearance.
5. Can be equipped with multiple filling devices, intelligent combination scale device, auger weighing device, liquid/paste filling device, measuring cup filling device as well as filling device for other special products, can be used for other external matching equipment to make simple combination in order to substitute conventional manual packaging, realize automated packaging and production of enterprise products
6. The complete machine is made of stainless steel, guaranteeing hygiene and safety.
7. Adopts motor for its main power, the merit is stable operation and fast speed, when a fault occurs with the metering scale or there is no material, the packaging machine does not run and stops and waits for material, when the metering scale discharges material, the packaging machine runs automatically, thus not only improving production efficiency, but also reducing wastage of packaging bags.
8. Suitable form of bag: four-side-sealed bag, three-side-sealed bag, self-standing bag, handbag, zipper bag, plastic bag with cover, paper-plastic bag, etc.
9. Suitable material: materials like liquid, sauce, granules, powder, material of irregular shape, etc.
10. Material of the packaging bag: preformed bag and paper-plastic bag, etc., made of multiple composite films.
Product Parameters
| Model | DYGD-200R | DYGD-300R |
| Number of working stations | Eight working stations | |
| Bag type | Gusseted bag, four-sided sealing bag, fin sealing bag,zip-lock bag, spout pouch bag, etc. | |
| Packing Speed | 20-30bags/minute The speed is determined by the product itself and the filling weight | |
| Filling range | 10-2500g | |
| Bag Size | bag width:55-200mm bag length 100-350mm | bag width:180-300mm bag length:180-450mm |
| Clapper width | The rocking wheel controls all stations to be adjusted together | |
| Noise dB | ≤70dB SPL | |
| Sealing type | Straight+Mesh | |
| Power | 380V50HZ/60HZ 3Phase 3.5kW | 380V50HZ/60HZ 3Phase 3.5kW |
| Air consume | ≥0.6 cubic meters/minute(compressed air is provided by the user) | |
| Machine weight | 1400kg | 1800kg |
| Machine Size | L2170*W1540*H1430mm | L2460*W1870*H1460mm |
