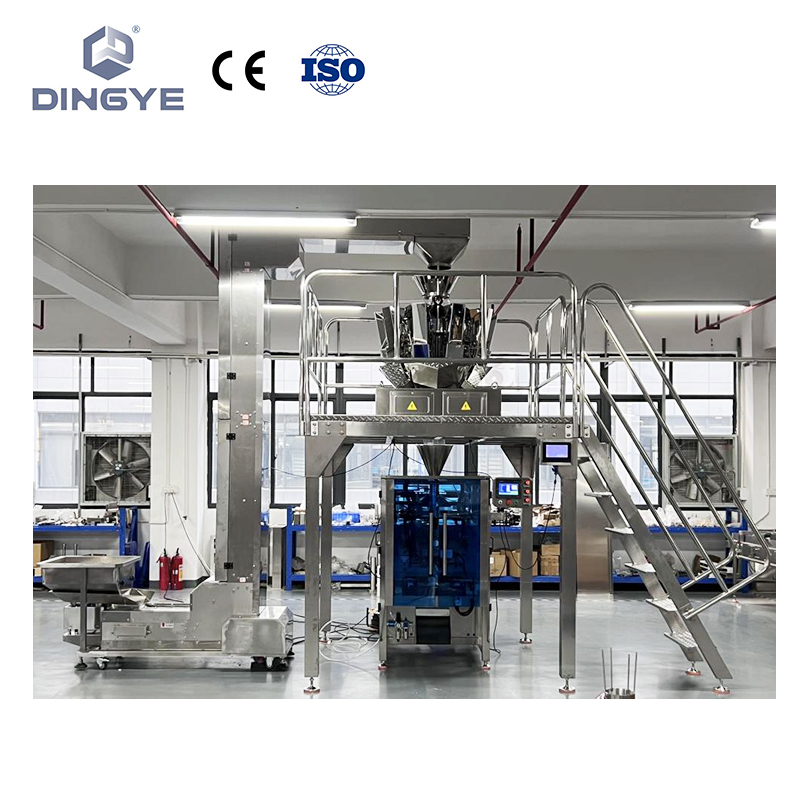

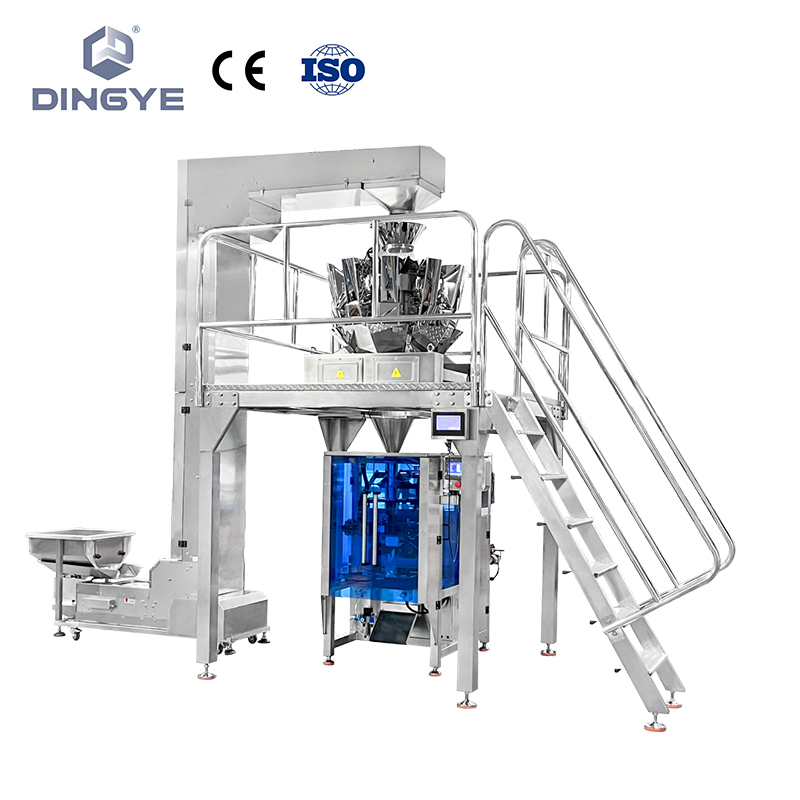

DYL series vertical packing machine

Model NO.: DYL-320 DYL-420

Quantity:

Product Description

Product Description

It is suitable for packaging bulk objects that require high precision measurement and are fragile. Such as puffed food, rice crust, jelly, candy, nuts, apple slices, sweet dumplings, dumplings, chocolates, small hardware, herbs, and so on.

1. Import PLC computer control system, human-machine screen, and easy touch screen operation.

2. With an imported servo film transporting system and mark sensor, accurate positioning, and perfect packing.

3. Perfect automatic alarm function to minimize the loss.

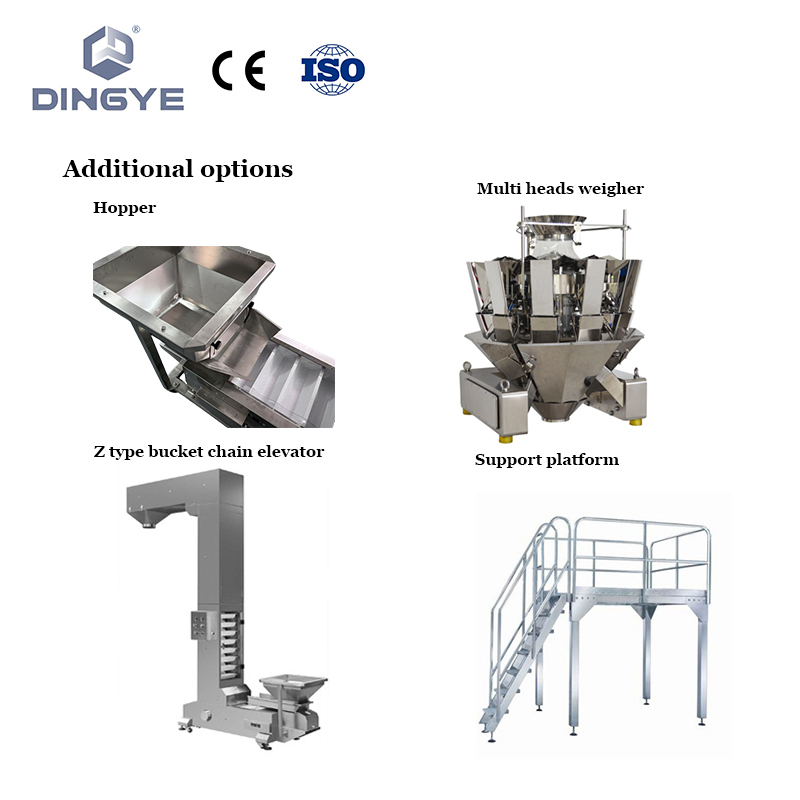

4. Combined with a metering device, it can finish the process of metering, feeding, filling, bag making, and printing.

5. Bag type: can make it with a pillow bag and a vertical bag according to customer needs.

Product Parameter

Model	DYL-320	DYL-420
Bag length	40-200mm	80-320mm
Bag width	50-150mm	50-200mm
Max. width of roll film	320mm	420mm
Packing material	OPP/CPP, OPP/PE,PET/PE	OPP/CPP, OPP/PE,PET/PE
Packing speed	50-60bags/min	5-60bags/min
Measuring range	150-1000ml	150-1000ml
Power Voltage	220V50HZ 2.2kW	220V50HZ 2.2kW
Machine Weight	300kg	500kg
Machine Dimension	15009101400mm	166211701410mm

Model	DYL-520	DYL-720
Bag length	80-420mm	100-500mm
Bag width	80-250mm	100-350mm
Max. width of roll film	520mm	720mm
Packing material	OPP/CPP, OPP/PE,PET/PE	OPP/CPP, OPP/PE,PET/PE
Packing speed	5-50bags/min	5-40bags/min
Measuring range	150-2000ml	500-3500ml
Power Voltage	220V50HZ/60HZ 2.5kW	220V50HZ/60HZ 3kW
Machine Weight	550kg	600kg
Machine Dimension	170013001580mm	184018002060mm

Model	DYL-820	DYL-1020
Bag length	100-550mm	100-700mm
Bag width	180-400mm	350-500mm
Max. width of roll film	820mm	1050mm
Packing material	OPP/CPP, OPP/PE,PET/PE	OPP/CPP, OPP/PE,PET/PE
Packing speed	5-30bags/min	5-15bags/min
Measuring range	6000ml	6000-8500ml
Power Voltage	220V50HZ/60HZ 5kW	380V50HZ/60HZ 3.2kW
Machine Weight	900kg	1150kg
Machine Dimension	178013501950mm	185014802230mm
