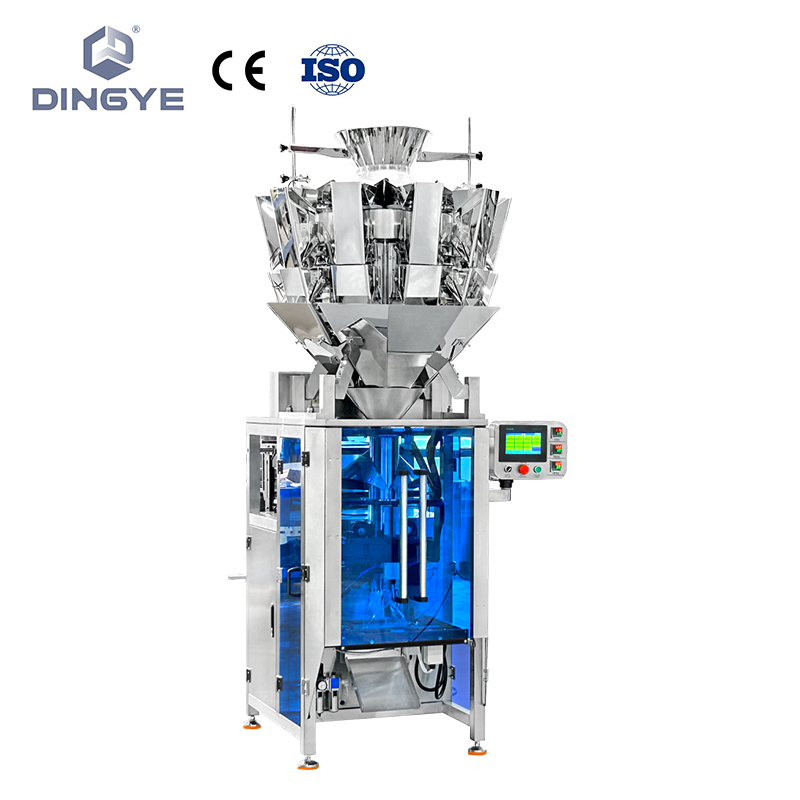

DYL-420T All in one  vertical packing machine
DYL-420T All in one  vertical packing machine
DYL-420T All in one  vertical packing machine
DYL-420T All in one  vertical packing machine
DYL-420T All in one  vertical packing machine

DYL-420T All in one vertical packing machine

Model NO.
DYL-420T
Quantity:
Product Description

1. Import PLC computer control system, human-machine screen, and easy touch screen operation.

2. With an imported servo film transporting system and mark sensor, accurate positioning, and perfect packing.

3. Perfect automatic alarm function to minimize the loss.

4. Combine with a metering device, it can finish the process of metering, feeding, filling, bag making, and printing.

5. Bag type: can make it with a pillow bag and a vertical bag according to customer needs.

Product Parameters
ModelDYL-420T
Bag SizeL 80-320mm,W 50-200mm
Packing Speed5-60bag/min
Max width of roll film420mm
Thickness of the film
0.04-0.09mm
Film pulling methodDouble belt pull film
Air Source supply0.8MPa
Power220V50HZ/60HZ 2.2KW
Measuring range150-1000ml
Machine weight500kg
Machine Size1665*1170*2650mm
