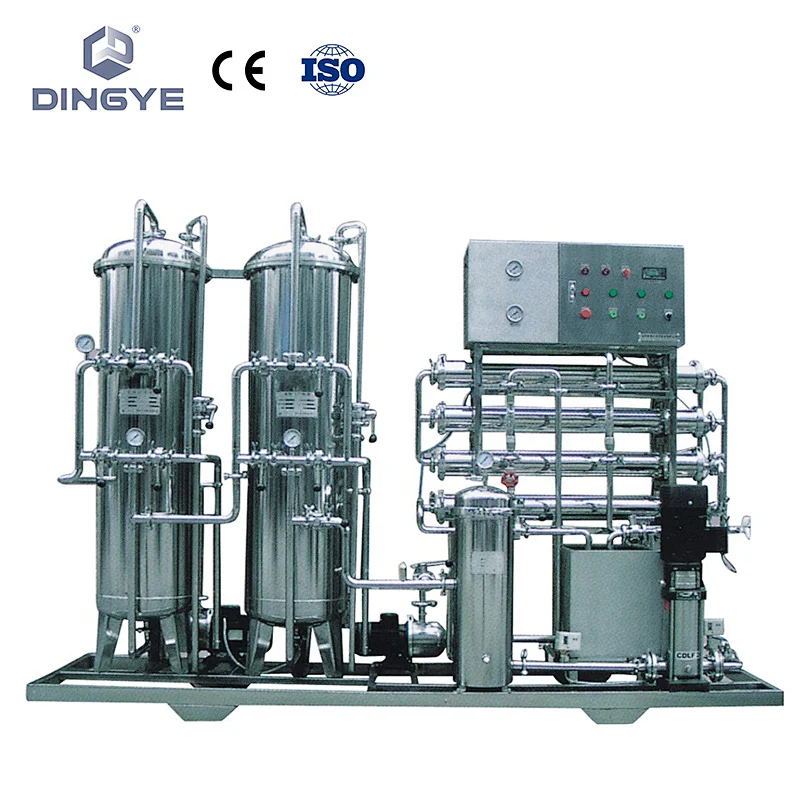

All-in-One Reverse Osmosis Water Treatment
All-in-One Reverse Osmosis Water Treatment

All-in-One Reverse Osmosis Water Treatment

Model NO.
P-RO series
Quantity:
All-in-one reverse osmosis pure water machine adopt equipment of mechanically filter, active carbon filter and precision filter as pretreatment according to national standard of pure water. Main part of machine is single reverse osmosis device or two classes reverse osmosis device; Finally use sterilization technology of ozone. It removes grain, impurity, colloid and residual chloride through reasonable and high efficient pretreatment system; Then remove microbe such as bacteria, virus and most heavy metal plasma that is harmful to human body through use Hi-tech separation technology of reverse osmosis film. The ozone sterilizer and corresponding water tank is equipped with machine.

Reverse osmosis use enough pressure to separate solvent (usually it is water) of liquor through film of reverse osmosis (or semi-penetrative membrane), so it is called to reverse osmosis. Reverse osmosis, as high efficient technology of desalting, can remove impurity such as inorganic ion, bacteria, virus, and colloid etc in original water so that obtain high quality pure water. Reverse osmosis method that is bigger than pressure of penetration can be used to separate, extract, purify and concentrate according to different penetration pressure for different material.
This system is widely applied to drinkable water project, industrial pure water project, applied in the food, beverage industry, pharmaceutical, chemical, electronic, Petroleum and chemical industry.

Specification:
ModelP-RO-0.5P-RO-1P-RO-2P-RO-3P-RO-5P-RO-10
Capacity0.5T/H1T/H2T/H3T/H5T/H10T/H
Pre-filter capacity1 T/H2 T/H3 T/H5 T/H7 T/H12 T/H
Ozone generator3.5 g /h3.5 g /h6 g /h10 g /h15 g /h15 g /h
Power2KW3 KW4 KW5 KW6 KW16 KW
Diameter of mechanical filterΦ 300mmΦ 400 mmΦ 500 mmΦ 600 mmΦ 800 mmΦ 1300 mm
Diameter of active carbon filterΦ 300 mmΦ 400 mmΦ 500 mm


Φ 600 mmΦ 600 mmΦ 1100 mm
Diameter of RO membrane4"4"8"8"8"8"
Quantity of RO membrane2 pcs4 pcs2 pcs     3 pcs4 pcs9 pcs
Size of water tank (mm)Φ 700 x 1800Φ 1000 x 1900Φ 1300 x 2200Φ 1600 x 2250Φ 1800 x 2830Φ 2250 x 3500
Machine Size (mm)1270 x 750 x 16302730 x 730 x 19802830 x 830 x 20703100 x 920 x 22002620 x 920 x 16003620 x 1000 x 1800
