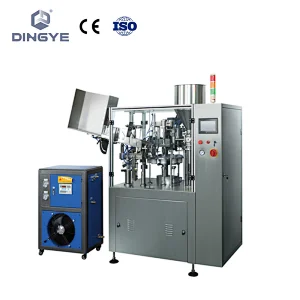

FWJ-60A Automatic tube filling and sealing machine
FWJ-60A Automatic tube filling and sealing machine
FWJ-60A Automatic tube filling and sealing machine
FWJ-60A Automatic tube filling and sealing machine
FWJ-60A Automatic tube filling and sealing machine
FWJ-60A Automatic tube filling and sealing machine
FWJ-60A Automatic tube filling and sealing machine
FWJ-60A Automatic tube filling and sealing machine
FWJ-60A Automatic tube filling and sealing machine

FWJ-60A Automatic tube filling and sealing machine

Model NO.
FWJ-60A
Quantity:


Feature and description of the machine
This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, tail folding, batch number embossing (include manufacture date) automatically. Its ideal equipment for lead tube, ALU tube, plastic tube and laminated tube filling and sealing for cosmetic, pharmacy, foodstuff and bond.
• Motor, controlled by AC inverter.

304Stainless Steel to meet GMP Standard

Automated Pneumatic Tube Loading System

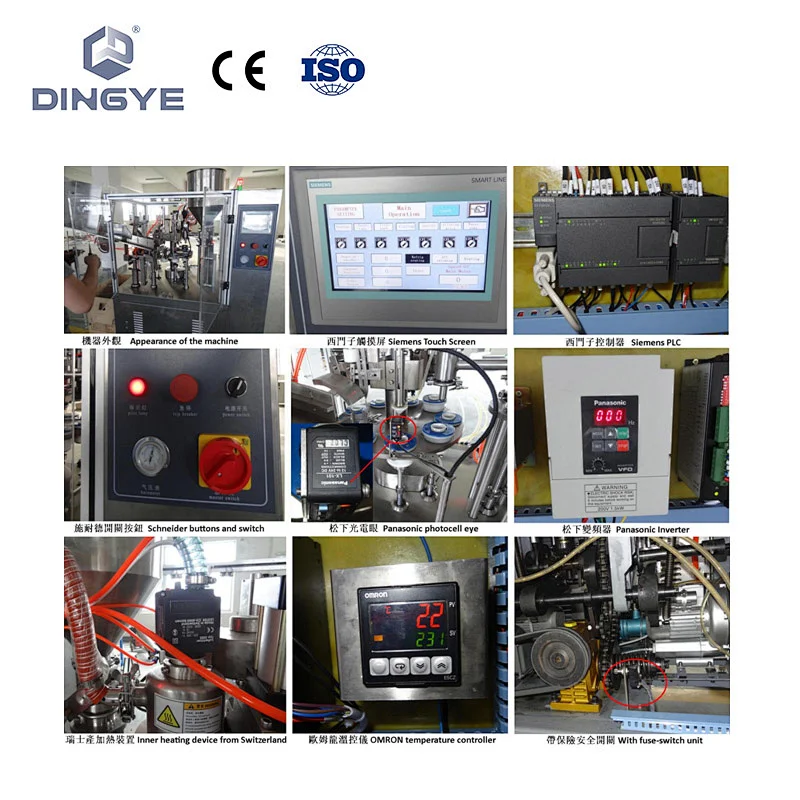

• Siemens PLC controller and color touch screen

•Automatic  Eye mark System andTube counting sensor

• Digital and Intelligent Temperature controllers and Cooling Systems,suitable for various tubes sealing.

• With safety switch ,more safe .


. Usually the Tube diameter and mould with sizes:
  12.16 19 22 25 28 .30 35 40 45 50mm

ModelFWJ-60A/FWJ-60B
Tube materialPlastic Composite/Aluminum plastic composite tubes
TubediameterΦ15Φ50mm (plastic tube ) Φ15Φ30mm(metal tube )
Tube length80-250mmcustomizable
Filling volume5600ml/tubeadjustable
Filling accuracy≤±1%
Product capacitypc/h30-60tubes/min
PRESSURED AIR 0.55-0.65mpa (better to use more than 1mpa)
Motor power1.1kw(380V/220V 50Hz ,three phase)
Heat sealing power3.0kw
Machine size (mm)2620*1020*1980
Machine weight(kg)800
