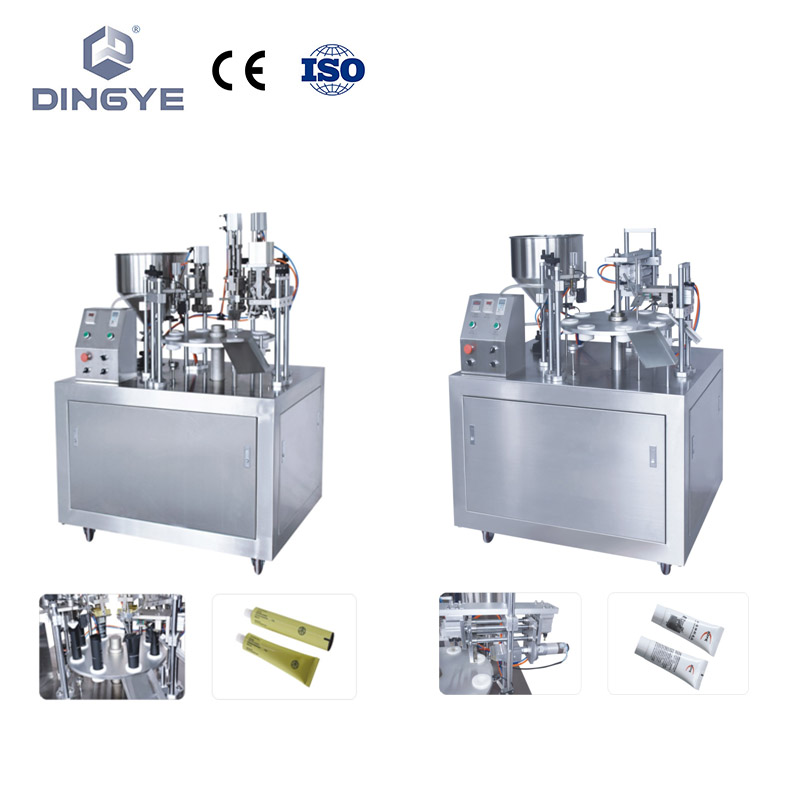

Feature and description of the machine
This machine is suitable for filling and sealing various plastic tubes and aluminum composite tubes, with the function of filling, sealing, date printing and end cutting. It is widely applied in the industry of daily chemical, pharmacy products, food, cosmetics etc.
• 304Stainless Steel to meet GMP Standard
•Automatic Eye mark System andTube counting sensor
• Digital and Intelligent Temperature controllers and Cooling Systems,suitable for various tubes sealing.
• With safety switch ,more safe .
. Usually the Tube diameter and mould with sizes:
12.16， 19， 22， 25， 28 .30， 35， 40， 45， 50mm
.Technical Parameter:
This machine is suitable for filling and sealing various plastic tubes and aluminum composite tubes, with the function of filling, sealing, date printing and end cutting. It is widely applied in the industry of daily chemical, pharmacy products, food, cosmetics etc.
• 304Stainless Steel to meet GMP Standard
•Automatic Eye mark System andTube counting sensor
• Digital and Intelligent Temperature controllers and Cooling Systems,suitable for various tubes sealing.
• With safety switch ,more safe .
. Usually the Tube diameter and mould with sizes:
12.16， 19， 22， 25， 28 .30， 35， 40， 45， 50mm
.Technical Parameter:
| Model | FWJ-30A/FWJ-30B |
| Tube material | Plastic Composite/Aluminum plastic composite tubes |
| Tubediameter | Φ15—Φ50mm (plastic tube ) Φ15—Φ30mm(metal tube ) |
| Tube length | 30-220mm（customizable） |
| Filling volume | 5—300ml/tube（adjustable） |
| Filling accuracy | ≤±1% |
| Product capacity（pc/h） | 30-60tubes/min |
| PRESSURED AIR | 0.55-0.65mpa (better to use more than 1mpa) |
| Heat sealing power | 1.4kw |
| Machine size (mm) | 1100*780*1450 |
| Machine weight(kg) | 350 |
