Automatic double-sides labeling machine
Automatic double-sides labeling machine
AR-60 Automatic double-sides labeling machine
Automatic double-sides labeling machine
AR-60 Automatic double-sides labeling machine

AR-60 Automatic double-sides labeling machine

Model NO.
AR-60
Quantity:
Feature and description of the machine
AR-60 Automatic double-sides labeling machine is suitable to the medicine, the date, food industry etc cylindrical container or small the conical taper container of ChanBiao, double standard automatic positioning labeling. This machine expanding strong! Can be equipped with all kinds of printer to print, online real-time can use single, also can use connect Product line.

1The step or the servo motor system.
2Clutch design, make the label tension force more stable, and easy to improve labeling precision.
3Advanced color man-machine interface control system.
4Germany Siemens PLC control, high reliability.
5Use Germany, Japan magic eye.
6Machine structure is simple, compact, easy to operation and maintenance.
7Can add ribbon typewriter, or heat transfer machine and automatic send bottle opener (optional).

Technical Parameter:
ModelAD-60
Label width 20-180mm
Label length20-200mm
Product rangeL: 20mm250mm
 W30mm90mm
  H60mm280mm
The outer diameter of the label roll ≤Φ200mm
The core diameter of the label roll φ76mm
Speed30-200 pcs/min
Accuracy±1mm
Machine size (L *W* H) 2500*1600*1600
Machine weight 180kg

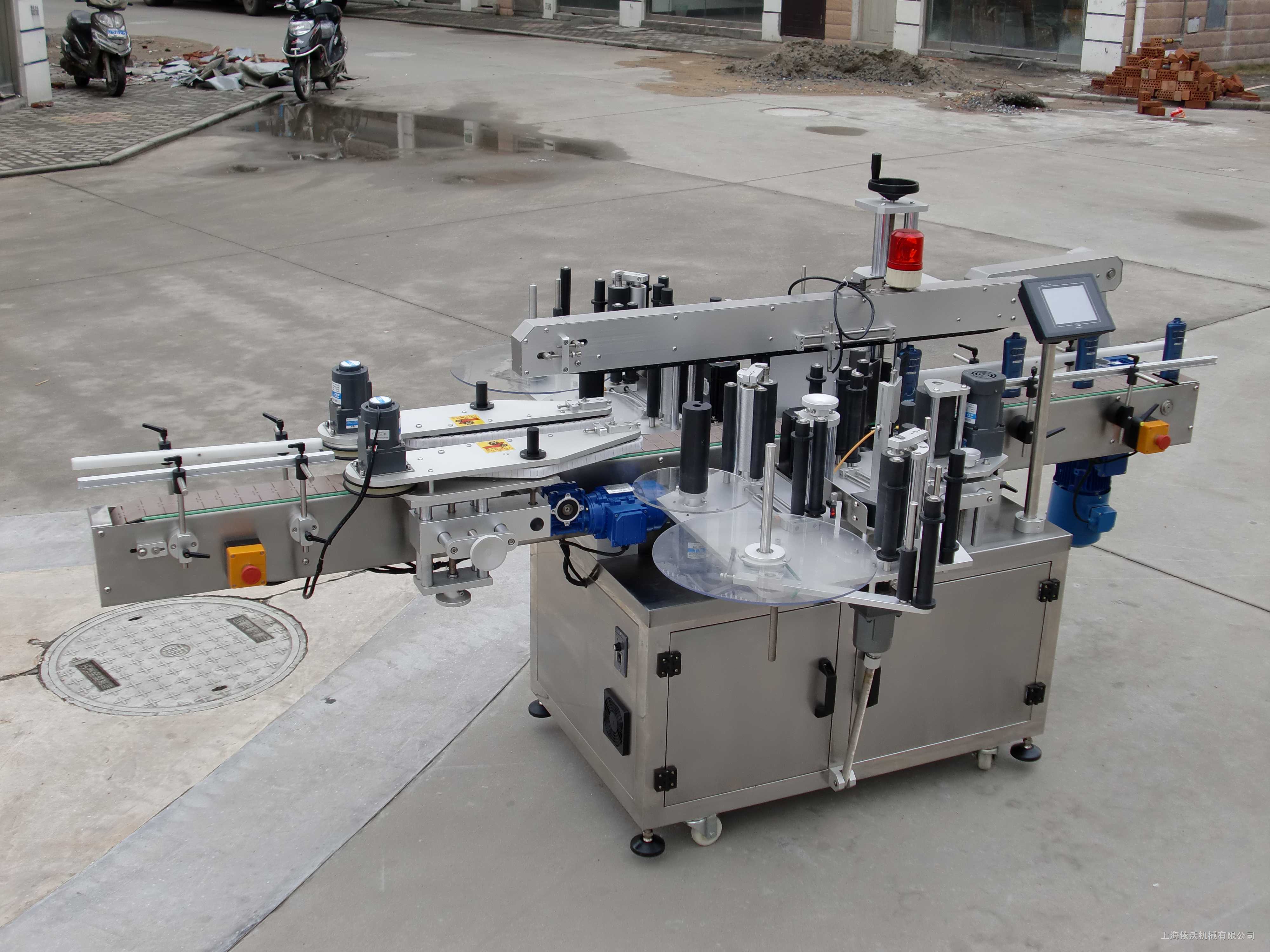

Machine view :

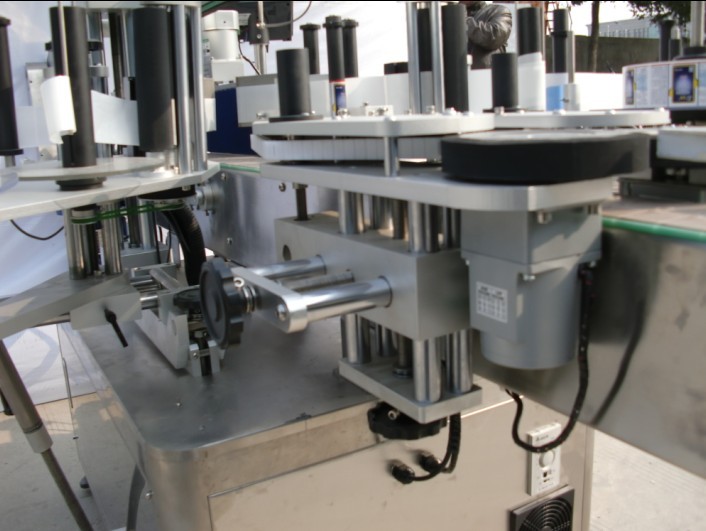

Handle adjustable for the width:

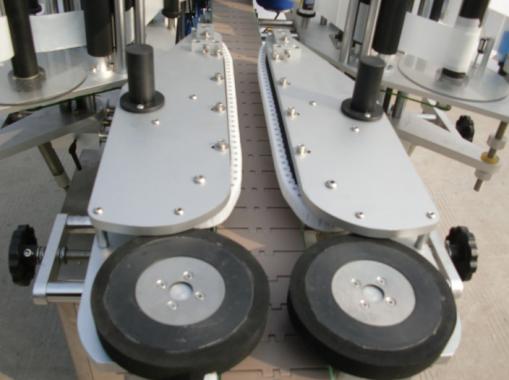

Double wheel feeding:

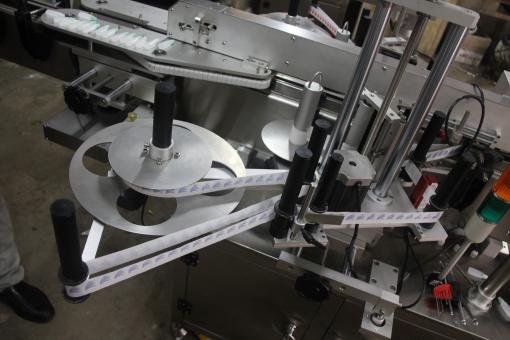

Label roll holding system

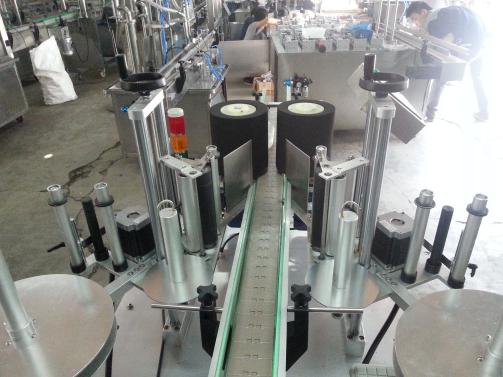

Double labeling system

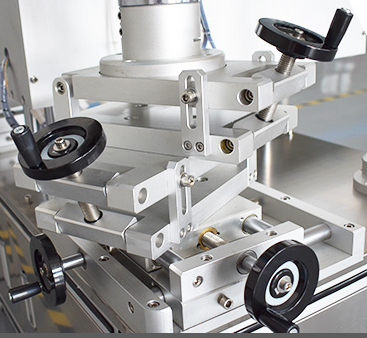

Can be adjusted at multiple angles

Sample view
