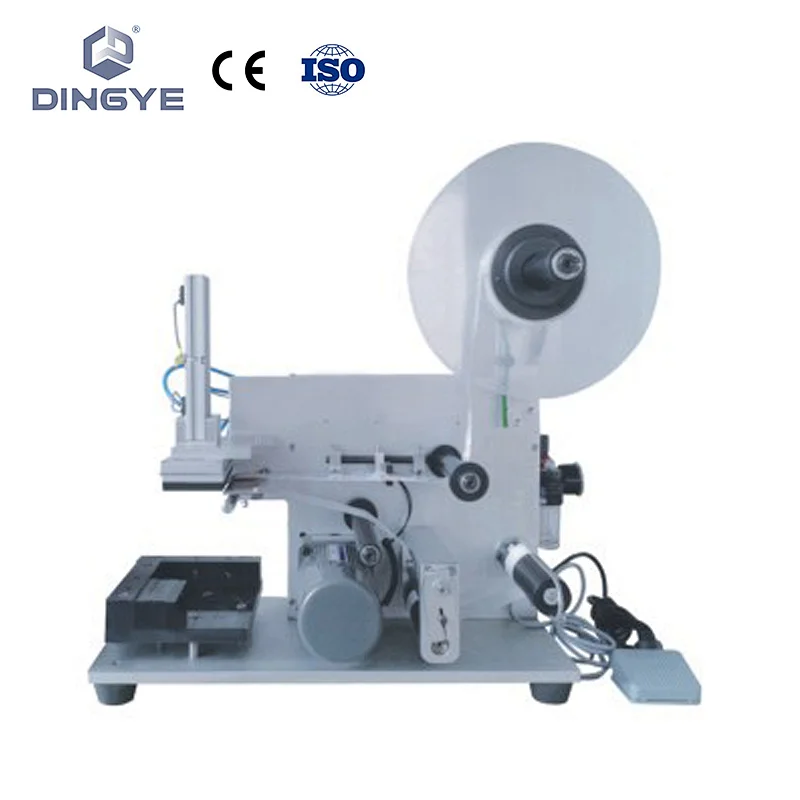

Semi-automatic Flat labeling machine
1. Working principle:
Imported high-precision intelligent electric eye and high-reliability computer chip program controller (PLC) are used to control the labeling. The air pressure is used to adsorb the self-adhesive label on the label head, and the labeling head cylinder is used for labeling.
2.Application:
1. Flat labeling of various objects.
2. Labeling on the flat surface of square bottles of cosmetics and medicines.
3. Labels or anti-counterfeit labels on the flat surface of various boxes.
4. Labeling on the surface of LCD screens and electronic components is widely used in flat labeling films in cosmetics, daily chemicals, electronics, food, medicine and other industries.
3. Product advantages:
1. The efficiency is as high as 60 times per minute.
2. The labeling head is adjustable up and down, front and rear, to meet the labeling needs of different workpieces.
3. Good labeling effect, no bubbles, no wrinkles, high grade, and increase product competitiveness.
4. Electronic components such as brand PLC and sensors are selected, and the performance is extremely stable.
5. It can be flexibly equipped with production line for online labeling, or stand-alone labeling.
6. Modular design, convenient maintenance and low maintenance cost.
Technical Parameter:
Sample view
1. Working principle:
Imported high-precision intelligent electric eye and high-reliability computer chip program controller (PLC) are used to control the labeling. The air pressure is used to adsorb the self-adhesive label on the label head, and the labeling head cylinder is used for labeling.
2.Application:
1. Flat labeling of various objects.
2. Labeling on the flat surface of square bottles of cosmetics and medicines.
3. Labels or anti-counterfeit labels on the flat surface of various boxes.
4. Labeling on the surface of LCD screens and electronic components is widely used in flat labeling films in cosmetics, daily chemicals, electronics, food, medicine and other industries.
3. Product advantages:
1. The efficiency is as high as 60 times per minute.
2. The labeling head is adjustable up and down, front and rear, to meet the labeling needs of different workpieces.
3. Good labeling effect, no bubbles, no wrinkles, high grade, and increase product competitiveness.
4. Electronic components such as brand PLC and sensors are selected, and the performance is extremely stable.
5. It can be flexibly equipped with production line for online labeling, or stand-alone labeling.
6. Modular design, convenient maintenance and low maintenance cost.
Technical Parameter:
| Model | MT-60/MT-60C |
| Voltage | AC220V/50hz |
| Power | 200W |
| Labeling speed | 20-40pcs/min |
| Precision | ±1 |
| Label roll diameter | ≤φ200mm |
| Inner diameter of roll | φ75 |
| Max Label size | W20-110 L20-60mm can customized |
| Machine size | 300*200*400mm |
| Machine weight | 20kg |
Sample view
