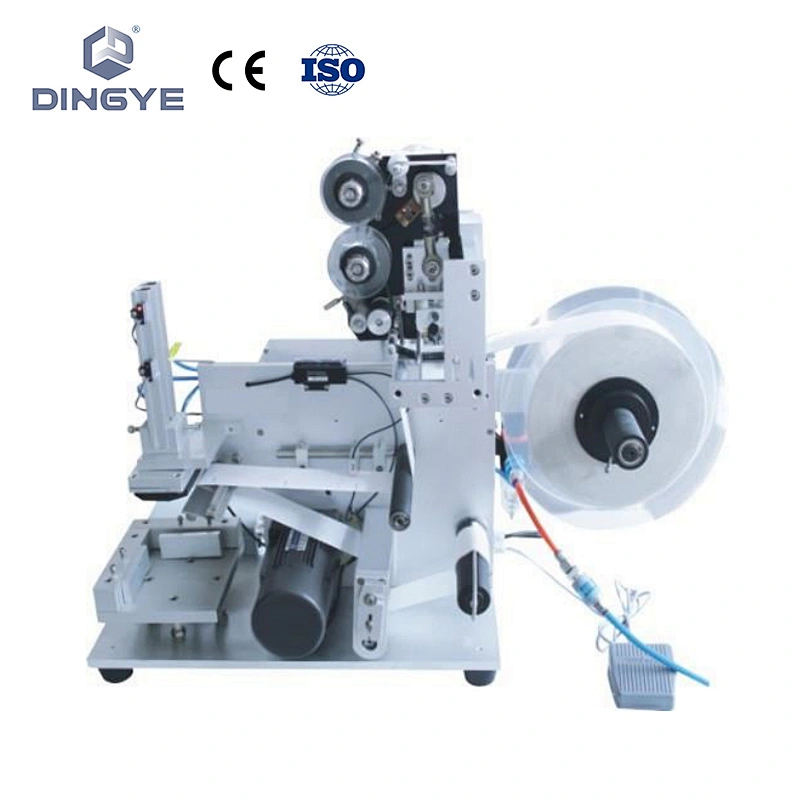

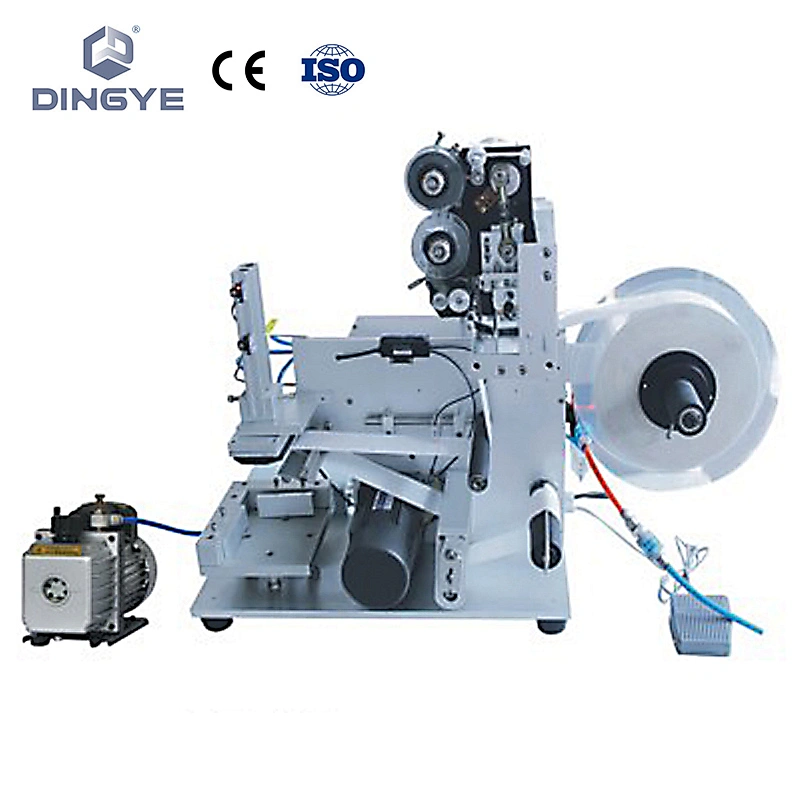

MT-60C Semi-automatic Flat labeling machine with coding
Flat labeling machine with coding
MT-60C Semi-automatic Flat labeling machine with coding

MT-60C Semi-automatic Flat labeling machine with coding

Model NO.
MT-60C
Quantity:
Semi-automatic Flat labeling machine with coding
1. Working principle:

Imported high-precision intelligent electric eye and high-reliability computer chip program controller (PLC) are used to control the labeling. The air pressure is used to adsorb the self-adhesive label on the label head, and the labeling head cylinder is used for labeling.
2.Application:
1. Flat labeling of various objects.
2. Labeling on the flat surface of square bottles of cosmetics and medicines.
3. Labels or anti-counterfeit labels on the flat surface of various boxes.
4. Labeling on the surface of LCD screens and electronic components is widely used in flat labeling films in cosmetics, daily chemicals, electronics, food, medicine and other industries.
3. Product advantages:
1. The efficiency is as high as 60 times per minute.
2. The labeling head is adjustable up and down, front and rear, to meet the labeling needs of different workpieces.
3. Good labeling effect, no bubbles, no wrinkles, high grade, and increase product competitiveness.
4. Electronic components such as brand PLC and sensors are selected, and the performance is extremely stable.
5. It can be flexibly equipped with production line for online labeling, or stand-alone labeling.
6. Modular design, convenient maintenance and low maintenance cost.

Technical Parameter:
Model MT-60/MT-60C
VoltageAC220V/50hz
Power200W
Labeling speed20-40pcs/min
Precision±1
Label roll diameter≤φ200mm
Inner diameter of rollφ75
Max Label sizeW20-110   L20-60mm can customized
Machine size300*200*400mm
Machine weight20kg

Sample view
