Automatic PE film L-Type Sealing machine
Automatic PE film L-Type Sealing machine
Automatic PE film L-Type Sealing machine
Automatic PE film L-Type Sealing machine
Automatic PE film L-Type Sealing machine
Automatic PE film L-Type Sealing machine
Automatic PE film L-Type Sealing machine
Automatic PE film L-Type Sealing machine
Automatic PE film L-Type Sealing machine
Automatic PE film L-Type Sealing machine
Automatic PE film L-Type Sealing machine
Automatic PE film L-Type Sealing machine
Automatic PE film L-Type Sealing machine

Automatic PE film L-Type Sealing machine

Model NO.
DQL6560PEG
Quantity:
Summary:

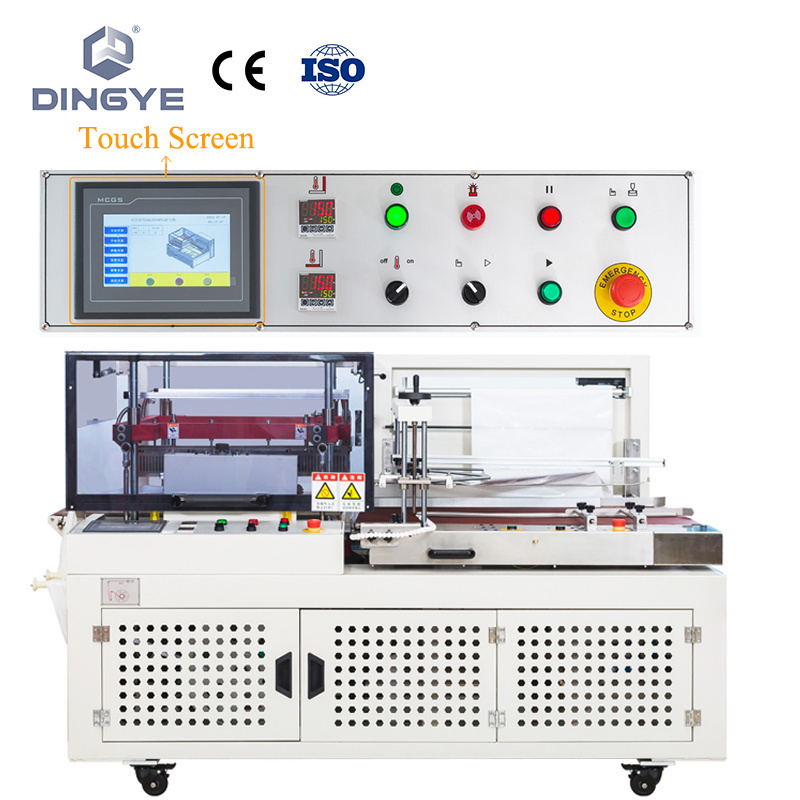

The automatic DQL6560PEG L type sealer is an integrated automatic production line.
Products are fed by conveyor into the plastic sheeting and cut automatically.

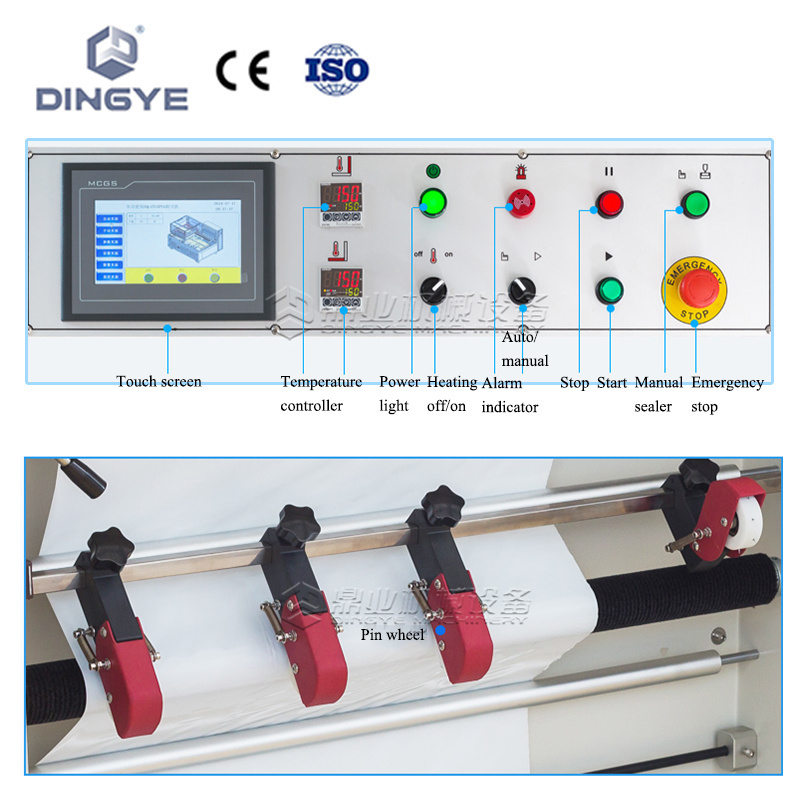

It has a PLC program control as well as a specially designed protector on the cutting head.

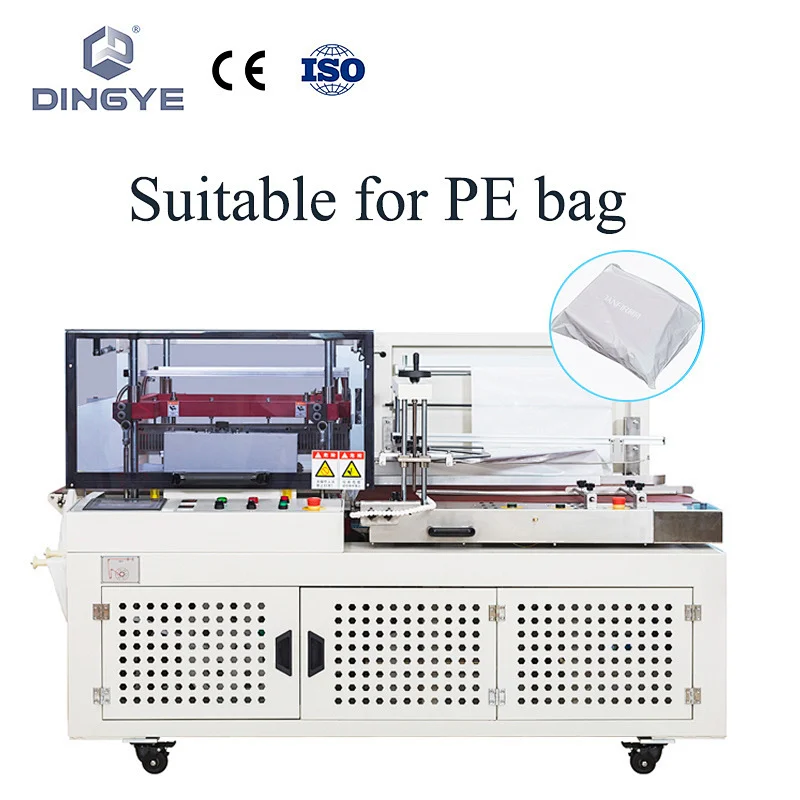

Center fold POF/PVC film is used to automatically dispense,wrap,and seal over your disired product.  Once the product is sealed it then automatically runs through the thermal shrink tunnel where the shrink film is heat shrunk tightly around product.It can cut PE film.

Specification:
ModelDQL6560PEG
Voltage220V 50HZ/60HZ
Power3.2KW
Working table height810mm
Conveyor loading 30kg
Air pressure(Kg/cm2) )5
Capacity0-30pcs
Packing MaterialPE(0.03-0.06mm)    POF(0.012-0.038mm)
Max packing size(mm)W+2H≤700mm,H≤230mm
Min packing size (mm)L>=120mm
Max Sealing sizeL550*W500*H220mm
Max packing sizeL100*W60*H5mm
Machine sizeL2064*W1650*H133
