Application:

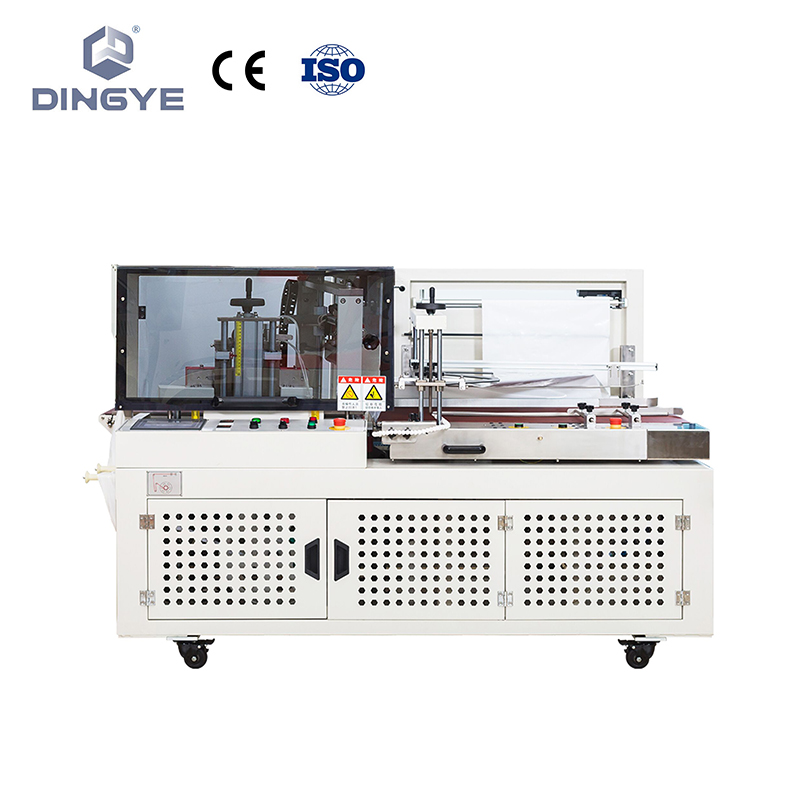

This side sealer machine DQL6025S is widely used in photo frames, aluminum, profile, water, pipe, wood floor, and other industries shrink packaging.
Summary:

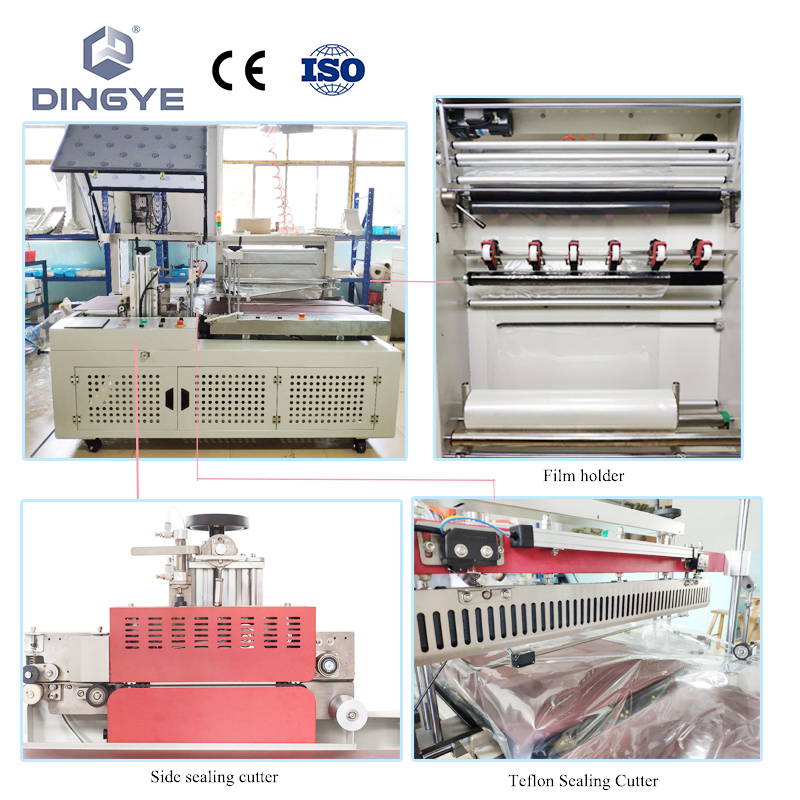

The automatic side sealer is an integrated automatic production line. Products are fed by the conveyor into the plastic sheeting and cut automatically.It has a PLC program control as well as a specially designed protector on the cutting head. It also uses a seal and stick-free knife during operation which guarantees consistent smoke-free running.
This side sealer machine DQL6025S is widely used in photo frames, aluminum, profile, water, pipe, wood floor, and other industries shrink packaging.
Summary:
The automatic side sealer is an integrated automatic production line. Products are fed by the conveyor into the plastic sheeting and cut automatically.It has a PLC program control as well as a specially designed protector on the cutting head. It also uses a seal and stick-free knife during operation which guarantees consistent smoke-free running.
| Model | DQL6025S(Side sealer) |
| Power Source | AC220V 50Hz/60 Hz |
| Sealing Temperature | Relation with the thickness of the plastic film. Normally,it is 140ºC-180ºC for horizontal sealing and 250ºC-280ºC for side sealing |
| Max.packing size/(mm) | L:∝ W+H≤6000,H≤220(mm) |
| Capacity | 0-25pcs/min |
| The thickness of film/(mm) | 0.015-0.05(mm) |
| Air pressure/(Kg/cm2) | 5-6(Kg/cm2) |
| Packing Material | POF |
| Machine size/ (mm) | L2600×W1450×H1680 |
| Weight | 500kg |
| Model | DSC6030A |
| Voltage | 380V/50~60HZ |
| Power | 26.32KW |
| Conveyor speed | 0~10m/min |
| Tunnel size | 1500×600×300mm |
| Conveyor loading | 20Kg |
| Machine size | L1810×W976×H1563 |
