Model NO.
QSJ-5040A
Quantity:
Automatic Sleeve Wrapper with CE Approval

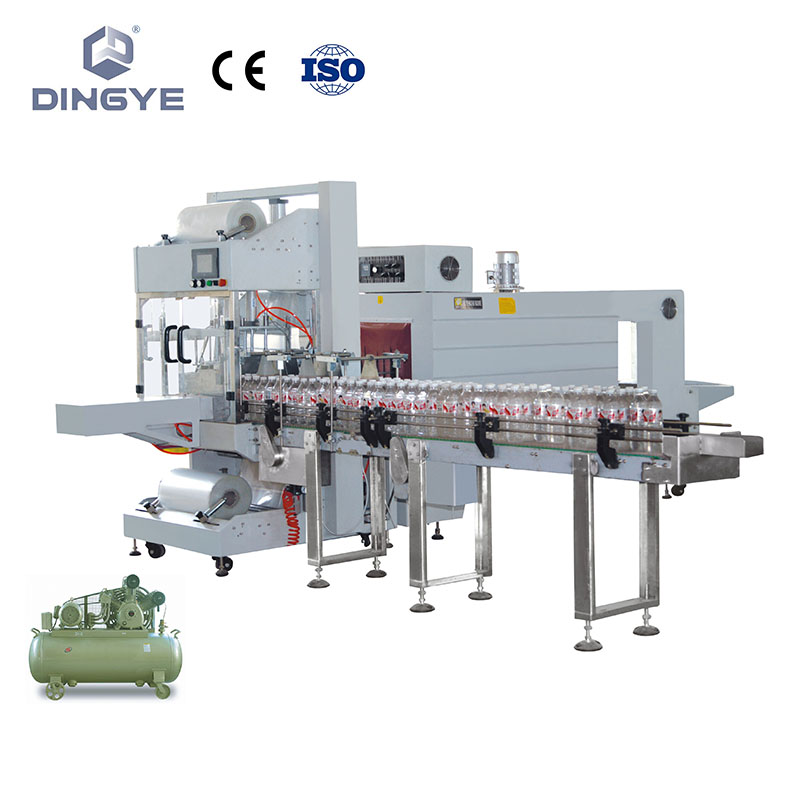

QSJ-5040A automatic sleeve wrapper is suitable for wrapping products such as pop-cans, bottles, etc, with bottom-tray or without bottom-tray, working with BSE-5040A jet PE-film shrink tunnel or other PE shrink tunnel.

Characteristic:

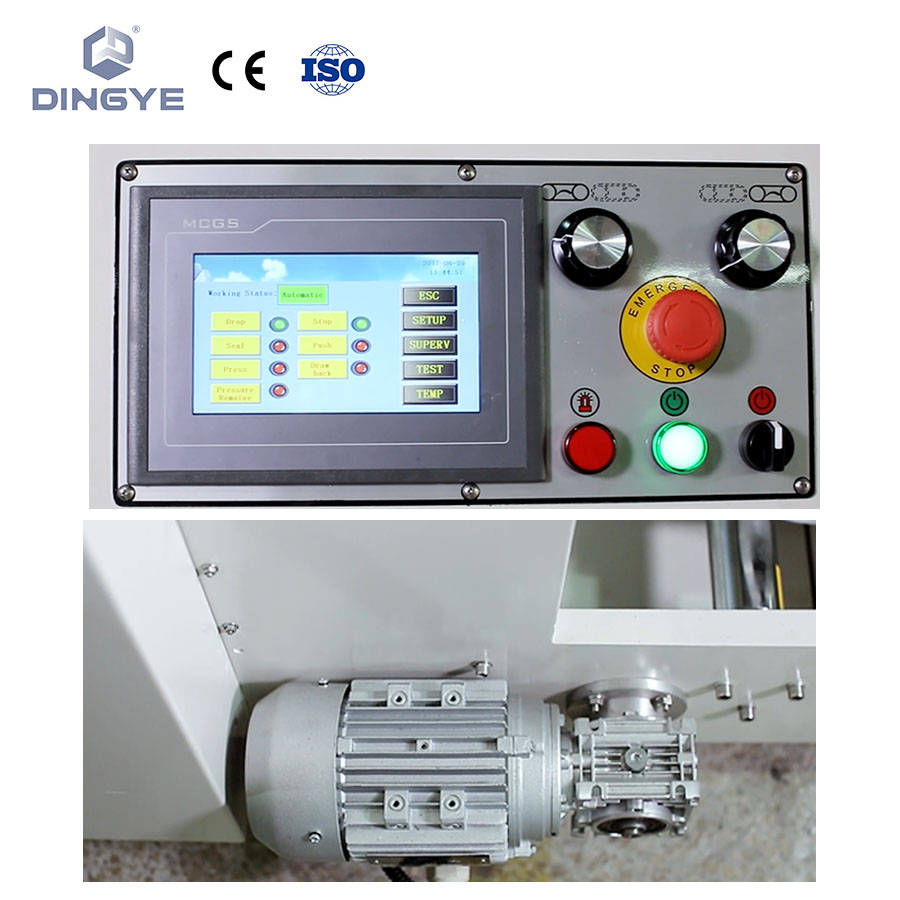

1. The Machine adopts the advanced touch screen which makes operation easier, Schneider programmable logic controller (PLC), Schneider AC contactor, AirTAC cylinder, and all the rest parts adopt international famous brand.
2. Upper and down electromagnetic switch prevents sealing mistakes, and protect operator.
3. Automatic alarm security system protects machine and operator.
4. Large power conveyer motor, with stepless speed regulating, ensures smooth feeding.
5. Two large power fans make the temperature of shrink tunnel every even and stable, this ensures the excellent effect of shrinking in one time.
6. Super cooling system cools the packing and makes the figuration perfectly.
Model

QSJ -5040A

Model

BSE -5040A

Power source

3phase 220V/380V 50-60HZ

Power source

3phase 220V/380V 50-60HZ

Power

3KW

Heater power

20KW

Capacity

600-800 pcs/hour

Conveyer speed

0 -10m /minute

Working air pressure

0.4 -0.6 MPa

Tunnel size(L*W*H)

1500*500* 400mm

Width/thickness of the film

Max. 590mm /0.03 - 0.25mm

Conveyer loading

50KGS Max.

Max. packing dimension(L*W*H)

420*300*350mm

Machine size(L*W*H)

2500*820* 1680mm

Min. packing dimension(L*W*H)

250*50* 100mm

Machine weight

470KGS

Conveyor size (L*W*H)

2600*410*400mm

Shrink film

PE, POF, PVC, PP

Machine size(L*W*H)

1060*1600*1930mm





Machine weight

370kg
