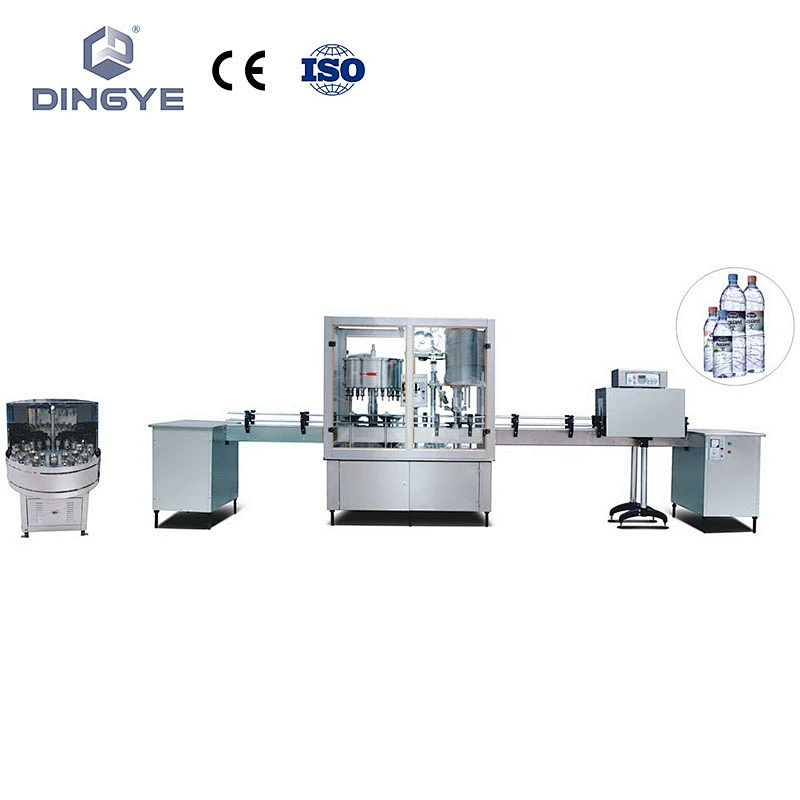

BF2000 Production Line of Bottle Washing, Filling and Capping Machine

Product Description

This production line completes bottle semi-auto washing, filling, capping, label shrink in one operation.

It applies to fill plastic bottle or glass bottle with liquid like water, wine and juice and so on. Capacity 2000BPH (standard 500ml). Bottle volume varies from 300ml to 1500ml. This production line fits to small or medium amount productivity.

Specification:

Name & Model	Capacity	Working Position	Volume of bottle	Power	Dimension	Weight

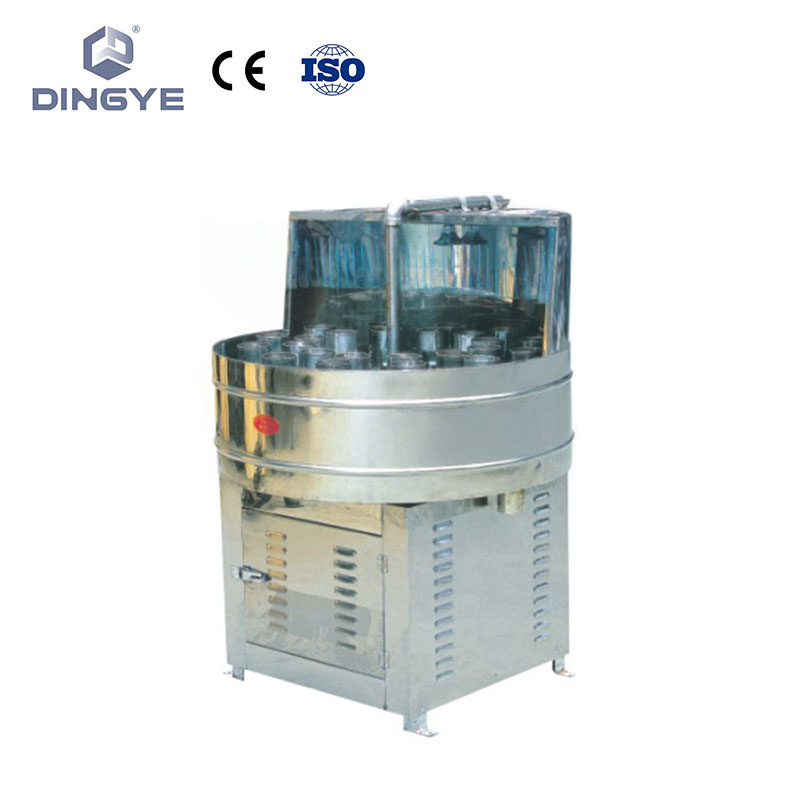

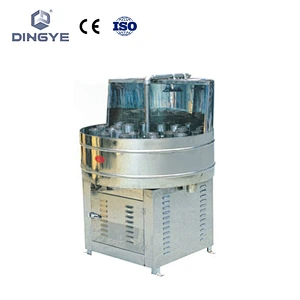

CP-30 Washer	1500-2000BPH	30 head	300-1500ML	0.55Kw 220/380V	100x100x 140CM	200Kgs
GC-12 Filler	1500-3000 BPH	12	200-1500ML	0.75Kw 220/380V	105x95x 190CM	450Kgs
GC-24 Filler	2000-4000 BPH	24	300-1500ML	1.1Kw 220/380V	165x165x 190CM	850Kgs
YQX-3 Capper	2000 BPH	1	350-1500ML	0.55Kw 220V	105x95x 190CM	500Kgs
BSL 1535 Labeler	1500-2000 BPH		200-1500ML	3.5Kw 220/380V	105x60x 80CM	65Kgs
