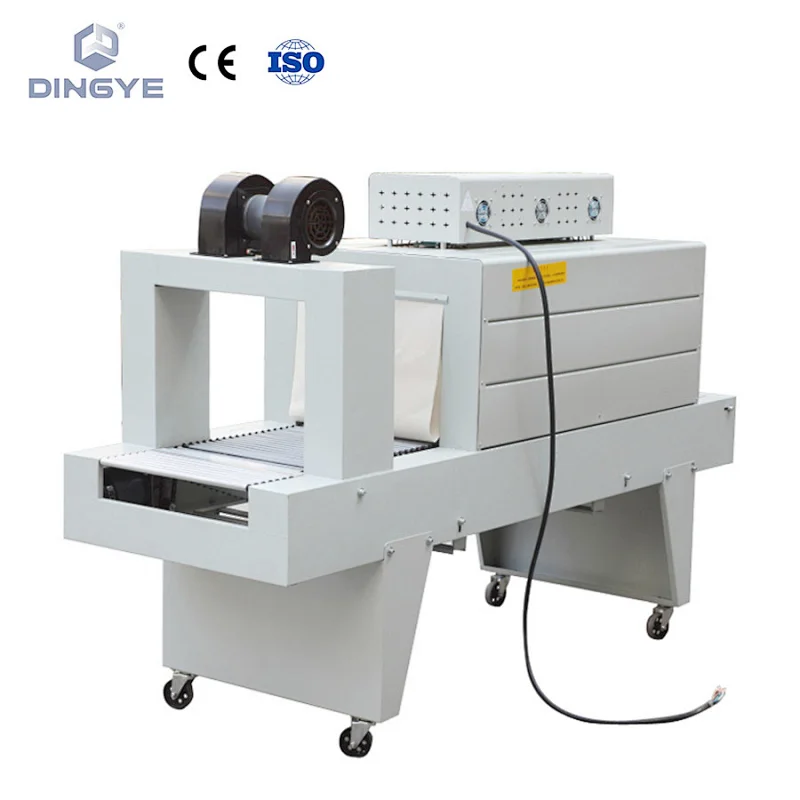

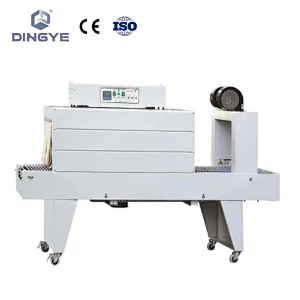

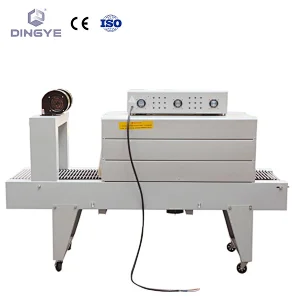

BSE6040 PE Film shrink packaging machine

Product Description

The BSE series PE film shrink packaging machine is designed especially for PE shrink film. However it is suitable for other types shrink films.

The machine adopts digital temperature controller, which makes operation easier.

Quartz heating pipes are located on the top, bottom and sides of the shrinking tunnel.

Two fans in electricity box cools down electricity box in order to protect electronics.

Conveyor motor cools down by fan underneath.

The powerful fan produces even hot airflow inside of shrink tunnel.

The speed of the conveyer is adjustable.

Conveyor has option of chain roller and iron net conveyor for choice.

Specification:

Model	BSE6040
Power supply	3phase 220V/380V 50-60HZ
Heater power	20KW Adjuster
Conveyer speed	0-10m/minute
Tunnel size(L*W*H)	1800*600*400mm
Conveyer loading	25KGS MAX.
Machine size	2800*880*1570mm
Machine weight	285KG
Shrink film	PE,POF,PVC,PP
