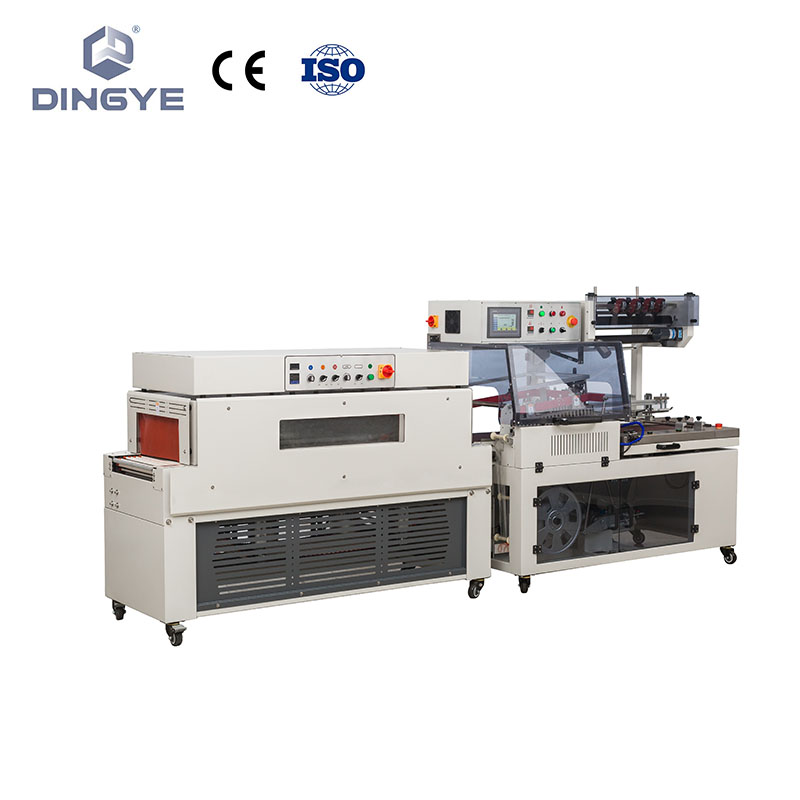

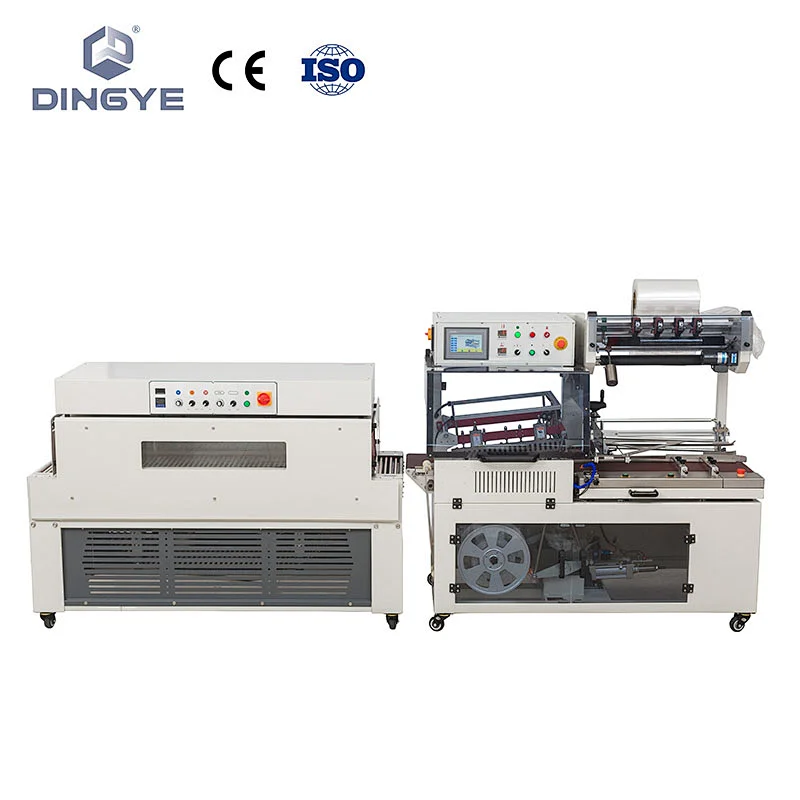

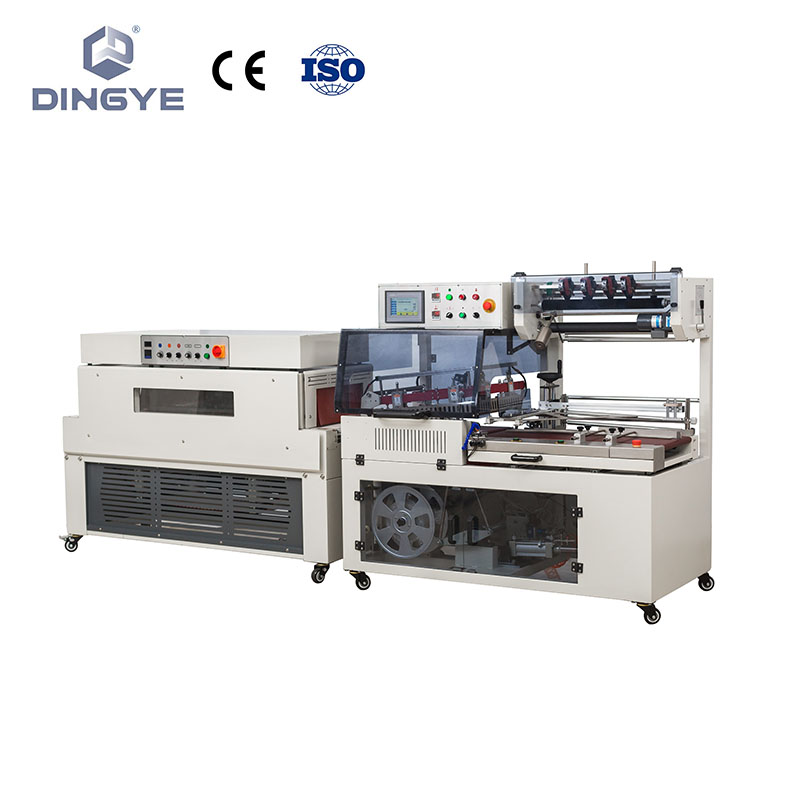

DQL5545SG High Speed Automatic L sealer & DSC4525L Shrink Tunnel
DQL5545SG High Speed Automatic L sealer & DSC4525L Shrink Tunnel
DQL5545SG High Speed Automatic L sealer & DSC4525L Shrink Tunnel
DQL5545SG High Speed Automatic L sealer & DSC4525L Shrink Tunnel
DQL5545SG High Speed Automatic L sealer & DSC4525L Shrink Tunnel
DQL5545SG High Speed Automatic L sealer & DSC4525L Shrink Tunnel
DQL5545SG High Speed Automatic L sealer & DSC4525L Shrink Tunnel
DQL5545SG High Speed Automatic L sealer & DSC4525L Shrink Tunnel
DQL5545SG High Speed Automatic L sealer & DSC4525L Shrink Tunnel
DQL5545SG High Speed Automatic L sealer & DSC4525L Shrink Tunnel
DQL5545SG High Speed Automatic L sealer & DSC4525L Shrink Tunnel
DQL5545SG High Speed Automatic L sealer & DSC4525L Shrink Tunnel
DQL5545SG High Speed Automatic L sealer & DSC4525L Shrink Tunnel
DQL5545SG High Speed Automatic L sealer & DSC4525L Shrink Tunnel
DQL5545SG High Speed Automatic L sealer & DSC4525L Shrink Tunnel
DQL5545SG High Speed Automatic L sealer & DSC4525L Shrink Tunnel
DQL5545SG High Speed Automatic L sealer & DSC4525L Shrink Tunnel

DQL5545SG High Speed Automatic L sealer & DSC4525L Shrink Tunnel

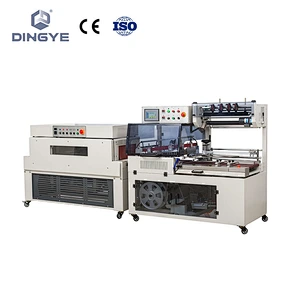

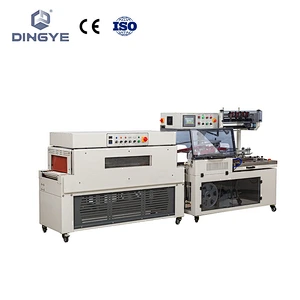

Model NO.
DQL5545SG+DSC4525L
Quantity:
Summarize:

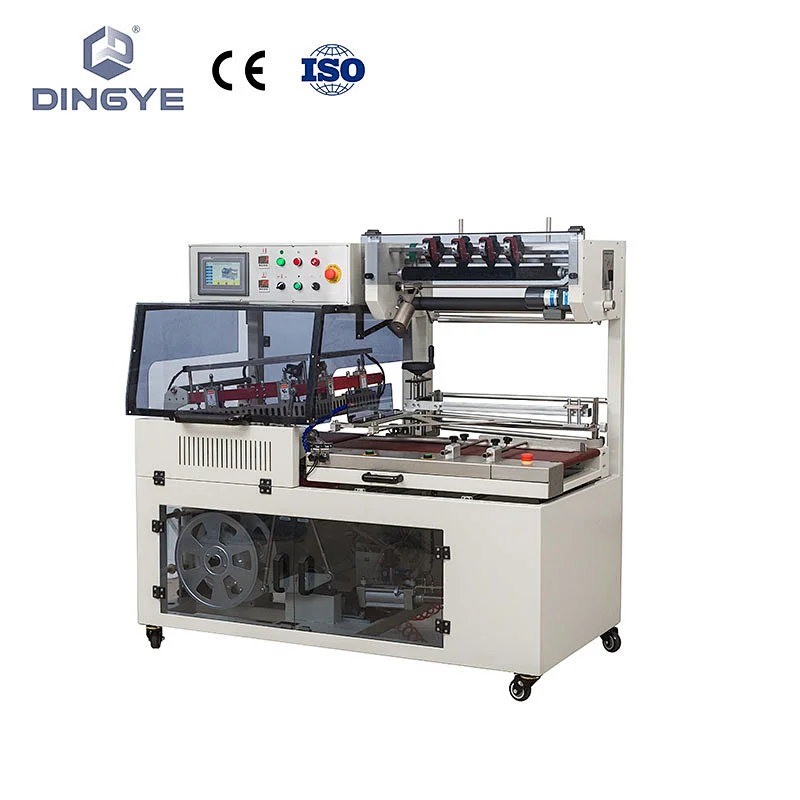

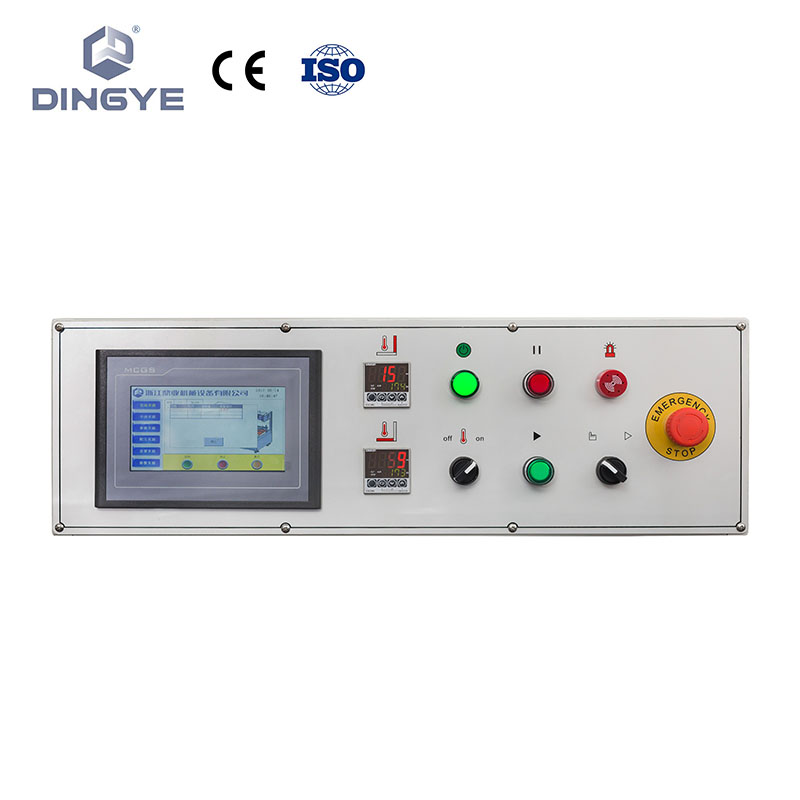

Based on DQL 5545 L sealer, add a touch screen and improve the speed. That's an intelligent type design for high requirement customers. The shrinking machine adopts a circular heating tube with a fan motor to create a perfect wind circulation system. By the way, the conveyor can be customized to 1.2m and 1.5m.
About Brand
1. Panasonic" sensors

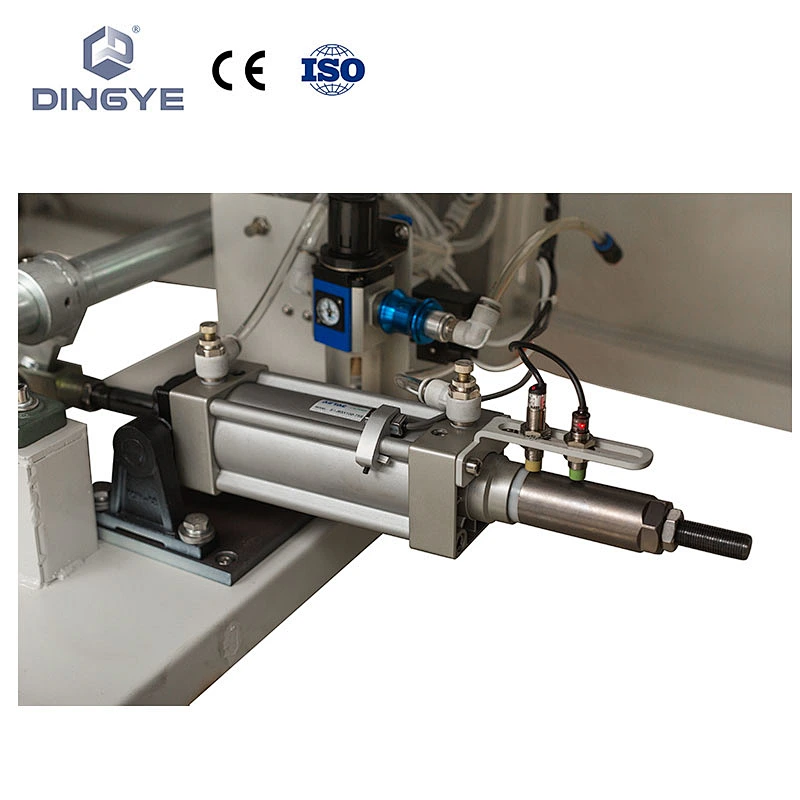

2."airtac" cylinder
3.Omron" programmable logic controller (PLC),
4."Omron" temperature controller
5."Airtech" air filter
Optional:
conveyor connecting function can work with a very small products.(≤12cm)
Specification:

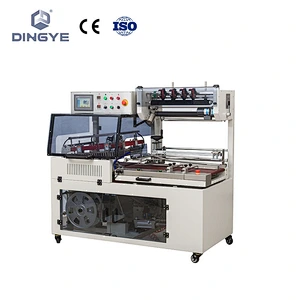

DQL5545SG:
ModelDQL5545SG
Max packing size(mm)L+2H≤550,W+2H≤450,H140
Max sealing size(mm)L550×W450
Power(KW)2.2
Capacity0-40 pcs/min
Voltage220V 50/60HZ
Sealing temperature180ºC-250ºC depends on the thickness of the film and environment temperature
The thickness of film(mm)0.015-0.05
Packing materialPOF PVC
Machine weight(kg)320
Machine size(mm)L1760×W940×H1580

DSC4525L
ModelDSC-4520DSC-4525L
Power source380V 50-60Hz380V 50-60Hz
Power12.8KW13.2KW
Conveyor speed0-16m/min0-16m/min
Tunnel size(L*W*H)1200*450*200mm1500*450*250mm
Conveyor loading10kg10kg
Machine size (L*W*H)1500*700*1260mm1800*700*1300mm
