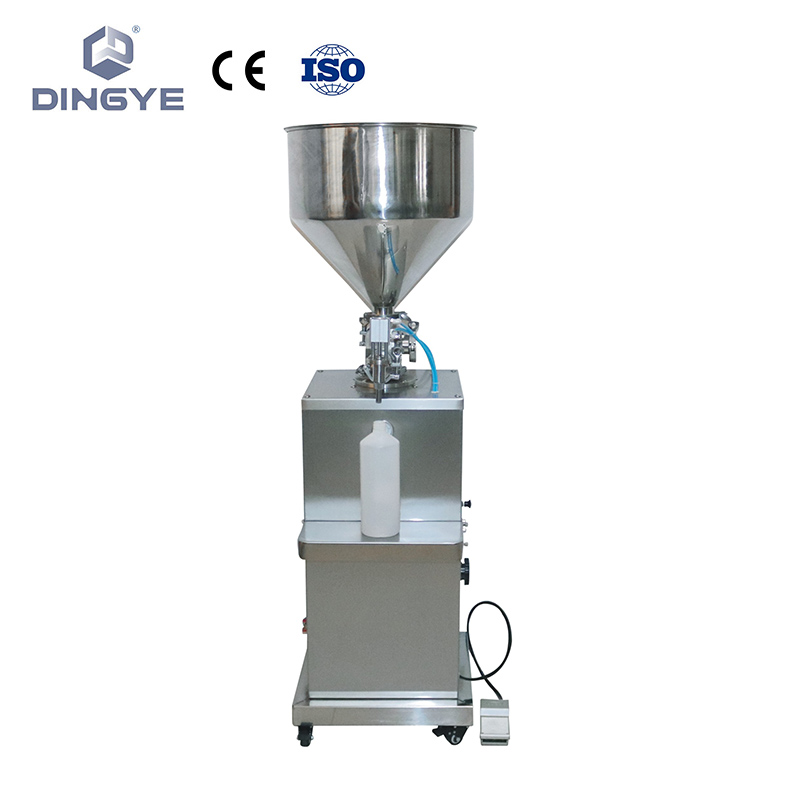

GYL-1000 Vertical Pneumatic Filling Machine
GYL-1000 Vertical Pneumatic Filling Machine

GYL-1000 Vertical Pneumatic Filling Machine

Model NO.
GYL-1000
Quantity:

Product Description


GYL series pneumatic filling machine has a wide range of uses: it is suitable for the quantitative filling of paste and liquid (5-1000kg) in daily chemical, food, medicine, chemical and other industries. The machine has reasonable structure, reliable performance and accurate quantification. The power part adopts a pneumatic structure. The shell and the part in contact with the filling are made of stainless steel, so it has anti-rust and corrosion performance. The piston is made of polyethylene. The pneumatic part adopts imported components, which meets GMP requirements and can be customized according to user needs. Adjust the filling volume and filling speed arbitrarily within a certain range.
Technicals:
ModelGYL-100GYL-300GYL-600GYL-1000
Filling volume5-100ml30-300ml60-600ml120-1200ml
Filing precision<±1.5%<±1.5%<±1.5%<±1.5%
Production capacity1-30pcs/min1-30pcs/min1-30pcs/min1-30pcs/min
With gas consumption20.1m3/min20.1m3/min20.1m3/min20.1m3/min
Equipped with air pressure0.4Mpa0.4Mpa0.4Mpa0.4Mpa
Dimensions(mm)442x440×1580442x440x1580442x440x1580442x440x15
Weight50kg50kg50kg50kg
