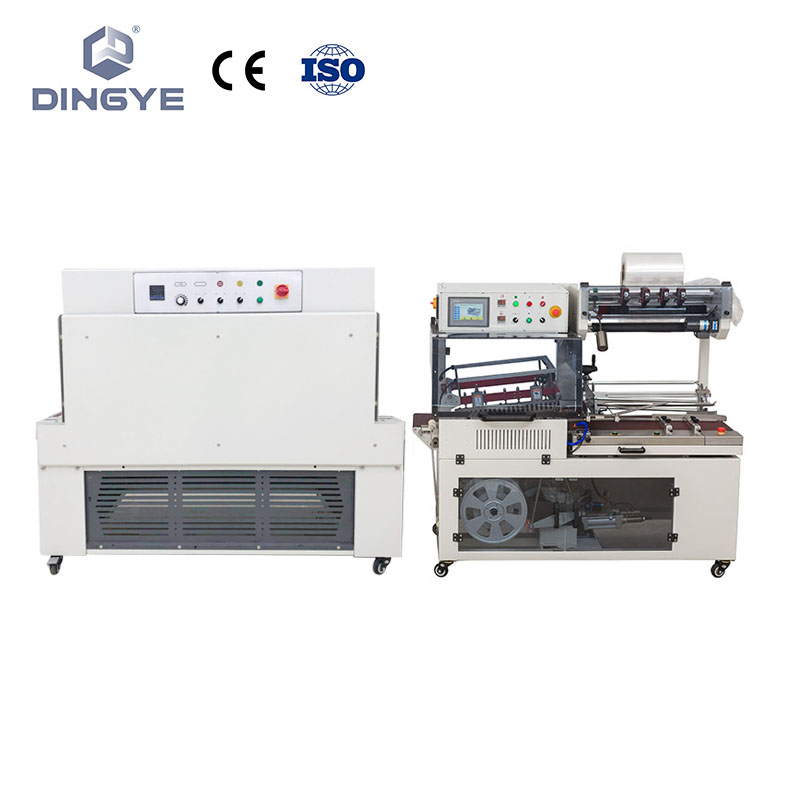

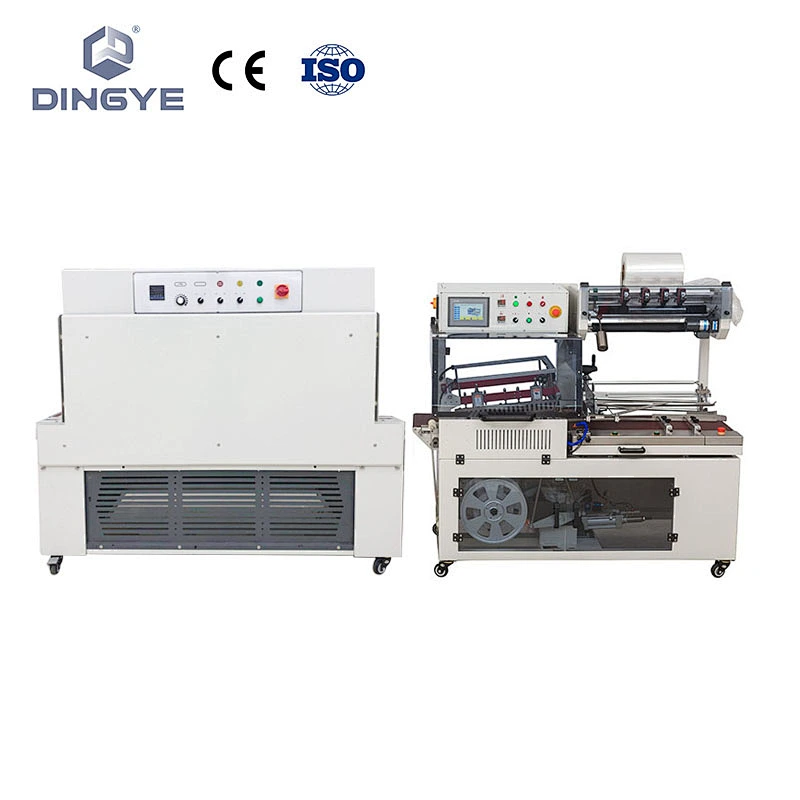

High Speed Automatic L Sealer with Shrink Tunnel
High Speed Automatic L Sealer with Shrink Tunnel

High Speed Automatic L Sealer with Shrink Tunnel

Model NO.
DQL6560G+DSA6030
Quantity:
Summarize:
 DQL 6560G L sealer, add a touch screen, and improve the speed. That's an intelligent type design for high requirement customers. The shrinking machine adopts a circular heating tube with a fan motor to create a perfect wind circulation system. By the way, the conveyor can be customized to 1.2m and 1.5m.
About Brand
1. Panasonic" sensors
2."airtac" cylinder
3.Omron" programmable logic controller (PLC),
4."Omron" temperature controller
5."Airtech" air filter
Optional:
conveyor connecting function can work with a very small products.(≤12cm)
Specification:

ModelDQL6560GDSC6030A
Max packing size(mm)W+2H+50~80≤690mm  H≤140W600×H300
Max sealing size(mm)L650×W600/
Power(KW)2.6KW26.4KW
Capacity0-40 pcs/min0-16 m/min
Voltage220V 50/60HZ220V/380V,50~60HZ
Shrink tunnel(mm)/L1500xW600XH300
Loading Weight/20kg
Sealing temperature180ºC-250ºC depends on the thickness of film and the environment temperature
 The thickness of the film(mm)0.012-0.06
Air pressure(Kg/cm2) )5-6
Packing materialPOF PVC
Machine weight(kg)400*
Machine size(mm)L2050×W1100×H1650L1810xW977xH1565
