Semi-auto L-type sealer & Shrink Tunnel

Model NO.
DFQA450&DSA4525
Quantity:

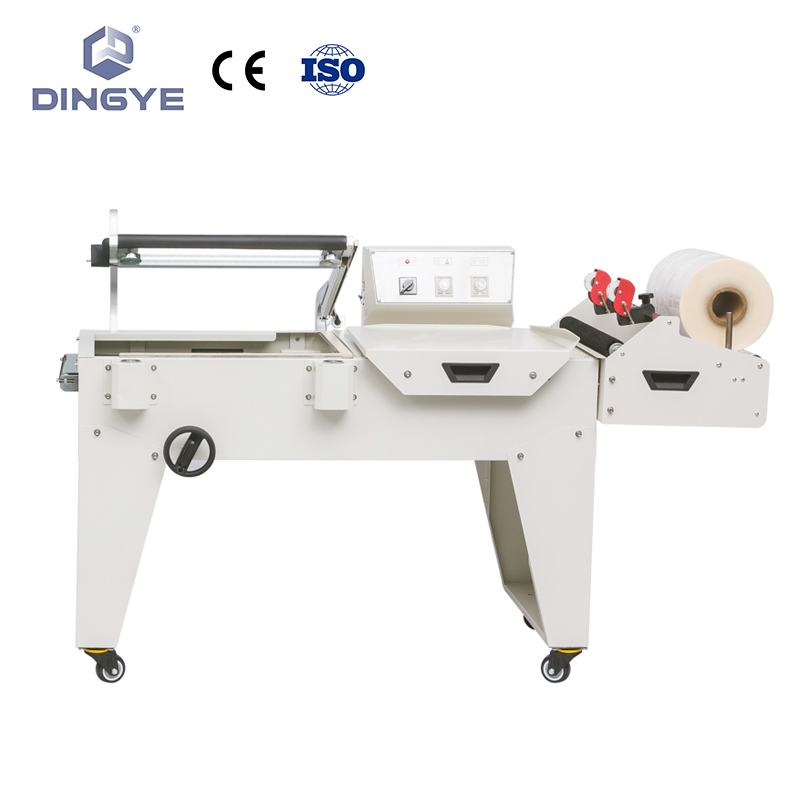

DFQA450 semi-auto L-type sealer and DSA450 shrink tunnel work together to finish seal-cut and shrink packing of film in one operation.
The electric magnet absorbs the cutting frame automatically when the frame is pressed down.
The object is automatically transmitted into a shrink tunnel through the conveyor when the film is cut.
Therefore, it has high efficiency.
It is suitable for packing boxes, toys, electronics, and so on.

Characteristic:
1. Machine adopts stick-proof heating wire to cut and seal film. No smoking of film.
2. Time of seal-cut and conveyor is adjustable according to the actual situation.
3. Down heating adjustment.
ModelDFQA450ModelDSA4525
CommodityL-type sealerCommoditythermal shrink tunnel
Power source220V 50-60HZPower source220V/50-60HZ
Heater power2KWHeater Power9kW
Conveyor speed0 -15m /minConveyor speed0 -12m /min
Max sealing size(LxW)550x450mmTunnel size(LxWxH)1000*450*250mm
Max conveyor loading25kgMax conveyor loading5kg
Machine size(LxWxH)1470x820x970mmMachine weight100kg
Machine weight98kgMachine size1260*670*1290mm
Cutting filmPOF,PVC,PPShrink filmPOF,PVC,PP
