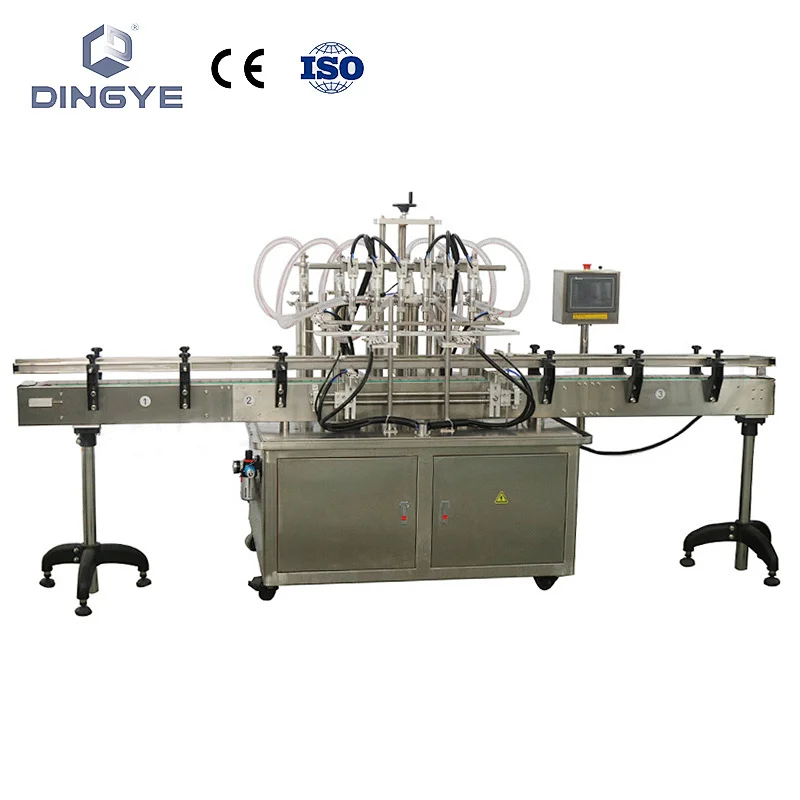

ZY-6 6 Head Automatic liquid filling machine

Model NO.
ZY-6
Quantity:

Product Description

This machine is widely used filling liquid,semifluid liquid, such as liquid soap, shampoo, oil, and so on.
PLC control; Touch screen operating

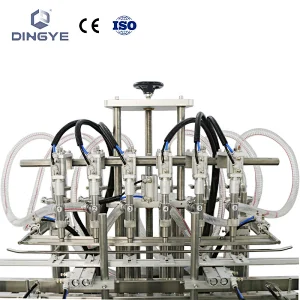

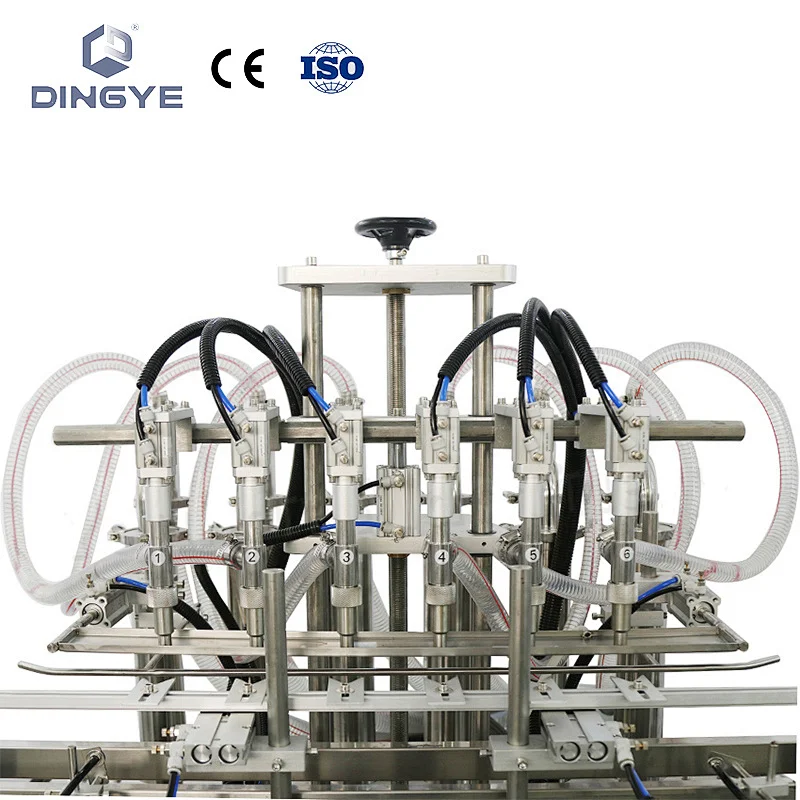

Diving filling for foam liquid, such as shampoo.
Filling volume is easy to be adjusted, suitable for different size bottle
Suitable for any shape plastic bottle, glass bottle and metal tin etc.

Model

ZY-2

ZY-4

ZY-6

ZY-8

Filling product

Liquid; water

Filling nozzles

2

4

6

8

Ideal filling range

20-100ml/50-250ml/100-500ml/200-1000ml/500-2500ml/

1000-5000ml

Filling speed (1000ml)

480B/H

960B/H

1440B/H

1920B/H

Filling precision

20-1000ml≤1%  1000-5000ml≤0.5%

Air consumption

0.17m³/min

0.25m³/min

0.25m³/min

0.36m³/min

Power supply

110V220V 50/60HZ

Power consumption

0.75kw

1KW

1KW

1KW
