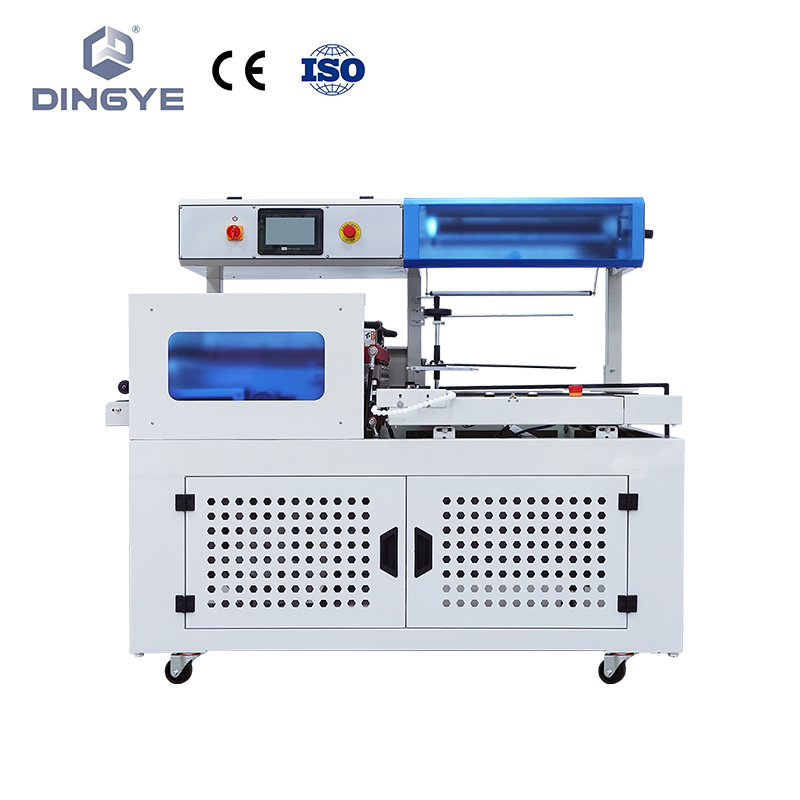

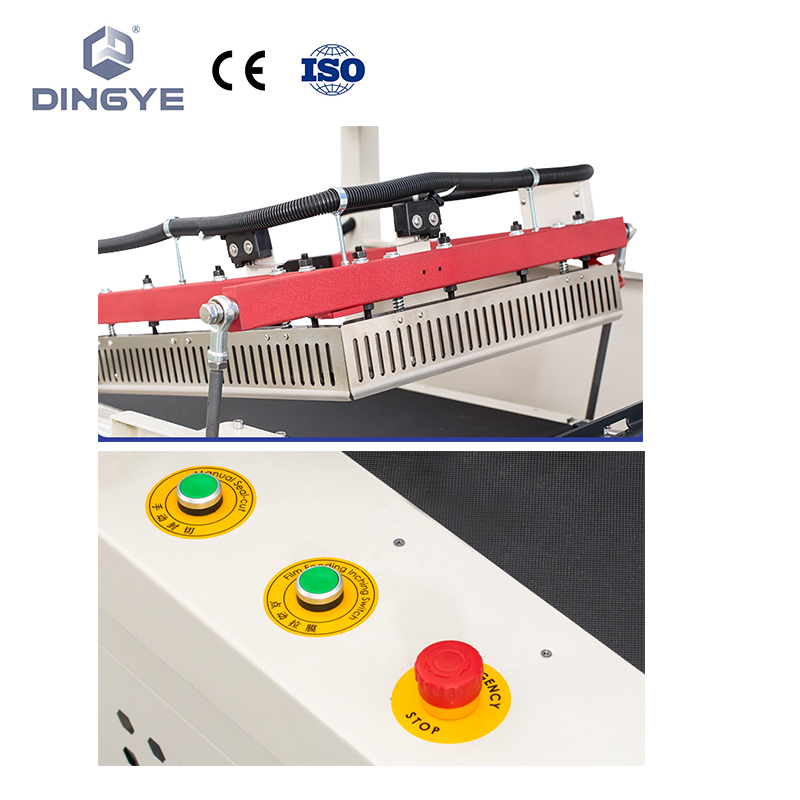

DQL5545D is an economy-model fully automatic L-bar sealer, designed to work with the DSB4522 shrink tunnel machine.
This machine is widely used for shrink packaging in food & beverage, printing, pharmaceuticals, flooring, hardware, and more industries.
Specification
Product Model | DQL5545D |
Voltage | AC220V 50Hz/60Hz |
Horizontal heating power (W) | 800 |
Vertical heating power (W) | 1000 |
Sealing temperature | It is related to the film thickness and ambient temperature, generally 180℃—250℃ |
Sealing time (sec) | 0.2-1.0 |
Film thickness (mm) | 0.015－0.05 |
Working efficiency (pcs/min) | 0-25 |
Packaging Materials | POF film |
Maximum sealing size (mm) | L550×W450 |
Maximum package size (mm) | H≤140 L+2H≤550 W+H≤330 |
Dimensions (mm) | L1680×W840×H1475 |
Machine weight (Kg) | 280 |

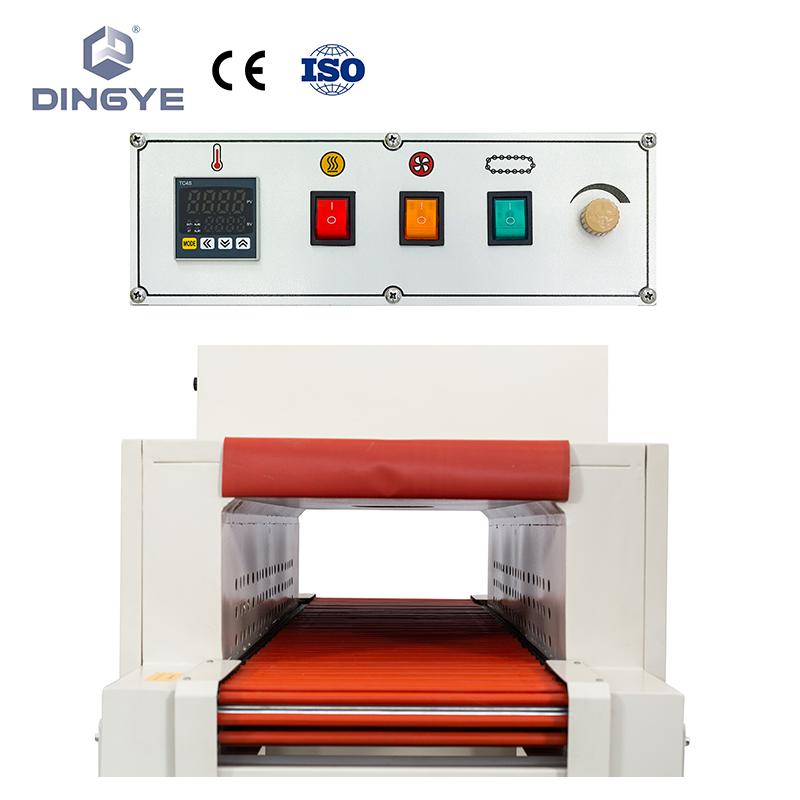

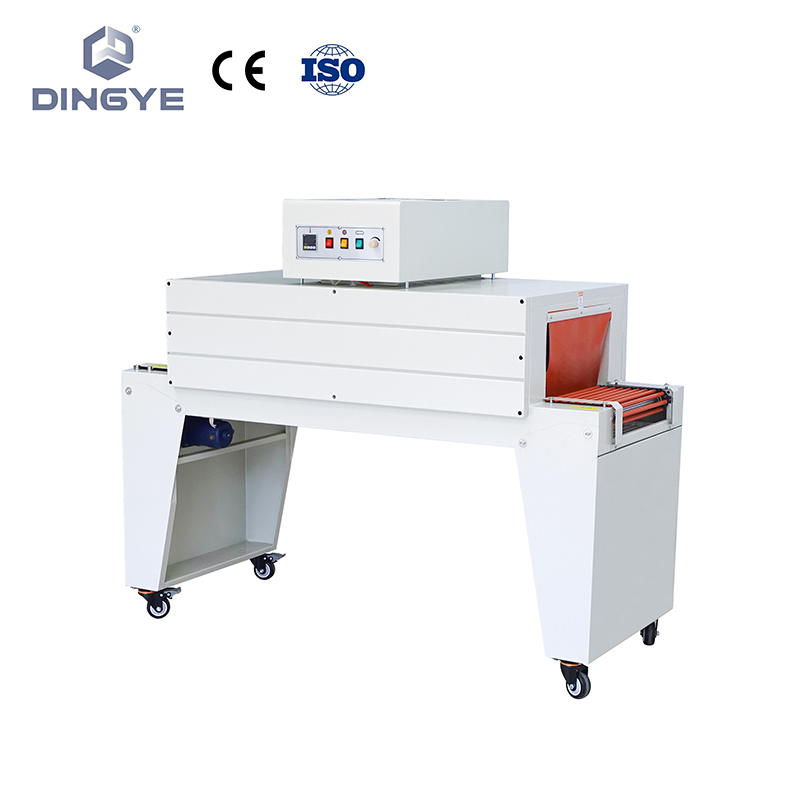

Product Model | DSB4522 |
Voltage | AC380V 50Hz |
Power (W) | 9.2kW |
conveyor speed | 0-12m/min |
tunnel size (mm) | 1200x450X220 |
Conveyor loading | 10kg |
Machine size(mm) | 1621x714x1335 |
Photos
